Item No.:
Rb-Hb-415-200W
Input Voltage:
AC 100~277V 50-60Hz
Power Factor:
>0.98
LED Chip:
CREE,Bridgelux
LED Driver:
Meanwell
Lamp Beam Angle:
45/90/120 Degrees
Power Efficiency:
>0.90
Color Index:
>80
Cct:
2700-7000k
Useful Life:
50000 Hours
Color Temperature:
Pure White
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP54
Certification:
UL
Power:
50W-500W, 300W
Usage:
Factory, Factory/Workshop
Product Description

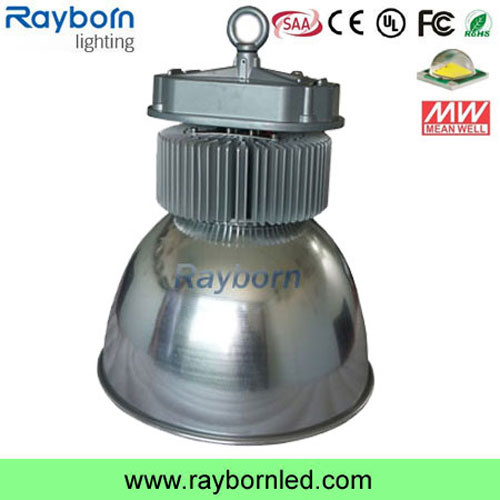

LED Warehouse Light 150W/200W/250W/300W industrial high bay led Lamp
Hi-Bay LED Lighting/High Bay Ligh Lamp
300W LED Industrial Light Main Technical Parameters
Item No.:
Rb-HB-415-200W
Input Voltage:
AC 100~277V
Freqency Range:
50Hz~60Hz
LED Chip
Bridgelux 45Mil
Power Driver:
Mean Well Driver
Power Factor:
>0.98
Power Efficiency:
>91%
LED Power
200W
LED QTY:
200PCS
LED Working Voltage:
DC 30~36V
System Consumption:
208W
LED Luminous Flux
Warm White
20000
Pure White
21000
Cool White
21500
Viewing Angle:
120degree
Centre Illuminance
Height 10M
100.3lux
Height 15M
44.6lux
Height 20M
25.1lux
Illuminance Area
Height 10M
Dia.2490cm points visible
Height 15M
Dia.3735cm points visible
Height 20M
Dia.4980cm points visible
Illuminance Uniformity:
>0.6
Color Temperature
Warm White
2700K~3500K
Pure White
4000K~5500K
Cool White
6000K~7000K
Light Distribution:
LED points visible
LED Junction Temperature:
≤115ºC
Working Temperature:
-40ºC~50ºC
Working Life-span:
50000 H
IP Grade:
IP54
Power Line:
1.0 mthree line
Connect Wire
Brown
L
Blue
N
Yellow / Green
G

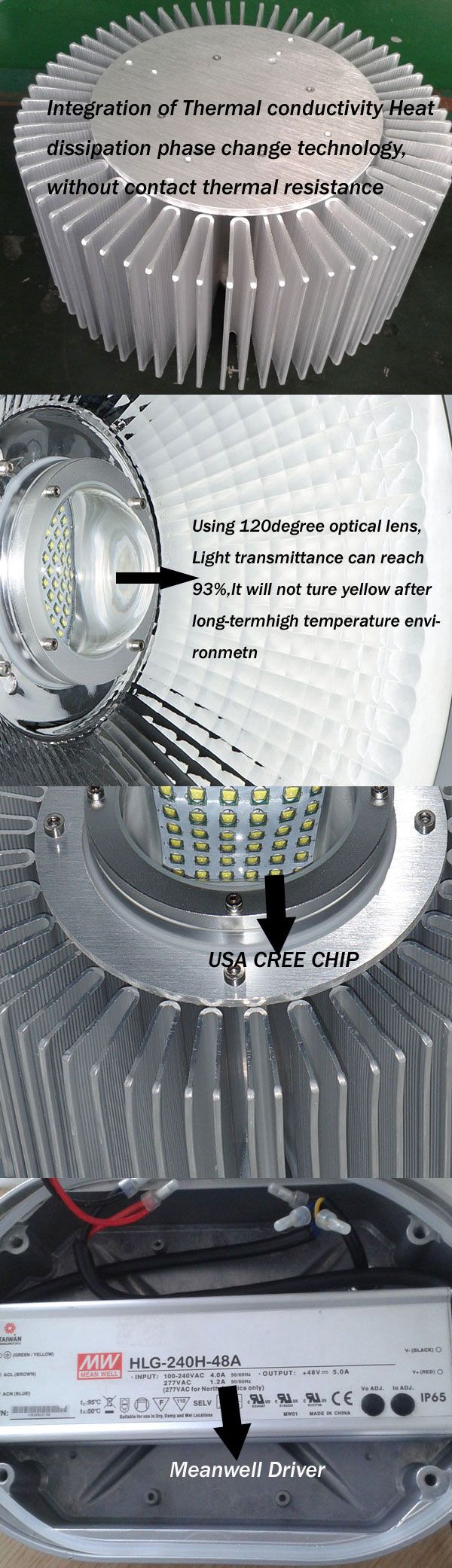

Heatsink
Integration of Thermal conductivity Heat dissipation phase change technology
Led High bay light Features:
· Integrated USA Bridgelux LED system for optimum lifetime performance
· Ideal for Box Stores, Supermarkets, Factories, Warehouses.
· Special radiator design for better heat dissipation
· Reduced energy consumption and operating costs by up to 80%.
· Maintenance free operation - lasts up to 10 times longer than conventional lighting
· Solid state design and circuitry
· Great for shock and high vibration environments
· 50-80% reduced energy usage. Save money on your utility bill
· No humming or flickering.
· Cool beam - Does not produce Ultra Violet (UV) light or IR, reduces air conditioning loads.
· Unique design with anodized silver housing for cooler operation and extended lamp life.
· Environmentally friendly fully recyclable, no mercury or other hazardous materials.
LED High bay light Applications:

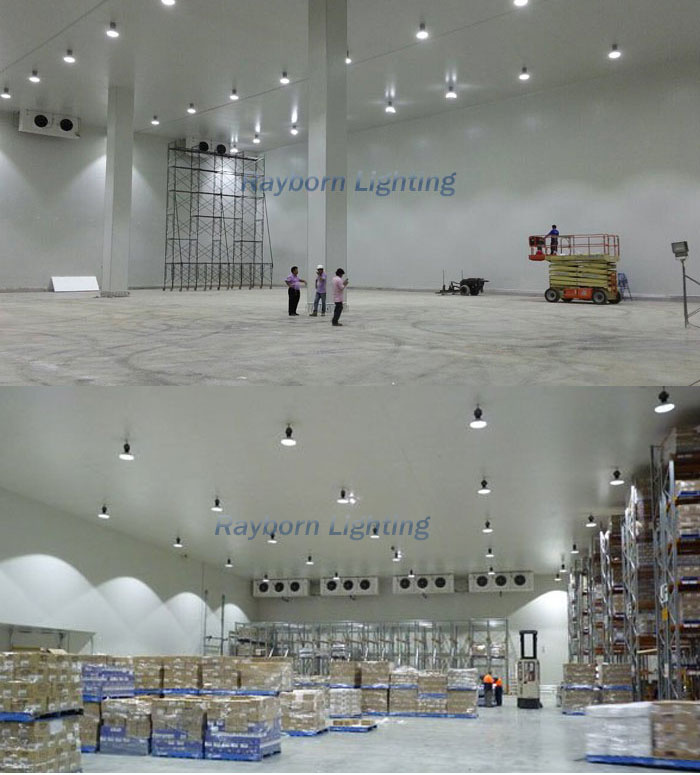

LED High Bay Lights widely used for Indoor and outdoor places: Factories, workshops, warehouse, toll stations, gas stations, stadiums, big supermarket, exhibition, commercial building, stadium hall, parking building etc.
Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.
With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
