| Prod Model: |
KNGK-150W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED High Bay Light: |
100W/150W/200W |
| Chip Brand: |
Citizen COB |
| Driver Brand: |
Meanewll Driver |
| Warranty: |
5 Years |
| Certificate: |
UL/cUL/Dlc/SAA/CE/RoHS/PSE |
| Application 1: |
Workshop, Factory, Warehouse, Highway Toll Station |
| Application 2: |
Gas Station, Large Supermarkets, Exhibition Halls |
| Application 3: |
Mall, Conference Room, Market |
| Established: |
in 1997 |
| Advantage: |
a LED Encapsulation Factory&a Die Casting Factory |
| Lamp Body Material: |
Aluminum Alloy |
| IP Rating: |
IP65 |
| Certification: |
VDE |
| Color Temperature: |
2700-7000k |
| Color: |
Silver/Black |
| Beam Angle: |
45°/90°/120° |
| LED Chips: |
Citizen |
Product Description

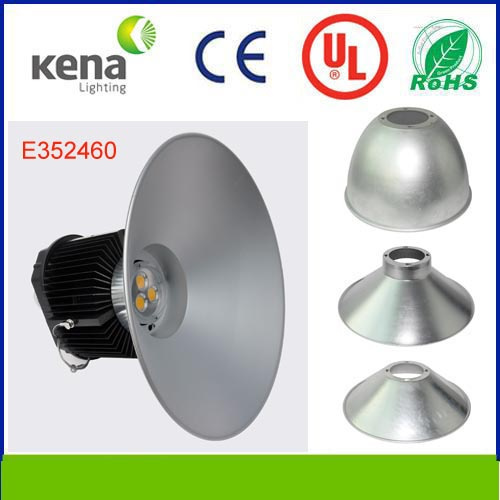

UL apprved. LED high bay light 100W/150W/200W. Made in china. Shenzhen
High power LED high bay 150W with bridgelux and 5 years warranty and passed UL CE IP65, RoHS, SAA certification
We have more than 15 years experience for LED production. We have 3 factory, one UL LED bulbs factory, one LED produciton factory, and one LED fittings factory, and one big mould factory for all casing. We have many advantage that others don't have. Experience, quality and cost.
Features
1) High efficiency & energy saving. Under the condition of the same llumination, , it saves more than 67% energy compared with the traditional lamp.
2) Long life span, using semiconductor chip as the light resource, the life can be over 50, 000hrs.
3) No UV & IR. It won't distribute ray radiation.
4) Eco-friendly, No Hg & Xe, or other harmful element. Recyclable, also it won't generate EMI.
5)High performance external constant current drivers, no stroboscopic, good for eyesight protection;
6) Patent integrated light sources, high quality Bridgelux chip, high Light effects, high color rendering index.
7) Advanced thermal design, Integration with Moule-shaped
Integration with Moule-shaped, low thermal resistance, high heat dissipation
Efficiency.
8) Easy for installation
9) Protection level reaches IP65.
Applications
1) Workshop, factory, warehouse, highway toll station.
2) Gas station, large supermarkets, exhibition halls, stadiums.
3) Mall, conference room, market.
Power parameters
| Input Voltage/Frequency | 100-240VAC/50-60Hz | | Input Current(Typ) | 0.4A/115VAC 0.2A/230VAC | | Output Voltage | 28-35V | | Output Current | 1.5A | | Efficiency(Typ) | 87% | | Power Factor(Typ) | PF>0.98/115VAC PF>0.95/230VAC |
Lighting parameters| LED Chips Quantity | 1 Pcs | | LED Consumption | 150W | | System Consumption | 157W | | LED Luminous Efficiency | 80-100Lm /W |
|
|
| Lamp's Initial Flux | 12000-15000Lm | | Color Temperature | 2700K~7000K | | Lamp's Luminous Efficiency | ≥70Lm /W | | Lumen Maintenance | 70%(50000Hrs) | | Color Rendering Index | Ra≥75 | | Operating Temperature | -40~+50 | | Storage Temperature | -40 ~+70 | | IP Grade | IP65 | | Life-span | 50000Hrs | | Materials | Aluminium | | The color of the lamp shell | Black/Silver | | Mounting | Ceiling-mounted |
|
|
|
|
Shenzhen Kena Industry Co., Ltd. is a leader in the high-tech design, R&D and manufacture of LED encapsulation, project lights and aluminum casting for lamp fixtures. With our semiconductor lighting technology, we aim to provide our customers with high efficiency, energy-saving and stable encapsulated LEDs, as well as the perfect design for a wide variety of needs. Our encapsulated LED product line uses DIP LED, SMD and high power LED technologies. Our various products range from street lights, flood lights, spot, high bay and tunnel lights, as well as tube, strip and ceiling lights all the way down to a basic LED bulb. We also design, produce and process related products and made-to-order encapsulated LEDs.
Kena, with innovation and R&D at its core, believes that providing professional LED lighting solutions is its duty. The Kena brand has benefited greatly through its leadership in LED manufacturing and advances in independent intellectual property, following many years of development and interacting closely with customers. Kena has researched and designed LEDs to meet and exceed market demands. With LEDs rapidly becoming the much-needed replacement for traditional incandescent lamps, Kena's cost-effective manufacturing process allows competitive prices for competitive customers.
Kena is known for its ability to innovate in the LED industry; Its strong brand image; Complete industry chain advantage; Advanced production and business cooperation experience; And its professional, scientific and operational management teams. Together these advantages allow for efficient, energy saving, and stable encapsulated LEDs and LED projects lights for our customers, and allowing investors to feel confident in consistently strong returns.
