| Prod Model: |
KN-SL420-100W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black/White |
| Light Source: |
LED Light |
| Chip Brand: |
USA Bridgelux Chip |
| Driver Brand: |
Meanwell Driver |
| Warranty: |
5 Years |
| RGB LED Street Light: |
60W/80W/100W |
| Patent LED Street Light: |
Kena |
| 18 Years Experence For LED Production: |
Kena |
| Working Temperature: |
-30 Degree to 55 Degree |
| Lamp Body Material: |
Aluminum Alloy |
| Power: |
60-100w |
| Application: |
Highwell, City Street, Pavement, School |
| IP Rating: |
IP65 |
| Certification: |
UL, CE, IP65, RoHS, SAA |
| With Light Source: |
With Light Source |
| LED Chips Brand: |
Bridgelux |
| Power Supply: |
Meanwell |
| Color Temperature: |
2700-7000k |
| Input Voltage: |
100-240VAC |
Product Description

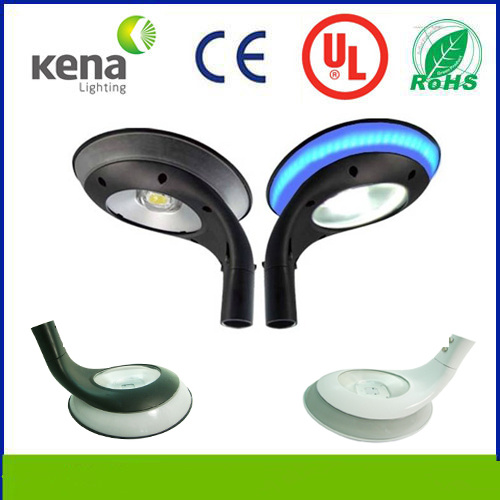

Solar high quality LED Street Light with 100W
General Description : 1) KNJD420 street light is a green product of our company, with new type integrated LED light source, high purity aluminum plating reflector,
2) high thermal conductivity aluminum lamp shell and radiating body, High strength toughened glass cover,
3)high efficient constant pressure constant current;Compared with the traditional street light,
4)KNSL-JD420 has lots of unique features, such as more efficient, energy-saving, more security and environmental, long lifespan, quicker response and higher CRI,
5) KNSL-JD420 could be used in the street, square, city, scenery area and so on.
6) It will be the best to replace traditional high pressure street light, besides.Application
Urban street, sidewalk, square,park, yard, residential district etc.
Features
1.Using the independent intellectual property rights encapsulates the high power LED, which can save Electricity more than 65% than the traditional street light.
2.The first radiator and lamp case integration design, LED directly to the shell and is tightly connected with the Ideal cooling effect, and fully guarantee the LED life.
3.Shell encapsulated with aluminum alloy, which can effective cooling, prevent water, and meet IP65.
4.No bad glare, stroboscope or startup delay, eliminating the disadvantage of the traditional street light.
5.Environmental-friendly without contamination, with no Lead, Hg or any other pollution elements included, No pollution to the environment.
6.Wide Voltage(AC100-240V), High efficiency, constant current and constant voltage green switch power(or DC/DC switch power supply)
7.Could have a perfect combination with solar and wind energy, and could fully develop its advantages like environment-friendly and energy-saving.

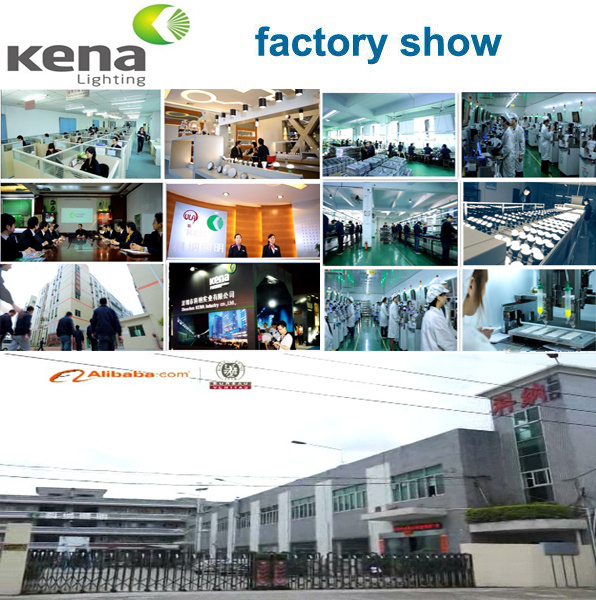

Company introduction
Shenzhen KENA Industry CO.,LTD.
ADD:Adds:NO.9-10 Building, Xialang park,Heshuikou Village,Guongmin Town, Baoan District,Shenzhen, China.
Shenzhen KENA ,founded in 1997,Covers an ares of more than 30,000 m²,and boasts over 500 employees. More than 18 years for experience for LED production. Have 2 factories,one LED encapsulation factory,and one die casting factory. Have huge markets in Europe for LED flood light,LED hight bay,LED tunnel light and LED street light.DULUCE place 4 containers to us every month from different conuntrys.
Dimension
Shipment
1.FCL - Full Container Loading
2.LCL - Less Container Loading
3.EXPRESS
4.Air Shipment
Payment Terms
1.T/T
2.L/C
3.Western Union
Welcome you to contact me with anything for our further communications...Thank you :)
Power parameters
| Input Voltage/Frequency / | 100-240VAC/50-60Hz | | Input Current(Typ) () | 0.56A/115VAC 0.28A/230VAC | | Output Voltage | 28-36V | | Output Current | 1.8A | | Efficiency(Typ) () | 90% | | Power Factor(Typ) () | PF>0.98/115VAC PF>0.95/230VAC |
Lighting parameters | LED Chips Quantity LED | 1 Pcs | | LED Consumption LED | 60W | | System Consumption | 66W | | LED Luminous Efficiency LED | 90-110Lm /W | | Lamp's Initial Flux | 4350 Lm | | Color Temperature | 2700K~7000K | | Lamp's Luminous Efficiency | ≥80Lm /W | | Lumen Maintenance | 70%(50000Hrs) | | Color Rendering Index | Ra≥75 | | Operating Temperature | -25 ~+55 | | Storage Temperature | -25 ~+65 | | IP Grade | IP65 | | Life-span | 50000Hrs | | Materials | Aluminum | | The color of the lamp shell | White | | Mounting | Pole installation |
|
|
|
Shenzhen Kena Industry Co., Ltd. is a leader in the high-tech design, R&D and manufacture of LED encapsulation, project lights and aluminum casting for lamp fixtures. With our semiconductor lighting technology, we aim to provide our customers with high efficiency, energy-saving and stable encapsulated LEDs, as well as the perfect design for a wide variety of needs. Our encapsulated LED product line uses DIP LED, SMD and high power LED technologies. Our various products range from street lights, flood lights, spot, high bay and tunnel lights, as well as tube, strip and ceiling lights all the way down to a basic LED bulb. We also design, produce and process related products and made-to-order encapsulated LEDs.
Kena, with innovation and R&D at its core, believes that providing professional LED lighting solutions is its duty. The Kena brand has benefited greatly through its leadership in LED manufacturing and advances in independent intellectual property, following many years of development and interacting closely with customers. Kena has researched and designed LEDs to meet and exceed market demands. With LEDs rapidly becoming the much-needed replacement for traditional incandescent lamps, Kena's cost-effective manufacturing process allows competitive prices for competitive customers.
Kena is known for its ability to innovate in the LED industry; Its strong brand image; Complete industry chain advantage; Advanced production and business cooperation experience; And its professional, scientific and operational management teams. Together these advantages allow for efficient, energy saving, and stable encapsulated LEDs and LED projects lights for our customers, and allowing investors to feel confident in consistently strong returns.
