| Prod Model: |
KNSDD600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
200W |
| Color Of The Fixture: |
Black or Grey |
| Chip Brand: |
Bridgelux Chip |
| Driver Brand: |
Meanwell Driver |
| Certification: |
VDE |
| Color Temperature: |
Pure White |
| Warranty: |
3 Years |
| Lamp Body Material: |
Aluminum Alloy |
| IP Rating: |
IP65 |
Product Description

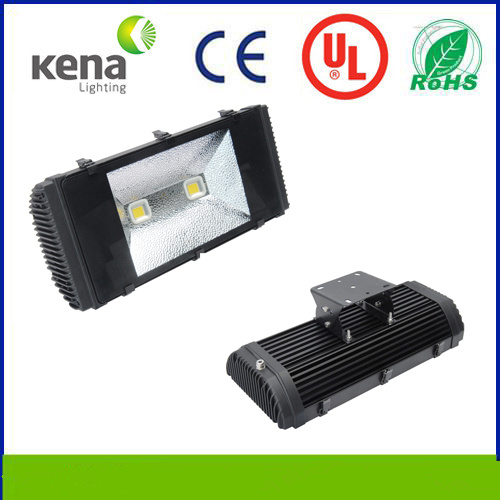

200W LED Outdoor Light with UL,SAA. Meanwell Driver.Bridgelux chip.5 years warranty.
UL File number is E352460
Advantage: active driver box. Driver box on the both sides can be opened easily and then it will be convinient for replacing driver. Upgrade of old version floodlight.
1) High efficiency and energy-saving, Lamp efficiency could be up to 90%, saving more than half energy than the traditional light.
2) Aluminum radiator, better of the effect of heat dispelling after the process of anodic oxidation. radiate heat though Shell cooling wing and air convection, and could guarantee more than 50000hs lifespan.
3)The lamp use aging silicone rubber seal belt to avoid water and dust, and have passed IP65.
4) Environment Friendly, and no bad glare, stroboscope or startup delay, eliminating the disadvantage of the traditional tunnel light.
5) High efficiency constant voltage and constant current Driver, together with the other protection enhance the safety of the products.
6) Wide range of application, easy to install and low maintenance cost.Applications:
Tunnel, Train, Archway of Bridge, culvert, Bus Station, Dock, underground parking garage, all kinds of Stadium, Square, Billboard, Big Space, Architecture and so on.Date Sheet:
1) Factory Name :Shenzhen KENA Industry CO.,LTD.
2) ADD:Adds:NO.9-10 Building, Xialang park,Heshuikou Village,Guongmin Town, Baoan District,Shenzhen, China.
3) Shenzhen KENA ,founded in 1997,Covers an ares of more than 30,000 m²,and boasts over 500 employees.
4) More than 16 years for experience for LED production.
5) Have 4 factory,one UL LED bulbs factory,one LED production factory,and one LED outdoor fittings factory,and one big mould factory for all casing.
6) Have huge market in Europe for LED flood light,LED hight bay,LED tunnel light and LED street light.DULUCE place 4 containers to us every month from different conuntrys.
Shipping Terms
1.FCL - Full Container Loading
2.LCL - Less Container Loading
3.EXPRESS
4.Air Shipment
Payment Terms
1.T/T
2.L/C
3.Western Union
Welcome you to contact me with anything for our further communications...Thank you :)
Attn:Bella
| Model Number | SDD-600-100W | SDD-600-120W | SDD-600-140W |
| LED Quantity | 2 PCS |
| led working Voltage | DC30~36V Typ:DC31.0V |
| Led Consumption | 100W(50W*2) | 120W(60W*2) | 140W(70W*2) |
| System Consumption | 118±2W | 131±2W | 156±2W |
| Led Luminous Efficiency | 90-110Lm /W Typ: 95Lm /W |
| Led Initial Flux | 9000-11000Lm | 10800-13200Lm | 12600-15400Lm |
| Junction Temperature | ≤80SDD-600 floodlight type is a kind of tunnel light encapsulated with high power led, it breaks traditional appearance, simple structure, streamlined design and best Integration heat dissipation function. The shell using the high pure aluminum heat sink, 5mm high strength toughen glass cover and High purity aluminum reflector. Besides we use high efficiency constant current source and 2pcs 50W high power LED (Imported high brightness Epistar), which were encapsulated with our independent intellectual property rights.
|
| Color Temperature | 2700~7000K Typ:5500K | 2700~7000K Typ:5000K | 2700~7000K Typ:5500K |
| Lamp's Luminous Efficiency | ≥80Lm /W | ≥82Lm /W | ≥82Lm /W |
| Illumination Uniformity | >0.68 |
| Lumen Maintenance | 70%(50000Hrs) |
| Color Rendering Index | ≥75 |
| Light Distribution | Please refer to attached Light distribution curve above | Please refer to the attachment test report
| Please refer to attached Light distribution curve |
| Light Design | LED+ reflectors with twice light distribution |
| IP Grade | IP65 |
| Life-span | ≥50000Hrs |
| Appliance Class | Class I |
| Lamp Body Material | Pure Aluminium |
| The color of the lamp shell | Black/Grey |
| Certification | CE\UL/SAA |
