| Prod Model: |
KN-GKUFO358-150W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| The Color Temperature: |
3000k-6500k |
| Input Voltage: |
90-305VAC |
| Frequency: |
47-63Hz |
| Power Factor: |
>0.95 |
| Size Of The Lamp: |
358*358*183mm |
| Size Of The Package: |
450*450*280mm |
| Net Weight: |
6kg |
| Gross Weight: |
7.8kg |
| Color: |
Black/Grey |
| Driver Working Temperature: |
-40 Degree+60 Degree |
| Color Temperature: |
Cool White |
| Lamp Body Material: |
Aluminum Alloy |
| IP Rating: |
IP65 |
| Certification: |
VDE |
Product Description
General Description

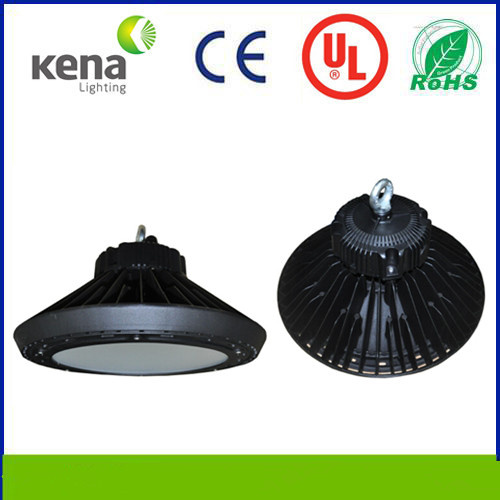

GKUFO358 series LED high bay light is the application of new high thermal conductivity aluminum
lamp housing ,Philips LED and MEAN WELL HBG driver. Compared with the traditional industrial and
mining lamp, LED high bay light has the following advantages: energy saving, low carbon and long life,
good color rendering, response speed quickly
Features
1.New high thermal conductivity aluminum lamp housing,the reflector and lamp housing corporate a.
forming a single body which reduce transportation costs
2.Philips LUXEON 3030 LED(LM80) , high luminous efficiency, high color rendering index.
3.New external driver, easy to heat dissipation, improve driver service life..
4.Light health, the light does not contain UV and IR, do not produce the ray radiation.
5.Green pollution-free, no lead, mercury or other elements of environmental pollution.
6.High performance constant current driver, no stroboscopic, be helpful for protecting eyesight.
7.Prevent water, clear fog, avoid liquid condensation, waterproof class reached IP65.
Applications
Factory, gymnasium, lighting decoration, squares, airports, warehouse, shopping mall , ect.
Technical Parameters
Power parameters
| Input Voltage/Frequency | 90-305VAC/47-63Hz |
| Input Current | 0.65 A(230VAC) |
| Output Voltage | 48V |
| Output Current | 0~3.3A |
| Power Efficiency | >93% |
| Power Factor | PF>0.98/±115VAC
PF>0.95/230VAC
PF>0.93/277VAC |
Lighting parameters
| LED Chips Quantity | 154 PCS(Philips LUXEON 3030-7C22B ) |
| LED Consumption | 135W |
| System Consumption | 150±5W |
| LED Luminous Efficiency | >120Lm/W |
| Lamp's Initial Flux | >16500Lm |
| Color Temperature | 2700K,3000K,3500K,4000K,
5000K,5700K,6500K |
| Lamp's Luminous Efficiency | ≥100Lm /W |
| Lumen Maintenance | 70%(50,000Hrs) |
| Color Rendering Index | Ra≥70 |
| Light Design | LED+ Glass |
