SMD Led High Bay Light 150WGeneral DescriptionGKN series LED high bay light is the application of new types of phase-change heat sinks ,Philips LED
and MEAN WELL HBG driver. Compared with the traditional industrial and mining lamp, LED high bay
light has the following advantages: energy saving, low carbon and long life, good color rendering,
response speed quickly.

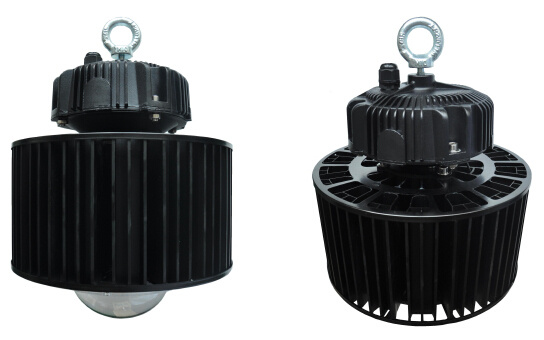

Product PicturesFeatures1.New phase-change heat sinks rapidly reduce the temperature of the LED chips.
2.Philips LUXEON 3030 LED , high luminous efficiency, high color rendering index.
3.Long life, using semiconductor chip as the light resource, the life can be over 50,000hrs..
4.Light health, the light does not contain UV and IR, do not produce the ray radiation.
5.Green pollution-free, no lead, mercury or other elements of environmental pollution.
6.High performance constant current driver, no stroboscopic, be helpful for protecting eyesight.
7.Prevent water, clear fog, avoid liquid condensation, waterproof class reached IP65.
ApplicationsFactory, gymnasium, lighting decoration, squares, airports, warehouse, shopping mall ,free way, intersection, billboard, landmark lighting, ect.
Technical Parameters
Power parametersInput Voltage/Frequency | 90-305VAC/47-63Hz |
Input Current | 0.65 A(230VAC) |
Output Voltage | 48V |
Output Current | 0~3.3A |
Power Efficiency | >93% |
Power Factor | PF>0.98/±115VAC PF>0.95/230VAC PF>0.93/277VAC |
Lighting parametersLED Chips Quantity | 161 PCS(Philips LUXEON 3030-7C23B ) |
LED Consumption | 135W |
System Consumption | 150±5W |
LED Luminous Efficiency | >120Lm/W |
Lamp's Initial Flux | >16500Lm |
Color Temperature | 2700K~6500K TYPE 5000K |
Lamp's Luminous Efficiency | ≥90Lm /W |
Lumen Maintenance | 70%(50,000Hrs) |
Color Rendering Index | Ra≥80 |
Light Design | LED+ reflectors with twice light distribution |
Light Distribution | LED+ reflectors with twice light distribution |
View Angle | 45°/70°/120° at the beam angle 50% (Note3) |
Driver Working Temperature | -40ºC ~ +60ºC |
Storage Temperature | -40ºC ~ +70ºC |
IP Rating | IP65 |
Life-span | >=50,000Hrs(Note4) |
Materials | Aluminum |
The color of the lamp shell | Black |
Mounting | Lifting type |
Note1: Light optic with a little deviation for different color temperature LED ,deviation value≤5%.
Note2: All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºC of ambient temperature.
Note3: There are 25 degrees,60 degrees,90 degrees of reflector.
Note4: Working -10~+25ºCof ambient temperature, RH10-80%, heat dissipation is good.

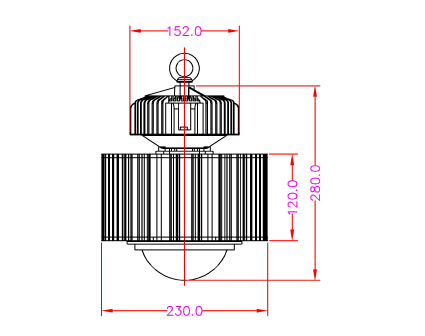

DimentionPackingLamp package size(L*W*H) | 565x290x382(mm) | 280x280x315(mm) |
Lamp weight | 4.5Kg±0.25Kg | 4.5Kg±0.25Kg |
Qty weight | 11Kg±0.5Kg | 5.2Kg±0.5Kg |
Qty/carton | 2PCs | 1PC |
