Prod Model: |
3mm, 4mm, 5mm, 6mm |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Delivery Time: |
25~30working Days |
Warranty: |
2 Years |
OEM: |
Yes |
Cabinet Size: |
576X576mm |
Tube Chip Color: |
Full Color |
Display Function: |
Video Display |
Pixel Configuration: |
1R,1G,1B |
Scanning Mode: |
1/16 Scan |
Display Type: |
LED Video Display |
Application: |
Shopping Guide |
IP Rating: |
IP40 |
Certification: |
ETL |
Pixel Pitch: |
3mm |
Pixel Density: |
111110 Pixels/Sqm |
System Operating Platform: |
Win XP / Win 7 / Win 8/Win10 |
Product Description

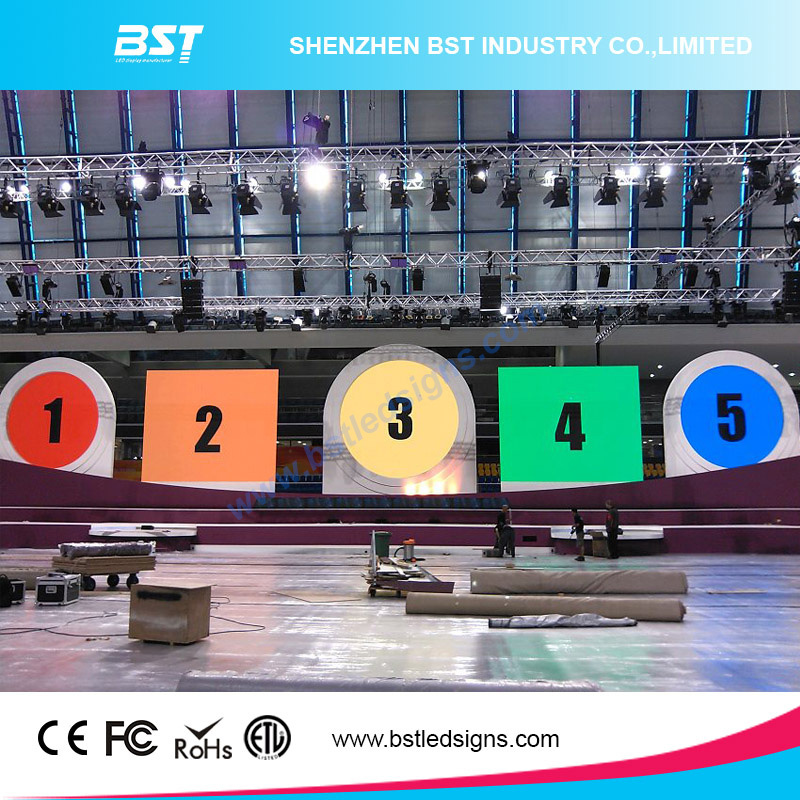

P3mm Indoor Rental Full Color LED Display Screen
Application
BST SIGN's LED display screen can be widely used in retail store, pubs and hotels, shopping center, TV and broadcasting center, worship, theater, auto show, award and corporate show, concert touring, rental and staging, festival and sports event, art exhibition, press conference etc.
Feature
1. Standard cabinet design and component design
The size of this LED Screen cabinet is only 576x576mm, adopt industry-standard connector. Reduces maintenance time and costs.
2. Lightweight, ultra slim and Seamless splicing
The weight of this LED screen cabinet is only 8kg, thickness is only 65mm, very easy to transport, stock and install. Seamless splicing advance video performance.
3. Fanless design, silent operation low heat generated
Low voltage input, low heat generated and fanless design, advance LED Screen reliability.
4. Wide Viewing angles, High contrast ratio
Horizontally 140 degree, Vertically 140 degree wide viewing angles
Specification
Model | BST-P3-I |
Pixel Pitch | 3mm |
Unit Size | 576mmx576mm |
LED Type | SMD2121 |
Pixel / Unit | 192*192 |
Unit Weight | 8kg |
Viewing Angle(H/V) | 140°/140° |
Application | Storage-40~60° C, Working-20~50° C |
Protection Level(Front/Rear) | IP40/IP21 |
Power Consumption | 300w/m2 |
Driving | 1/16 Scan |
Frame Refresh | ≥ 60Hz |
Refresh Rate | >1500Hz |
Processing | 16bit |
Brightness | >1200nits |
Power Supply | AC 110/220±10%, 50~60Hz |
MTBF | ≥ 1, 000 Hours |
Life Span | ≥ 50, 000 Hours |
Pixel Failure | < 0.0003 |
We are a full range manufacturer and LED display solution provider and its ancillary systems worldwide since 2009, headquartered in Shenzhen with a 6000 square meter Production state of the art facilities to cover international demands. We provide a one-stop shopping in the design, production, and distribution of LED display and solution for our domestic and global clients.
Our products Cover indoor, outdoor, fixed, rental and creative LED Solutions for various applications including sport, advertisement, concert, shopping mall, stadium, exhibition or any other indoor and outdoor events that comes to your imagination.
We strictly follow ISO9001: 2008 quality management system and passed CE, FCC, UL, RoHS, CCC etc. All of these factors ensure high quality LED products and effective services.
