Delivery Time:
25~30working Days
Warranty:
2 Years
OEM:
Yes
Cabinet Size:
1280X960mm
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
220W / m²
Display Type:
LED Video Display
Application:
Advertising
Certification:
ETL
Pixel Pitch:
10mm, 16mm, 20mm
Pixel Density:
10000dots/Sqm, 3906dots/Sqm, 2500dots/Sqm
Scanning Mode:
1/4 Scan, 1/2 Scan, Static Driving
Product Description
Front Service Outdoor Full Color LED Display for Advertising
Key Benefits

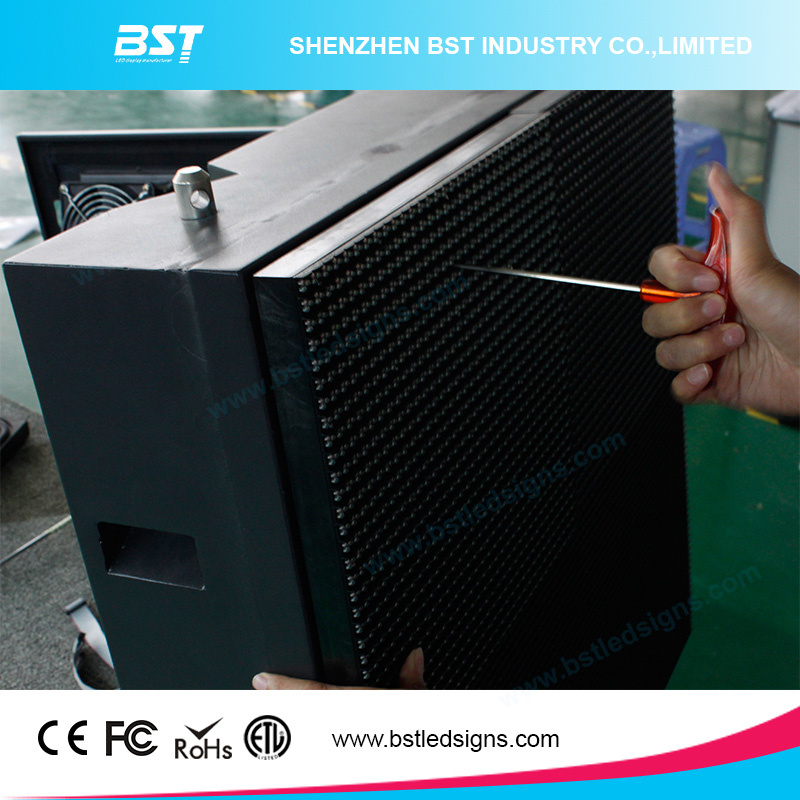

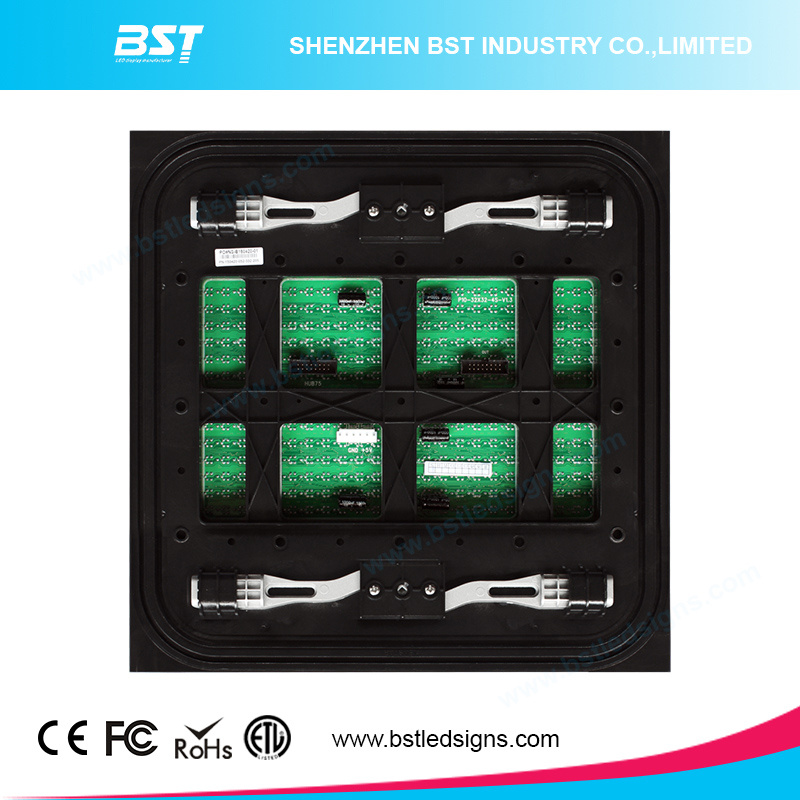

1. Broad viewing angle; 2. Frame-free installation; 3. Front and rear side maintenance. 4. High brightness, visible even with direct sunshine; 5. High waterproof and dustproof, IP65 both front and rear side 6. Having good lightening accordance and no mosaic; 7. Having large viewing angle: Getting vivid effect within any position of the viewing range; 8. Front service module design, which reduce the cost of the display maintenance.
LED DISPLAY, LED STADIUM SCREEN, LED OUTDOOR SCREEN, OUTDOOR BILLBOARD
Specification
Model
OF-10
OF-16
OF-20
Pixel Pitch
10mm
16mm
20mm
Pixel Density
10000 pixels/m2
3906 pixels/m2
2500 pixels/m2
LED Type
DIP346
DIP346
DIP346
Cabinet Dimension
1280mmx960mm
1280mmx960mm
1280mmx960mm
Cabinet Resolution
128*96pixels
80*60pixels
64*48pixels
Cabinet Weight
79kg
79kg
79kg
Cabinet Material
cold steel
cold steel
cold steel
Ingress Protection(front/rear)
IP65/IP54
IP65/IP54
IP65/IP54
Brightness
>6500nits
>6500nits
>6500nits
Viewing Angle(H/V)
120°/70°
120°/70°
120°/70°
Driving Method
1/4 Scan
1/2 Scan
static driving
Frame Refresh
≥ 60Hz
≥ 60Hz
≥ 60Hz
Data Refresh Rate
>1500Hz
>1500Hz
>1500Hz
Gray Scale
16bit
16bit
16bit
Power Consumption(avg.)
250w/m2
250w/m2
250w/m2
Input Voltage
AC 110/220±10%, 50~60Hz
AC 110/220±10%, 50~60Hz
AC 110/220±10%, 50~60Hz
Temperature(operating/storage)
-20~50°C / -40~60°C
-20~50°C / -40~60°C
-20~50°C / -40~60°C
Humidity(operating/storage)
10%~90%RH / 10%~85%RH
10%~90%RH / 10%~85%RH
10%~90%RH / 10%~85%RH
MTBF
≥1000hrs
≥1000hrs
≥1000hrs
Life Span
≥50000hrs
≥50000hrs
≥50000hrs
Pixel Failure
<0.0003
<0.0003
<0.0003

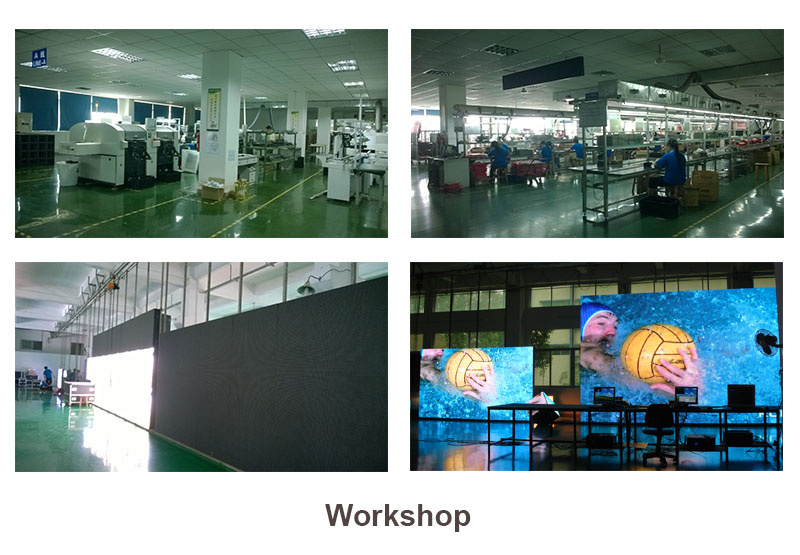

We are a full range manufacturer and LED display solution provider and its ancillary systems worldwide since 2009, headquartered in Shenzhen with a 6000 square meter Production state of the art facilities to cover international demands. We provide a one-stop shopping in the design, production, and distribution of LED display and solution for our domestic and global clients.
Our products Cover indoor, outdoor, fixed, rental and creative LED Solutions for various applications including sport, advertisement, concert, shopping mall, stadium, exhibition or any other indoor and outdoor events that comes to your imagination.
We strictly follow ISO9001: 2008 quality management system and passed CE, FCC, UL, RoHS, CCC etc. All of these factors ensure high quality LED products and effective services.
