Cabinet Material:
Die-Casting Aluminum
Cabinet Size:
640mm*640mm
Delivery Time:
25~30 Working Days
Warranty:
2 Years
OEM:
Yes
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Display Type:
LED Video Display
Application:
Stage Performance
Certification:
CCC
Pixel Pitch:
6.67mm, 8mm, 10mm
Average Power Consumption:
430W/M²
Pixel Density:
22545 Pixels/Sqm
Scanning Mode:
1/6
Product Description
Die Casting Outdoor Rental Full Color LED Display
Application

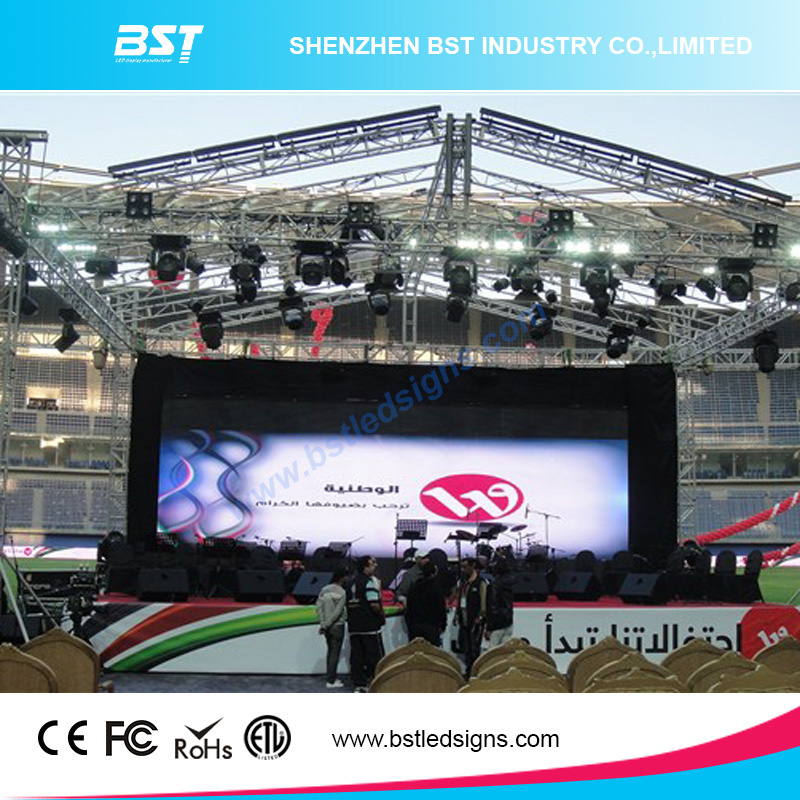

BST SIGN's LED display screen can be widely used in retail store, pubs and hotels, shopping center, TV and broadcasting center, worship, theater, auto show, award and corporate show, concert touring, rental and staging, festival and sports event, art exhibition, press conference etc.
Feature

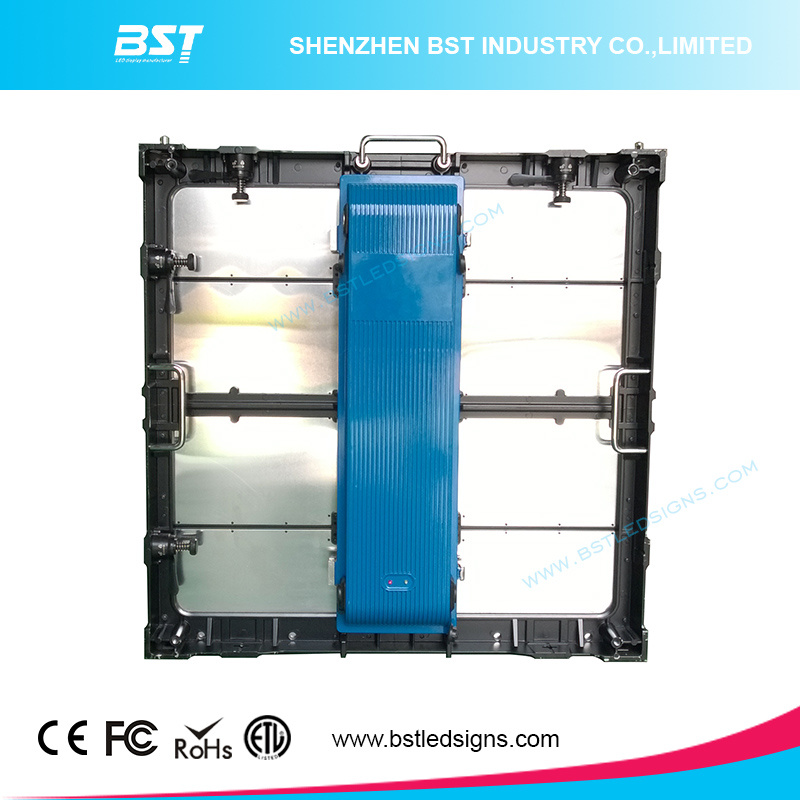

1. Standard cabinet design and component design The size of this LED display screen cabinet is only 640x640mm, adopt industry-standard connector. Reduces maintenance time and costs.
2. Lightweight, ultra slim and Seamless splicing The weight of this LED display screen cabinet is only 13kg, ultra slim, very easy to transport, stock and install. Seamless splicing advance visual performance.
3. Fanless design, silent operation low heat generated Low voltage input, low heat generated and fanless design, advance LED Screen reliability.
4. IP65 rated Weatherproof Class Special designed cabinet for outdoor environment, waterproof LED module with Glue filling technology, standard signal & power interface with waterproof function.
5. Wide Viewing angles, High contrast ratio Horizontally 140 degree, Vertically 140 degree wide viewing angles. 6. High brightness make sure visibility Brightness is higher than 5500nits make sure visibility even directly under sun light.
Specification
Model
OR-6.67
OR-8
OR-10
Pixel Pitch
6.67mm
8mm
10mm
Pixel Density
22478 pixels/m2
15625 pixels/m2
10000 pixels/m2
LED Type
SMD3535
SMD3535
SMD3535
LED Configuration
1R1G1B
1R1G1B
1R1G1B
Cabinet Dimension
640mmx640mm
640mmx640mm
640mmx640mm
Cabinet Resolution
96*96pixels
80*80pixels
64*64pixels
Cabinet Weight
13kg
13kg
13kg
Cabinet Material
die casting aluminum
die casting aluminum
die casting aluminum
Ingress Protection(front/rear)
IP65/IP54
IP65/IP54
IP65/IP54
Brightness
>5500nits
>5500nits
>5500nits
Viewing Angle(H/V)
140°/140°
140°/140°
140°/140°
Driving Method
1/6 Scan
1/5 Scan
1/4 Scan
Frame Refresh
≥ 60Hz
≥ 60Hz
≥ 60Hz
Data Refresh Rate
>1500Hz
>1500Hz
>1500Hz
Gray Scale
16bit
16bit
16bit
Power Consumption(avg.)
300w/m2
275w/m2
200w/m2
Input Voltage
AC 110/220±10%, 50~60Hz
AC 110/220±10%, 50~60Hz
AC 110/220±10%, 50~60Hz
Temperature(operating/storage)
-20~50°C / -40~60°C
-20~50°C / -40~60°C
-20~50°C / -40~60°C
Humidity(operating/storage)
10%~90%RH / 10%~85%RH
10%~90%RH / 10%~85%RH
10%~90%RH / 10%~85%RH
MTBF
≥1000hrs
≥1000hrs
≥1000hrs
Life Span
≥50000hrs
≥50000hrs
≥50000hrs
Pixel Failure
<0.0003
<0.0003
<0.0003

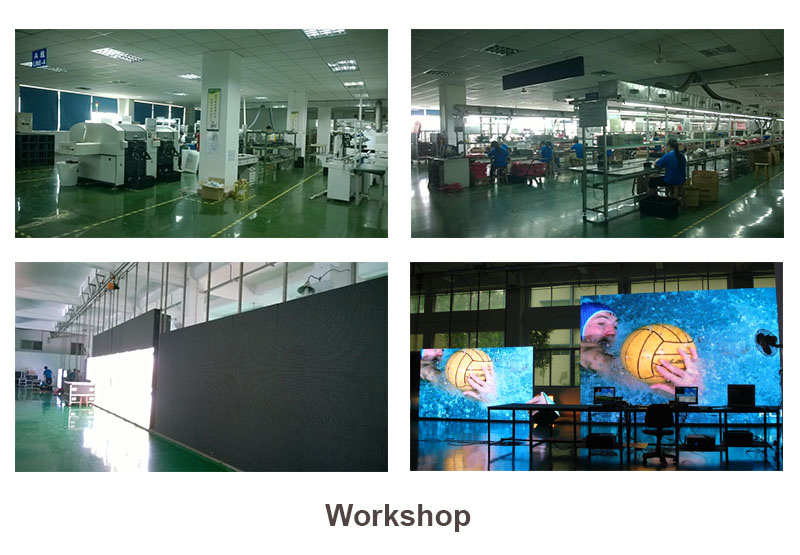

We are a full range manufacturer and LED display solution provider and its ancillary systems worldwide since 2009, headquartered in Shenzhen with a 6000 square meter Production state of the art facilities to cover international demands. We provide a one-stop shopping in the design, production, and distribution of LED display and solution for our domestic and global clients.
Our products Cover indoor, outdoor, fixed, rental and creative LED Solutions for various applications including sport, advertisement, concert, shopping mall, stadium, exhibition or any other indoor and outdoor events that comes to your imagination.
We strictly follow ISO9001: 2008 quality management system and passed CE, FCC, UL, RoHS, CCC etc. All of these factors ensure high quality LED products and effective services.
