Power Factor(PF):
0.98
Total Harmonic Distortion(Thd):
<8%
Power Efficiency:
>88%
Illuminance Uniformity:
>0.6
Power Line:
H05ss-F
Dimmable:
Yes
Driver:
Meanwell
Certification:
UL
Lamp Body Material:
Aluminum Alloy
Color Temperature:
Cool White
IP Rating:
IP54
Product Description

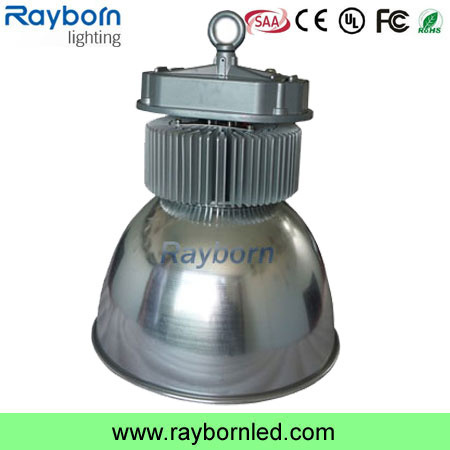

Indoor LED lamps 150w led high bay light/warehouse lighting Cree high bay
Item No.:
RB-HB-415-150W
Input Voltage:
AC 100~277V
Freqency Range:
50Hz~60Hz
LED Chip
Cree
Power Driver:
Mean Well
Power Factor:
>0.98
Power Efficiency:
>91%
LED Power
154W
LED QTY:
1pc*150W
LED Working Voltage:
DC 42~48V
System Consumption:
155W
LED Luminous Flux
Warm White
14350LM
Pure White
15100LM
Cool White
15300LM
Viewing Angle:
45degree
Centre Illuminance
Height 3M
1746LUX
Height 4M
982LUX
Height 5M
629LUX
Illuminance Area
Height 3M
Dia.3.5 M Round spot
Height 4M
Dia.4.6 M Round spot
Height 5M
Dia.5.8M Round spot
Illuminance Uniformity:
>0.6
Color Temperature
Warm White
2700K~3500K
Pure White
4000K~5500K
Cool White
6000K~7000K
Color Rendering Index
Ra>78
Light Distribution:
LED points visible
LED Junction Temperature:
≤115ºC
Working Temperature:
-40ºC~50ºC
IP Grade:
IP54/IP65
Working Life-span:
50000 H
Power Line:
1.0 mthree line
Connect Wire
Brown
L
Blue
N
Yellow / Green
G
Heatsink
Integration of Thermal conductivity Heat dissipation phase change technology
The color of the lamp shell
Black and silver is available
Certificate
CE /ROHS/UL
Net Weight:
8.0KG
