Size:
L440*W320*H260mm
Color:
Black or Silver
LED Chip:
Bridgelux Chip
Power:
150W
Dirver:
Meanwell Driver
CT:
2500-6500k
Packing Box:
510*370*320mm
Certification:
ISO90001&Bcc
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP67
Color Temperature:
2500-6500k
Product Description

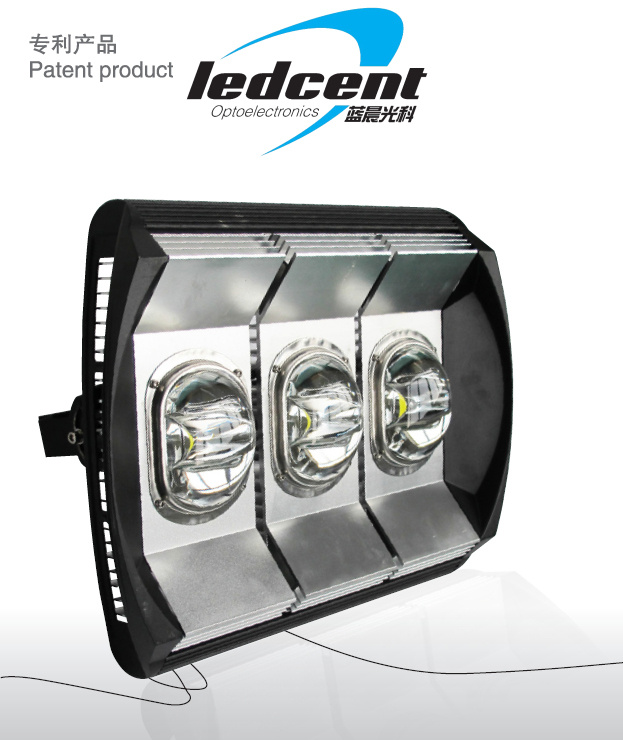

High Bay Light 150W
Item No.:LC-SD001-3-150 Power:150W LED Module Quantity:3*50W Whole light efficiency:100lm/W Lumen:15000lm Color temperature:2500-6500K Color rendering index:CRI≥75 Input voltage:AC85-265V Power effieiency:92% Power factor:0.98 Total harmonic distortion:<15% Humidity:10%~95% IP Rating:IP67 Net wight:7.5kg Product size:L440*W320*H260mm Packing size:L510*W370*H320mm Gurantee time:1-5 years. Application:tunnel,factory,gas station,toll station,garden,etc.

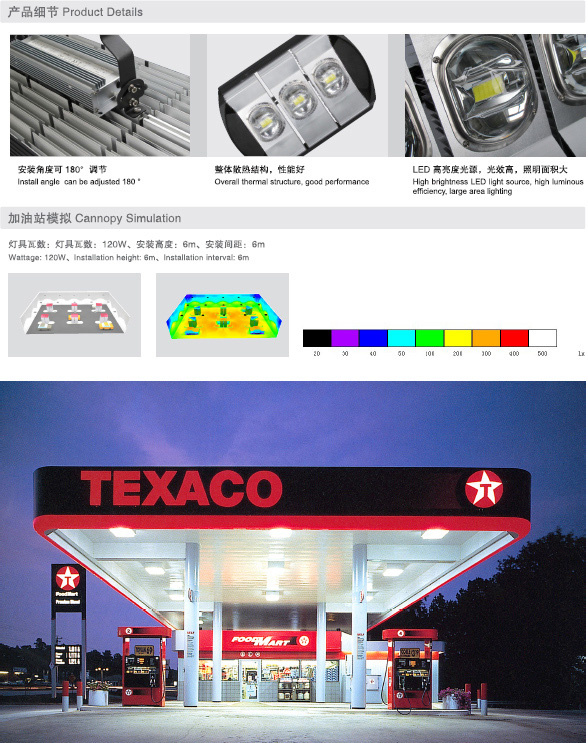

The characteristics of LEDCENT led high bay light:
Light source
High photosynthetic efficiency USA Bridgelux led chip
Brightness 1W>110lm/W saving energy 70%
Led chip is independent protection technology
Light decay is <3% per year
CRI>75
Structure
Multi-Function led lights
Module design saving 80% maintain cost
Lifetime 8years
IP67
Excellent thermal performance
180 degrees angle adjustment
Working temperature -40°C-50°C
Corrosion resistance,suitable for beach
Different light angle,suitable for different places
Power supply
Meanwell brand
UL certificate
Power factor>0.98
Power efficiency>92%
Resistance to high pressure,against lighting
Application places
Highway,tunnel,underground passage,factory,gas station,bus station,staduum,building,finishing boat and so on.
Model
LC-SD001-3-120
LC-SD001-3-150
LC-SD001-3-180
Power
120W
150W
180W
LED Module quantity
3*40W
*50W
2*60W
Whole light efficiency
100lm/W
Lumen
12000lm
15000lm
18000lm
Color temperature
2500K-6500K
Power efficiency
92%
Power factor
0.98
Total harmonic distortion
<15%
Working temperature
-40~50 degree
Humidity
10%-95%
IP rating
IP67
Net weight
7.5kg
Chip
Bridgelux
Driver
Meanwell
Material
Aluminum alloy
Color
Black or silver
Guarantee time
1-5 years
Product size
L440*W320*H260mm
Packing size
L510*W370*H320mm
