Prod Model: |
LC-SD001-2 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Luminance: |
100lm/W |
CRI: |
75 |
IP: |
67 |
CT: |
2500-6500k |
Watt: |
80, 90, 100, 110, 120 |
Chip: |
Bridgelux Chip |
Driver: |
Meanwell |
Life Time: |
50000 Hours |
Certifictate: |
CE, RoHS, FCC, CQC, SGS |
Applicant: |
for Outdoor Squre, Park, Play Ground, High Pole |
Lamp Body Material: |
Aluminum Alloy |
Projection Distance: |
18-25m |
Application: |
Play Ground, High Pole, Gas Station, Subway |
IP Rating: |
IP67 |
Certification: |
VDE |
Operating Voltage: |
85-265V |
LED Chips Brand: |
Bridgelux |
Color Temperature: |
2500-6500k |
Power: |
90W, 110W, 120W |
Input Voltage: |
AC85-265V |
Product Description

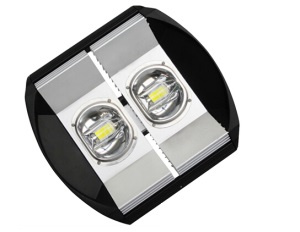

120W LED flood light for park ,tunnel ,gas station with CE ,ROHS (LC-SD001-2)
Model | LC-SD001-2-90 | LC-SD001-2-100 | LC-SD001-2-120 |
Power | 90W | 100 | 120 |
Lumen | 9900lm | 10000 | 12000 |
Whole light efficiency | 110lm/W |
LED Module quantity | 2 |
Color temperature | 2500K-6500K |
Power efficiency | 95% |
Power factor | 0.98 |
Total harmonic distortion | <15% |
Working temperature | -40~50 degree |
Humidity | 10%-95% |
IP rating | IP65 |
Chip | Bridgelux |
Driver | Meanwell |
Material | Aluminum alloy |
Color | Black or silver |
Guarantee time | 1-5 years |
Product size | L320*W320*H260mm |
Features
1. Fashionable and modern design in apperance, main parts o the lamp body adopt high pressure die-casting aluminum to ensure shock, It has the advantages in walloping and corrosion-resistance. This is our patent products, you won't find the same light in China.
2. Main parts of te lamp which was made by ultra-high thermal conductivity aluminum.
3. High toughened glass which was treated by special processing have a better light transmittance.
4. Sperior dissipation performance: According to conduction, radiation, convection principle, it optimizes the design of te radiator for te best patented technical thermal layer raises the radiator's thermal conductivity. LED junction temperature will be under 80 degree while the environmental temperature is under 35 degree
5-our brightness is 100Lm/w. That is very bright, the other company's tunel light most is 80-90lm/w.
6-our tunnel light each part waterproof, can completely in the water.
7-we have very good power supply, and the life time is more than 5years. The others company power supply just can use 1-3years
8-we have Completely solve the heat dissipation problems, as our module design structure. Their are 1cm gap between modules can resistant 12 typhoon. And this tunnel light can save 80% maintenance cost, do you know why? Because our light failure <4%, in first 3000hours. Plus our module is Separate work, when one chip is broken will not effect the other 39chips, if one 20W module is broken, will not effect the other modules, so you just only need to change a single module. It just need one person within 5 minutes to change the broken module. That will save man cost and the freight of send back to our factory for repair. etc.
We can say that all the problems of the LED street light we have solved.
Applications
Tunnel, Underground, railway, underground Parking
