300W LED High Bay Light with Bridgelux Chip Meanwell Driver
| Price: |
US $ 360-395/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |
| Prod Model: |
LC--SD001-5-300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
L680*W320*H260mm |
| Color: |
Black or Silver |
| LED Chip: |
300W |
| Dirver: |
Meanwell Driver |
| CT: |
2500-6500k |
| Packing Box: |
750*370*320mm |
| Certification: |
ISO90001&Bcc |
| Lamp Body Material: |
Aluminum Alloy |
| IP Rating: |
IP67 |
| Color Temperature: |
2500-6500k |
Product Description

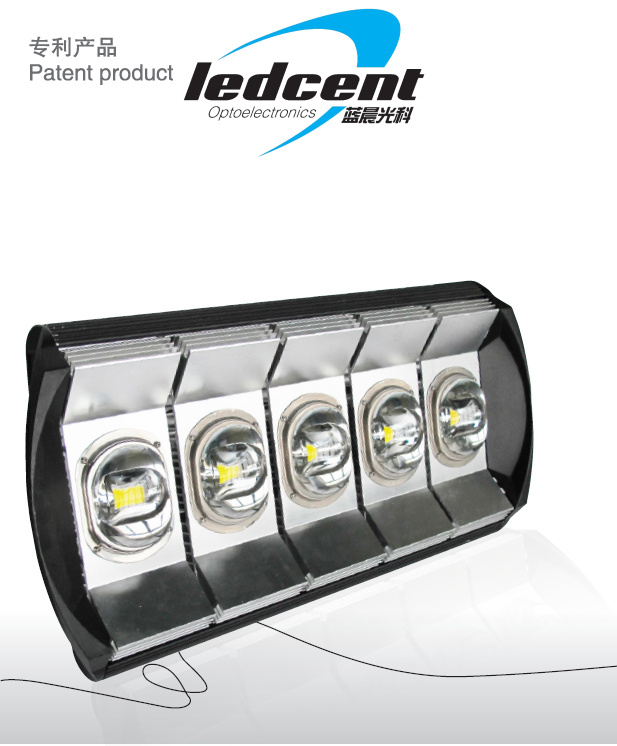

300W led high bay light with Bridgelux chip Meanwell driverItem No.:LC-SD001-5-300
Power:300W
LED Module Quantity:5*60W
Whole light efficiency:100lm/W
Lumen:30000lm
Color temperature:2500-6500K
Color rendering index:CRI≥75
Input voltage:AC85-265V
Power effieiency:92%
Power factor:0.98
Total harmonic distortion:<15%
Humidity:10%~95%
IP Rating:IP67
Net wight:12.5kg
Product size:L560*W320*H260mm
Packing size:L630*W370*H320mm
Gurantee time:1-5 years.
Application:tunnel,factory,gas station,toll station,garden,etc.
The characteristics of LEDCENT led high bay light:Light source
High photosynthetic efficiency USA Bridgelux led chip
Brightness 1W>110lm/W saving energy 70%
Led chip is independent protection technology
Light decay is <3% per year
CRI>75
Structure
Multi-Function led lights
Module design saving 80% maintain cost
Lifetime 8years
IP67
Excellent thermal performance
180 degrees angle adjustment
Working temperature -40°C-50°C
Corrosion resistance,suitable for beach
Different light angle,suitable for different places
Power supply
Meanwell brand
UL certificate
Power factor>0.98
Power efficiency>92%
Resistance to high pressure,against lighting
Application places
Highway,tunnel,underground passage,factory,gas station,bus
station,staduum,building,finishing boat and so on.
|
Model |
LC-SD001-5-200 |
LC-SD001-5-250 |
LC-SD001-5-300 |
|
Power |
200W |
250W |
300W |
|
LED Module quantity |
5*40W |
5*50W |
5*60W |
|
Whole light efficiency |
100lm/W |
|
Lumen |
20000lm |
25000lm |
30000lm |
|
Color temperature |
2500K-6500K |
|
Power efficiency |
92% |
|
Power factor |
0.98 |
|
Total harmonic distortion |
<15% |
|
Working temperature |
-40~50 degree |
|
Humidity |
10%-95% |
|
IP rating |
IP67 |
|
Net weight |
12.5kg |
|
Chip |
Bridgelux |
|
Driver |
Meanwell |
|
Material |
Aluminum alloy |
|
Color |
Black or silver |
|
Guarantee time |
1-5 years |
|
Product size |
L680*W320*H260mm |
|
Packing size |
L750*W370*H320mm |
