Item No.:
Rb-Hb-400wcr
LED Power:
400W
Driver:
Meanwell Hlg
Chip:
CREE,LG
PF:
0.98
CRI(Ra):
>78
Viewing Angle:
25/60/90
Warranty Time:
5 Years
IP Rate:
IP65
Lamp Body Material:
Aluminum
IP Rating:
IP65
Certification:
VDE
Color Temperature:
Pure White,Warm White,Cool White
Power:
400W
Product Description

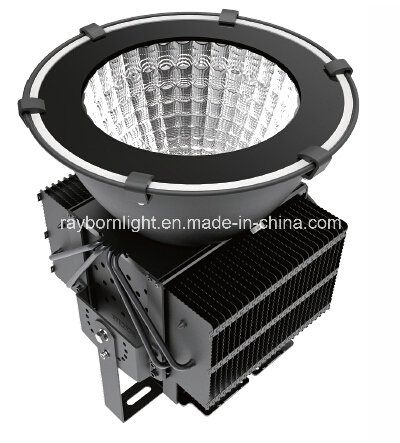

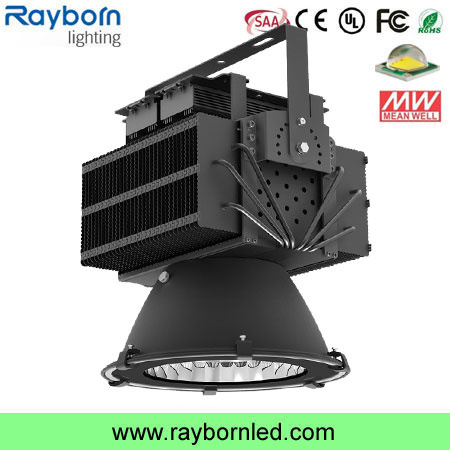

Great heat dissipation 400W LED mining high bay lights
Product Specifications
LED High Bay Light/Industrial High Bay LED Lighting (30-500W)
400W LED Industrial Light Main Technical Parameters
Item No.:
RB-HB-400WHCR
Input Voltage:
AC 90~305V
Freqency Range:
50Hz~60Hz
LED Chip
CREE XBD
Power Driver:
Mean Well Driver
Power Factor:
>0.98
Power Efficiency:
>91%
LED Power
400W
LED QTY:
280PCS XBD
LED Working Voltage:
DC 42~48V
System Consumption:
405W
LED Luminous Flux
Warm White
38600LM
Pure White
41000LM
Cool White
41200LM
Viewing Angle:
25/60/90degree
Centre Illuminance
Height 15M
155lux
Height 20M
87lux
Height 25M
56lux
Illuminance Area
Height 15M
Dia.1646cm points visible
Height 20M
Dia.2194cm points visible
Height 25M
Dia.2743cm points visible
Illuminance Uniformity:
>0.6
Color Temperature
Warm White
2700K~3500K
Pure White
4000K~5500K
Cool White
6000K~7000K
Color Rendering Index
Ra>80
Light Distribution:
LED points visible
Light Design:
LED+Reflectors secondary light distribution
LED Junction Temperature:
≤115ºC
Working Temperature:
-40ºC~50ºC
Working Life-span:
50000 H
IP Grade:
IP65
Power Line:
1.0 mthree line
Connect Wire
Brown
L
Blue
N
Yellow / Green
G
Net Weight:
12.5kg
Industrial led lighting Features
1. Using high chrome plating fins aluminum as heat sink. 2. Using Cree,LG LED chip 3. Using Mean Well power driver 4. IP level is IP65, Can be used outdoor. 5. Base: Hook with safety rope 6. Beam angle: 120/90/40° 7. With two pieces safety cable. 8. Energy saving than traditional lamp about 70%~80% 9. Main part of heat dissipation is under the protection of several patents 10. Compliance with CE&RoHS&FCC&PSE&ULstandard regulations 11. Meeting the specifications of the traditional lamp can directly replace the traditional mercury lamp, No additional construction
High Power High Bay Light Competitive Advantage
1. CE & RoHS & TUV &UL approved, Quality Guaranteed
2. Imported original Cree & Bridgelux & Epistar chip, superior light source
4. Fast delivery, 5-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 5 years warranty and 50.000 hours lifespan

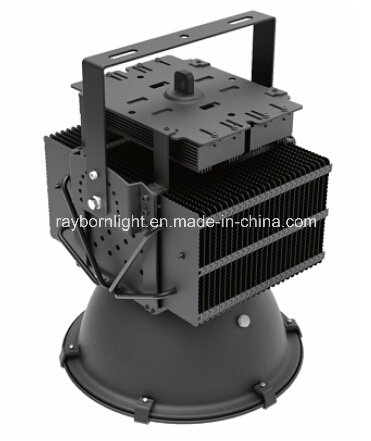

LED High bay light details image
High bay led Applications
1. Workshop, factory, warehouse, highway toll station. 2. Gas station, supermarket, exhibition, gym. 3. The hall conference room mall golf course such as ship panoramic lighting at the airport
Our service 1. Your inquiry related to our products or prices will be replied in 24hrs 2. Quality Feedback: Reply within 24 hours, treatment is given 3 days 3. OEM &ODM, any your customized lighting we can help you to design and put into product. 4. Distributorship are offered for your unique design and some our current models 5. Protection of your sales area, ideas of design and all your private information
Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.
With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
