Item No.:
Rb-Hb-500wcr
LED Power:
500W
Driver:
Meanwell Hlg
Chip:
CREE,Samsung
PF:
0.98
CRI(Ra):
>78
Viewing Angle:
25/60/90
Warranty Time:
5 Years
IP Rate:
IP65
Luminous Flux:
51200lm
Lamp Body Material:
Aluminum
IP Rating:
IP65
Certification:
VDE
Color Temperature:
Pure White, Warm White, Cool White
Power:
500W
Product Description
Factory Meanwell Driver IP65 led projector lamp industrial led high bay light 500w for indoor factory lighting
Product Specifications
LED Flood light /Industrial High Bay LED Lighting (30-500W)
500W LED Industrial Light Main Technical Parameters
Item No.:
RB-HB-500WCR
Input Voltage:
AC 90~305V
Freqency Range:
50Hz~60Hz
LED Chip
CREE XBD
Power Driver:
Mean Well Driver
Power Factor:
>0.98
Power Efficiency:
>91%
LED Power
500W
LED QTY:
280PCS XBD
LED Working Voltage:
DC 42~48V
System Consumption:
505W
LED Luminous Flux
Warm White
48600LM
Pure White
51000LM
Cool White
51200LM
Viewing Angle:
25/60/90degree
Centre Illuminance
Height 20M
133lux
Height 30M
59lux
Height 40M
33lux
Illuminance Area
Height 20M
Dia.2087cm points visible
Height 30M
Dia.3130cm points visible
Height 40M
Dia.4174cm points visible
Illuminance Uniformity:
>0.6
Color Temperature
Warm White
2700K~3500K
Pure White
4000K~5500K
Cool White
6000K~7000K
Color Rendering Index
Ra>80
Light Distribution:
LED points visible
Light Design:
LED+Reflectors secondary light distribution
LED Junction Temperature:
≤115ºC
Working Temperature:
-40ºC~50ºC
Working Life-span:
50000 H
IP Grade:
IP65
Power Line:
1.0 mthree line
Connect Wire
Brown
L
Blue
N
Yellow / Green
G
Net Weight:
13.5kg
Industrial led lighting Features
1. Using high chrome plating fins aluminum as heat sink. 2. Using Cree,LG LED chip 3. Using Mean Well power driver 4. IP level is IP65, Can be used outdoor. 5. Base: Hook with safety rope 6. Beam angle:25/60/90° 7. With two pieces safety cable. 8. Energy saving than traditional lamp about 70%~80% 9. Main part of heat dissipation is under the protection of several patents 10. Compliance with CE&RoHS&FCC&PSE&ULstandard regulations 11. Meeting the specifications of the traditional lamp can directly replace the traditional mercury lamp, No additional construction
High Power High Bay Light Competitive Advantage
1. CE & RoHS & TUV &UL approved, Quality Guaranteed
2. Imported original Cree & Bridgelux & Epistar chip, superior light source
4. Fast delivery, 5-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 5 years warranty and 50.000 hours lifespan

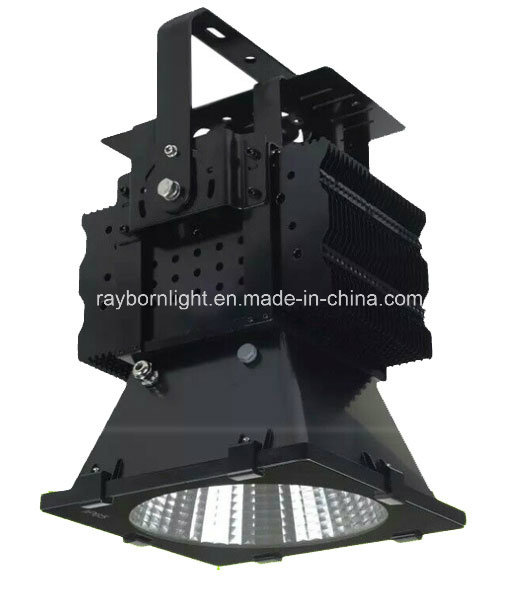

LED High bay light details image

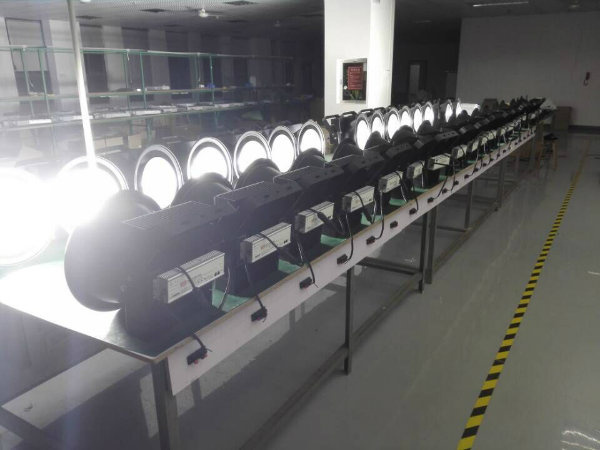

LED Flood light 12hours aging test
All product must have 12hours more aging test, inspection department will test 100% product for light up test, power wattage test and so on.
LED High bay light Applications
1. Workshop, factory, warehouse, highway toll station. 2. Gas station, supermarket, exhibition, gym. 3. The hall conference room mall golf course such as ship panoramic lighting at the airport
Our service 1. Your inquiry related to our products or prices will be replied in 24hrs 2. Quality Feedback: Reply within 24 hours, treatment is given 3 days 3. OEM &ODM, any your customized lighting we can help you to design and put into product. 4. Distributorship are offered for your unique design and some our current models 5. Protection of your sales area, ideas of design and all your private information
Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.
With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
