North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item No.:
Rb-Hb-515-80W
Input Voltage:
100-240V
LED Power:
80W *1PCS
LED Chip:
Bridgelux
Viewing Angle:
45/90/120 Degree
Luminous Flux:
7200lm
PF:
>0.95
Power Efficiency:
>88%
Color Rendering Index:
Ra>78
IP Grade:
IP54
Color Temperature:
Cool White
Lamp Body Material:
Aluminum
IP Rating:
IP54
Certification:
VDE
Power:
80W
Usage:
Room, Factory/Workshop
LED Chips:
Bridgelux
Product Description

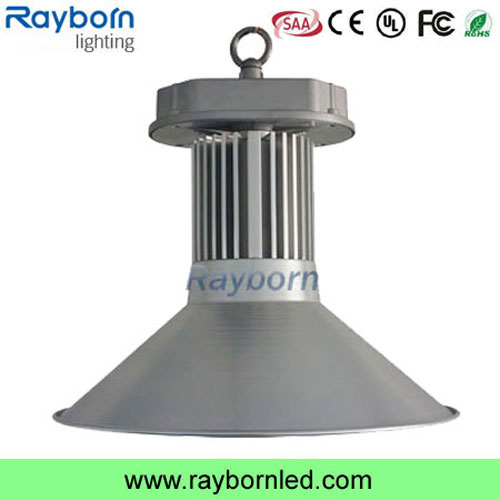

2015 New 80W Workshop Gas Station LED High Bay Lights
Product Specifications:
LED High Bay Light/Industrial High Bay LED Lighting (30-500W)
80W LED Industrial Light Main Technical Parameters
Item No.:
RB-HB-515-80W
Input Voltage:
AC 100~240V
Freqency Range:
50Hz~60Hz
Led Chip:
Bridgelux 45 mil
Power Factor:
>0.95
Power Efficiency:
>88%
LED Power
80W
LED QTY:
1pc*80W
LED Working Voltage:
DC 30~36V
System Consumption:
86 W
LED Luminous Flux
Warm White
7950LM
Pure White
8360LM
Cool White
8360LM
Viewing Angle:
120degree
Center Illuminance
Height 3M
303LUX
Height 4M
170LUX
Height 5M
109LUX
Illuminance Area
Height 3M
Dia.9.6 M points visible
Height 4M
Dia.12.8M points visible
Height 5M
Dia.16.1 M points visible
Illuminance Uniformity:
>0.6
Color Temperature
Warm White
2700K~3500K
Pure White
5000K~5500K
Cool White
6000K~7000K
Color Rendering Index
Ra>78
Light Distribution:
LED points visible
Light Design:
LED+Reflectors
LED Junction Temperature:
≤115ºC
Working Temperature:
-40ºC~50ºC
IP Grade:
IP54
Working Life-span:
50000 H
Power Line:
1.0 mthree line
Connect Wire
Brown
L
Blue
N
Yellow / Green
G
The color of the lamp shell
Black and silver is available
Certificate
CE /ROHS
Net Weight:
6.9kg
Features:
1.Using single powerful LED(30-500W)as the light source, with unique lighting design of Multi-chip integrated single-module; select for excellent imported semiconductor chip, it has high thermal conductivity, low luminous decay, pure colors and no heavy shade etc.
2.The unique design of radiator which can combine with the lamp box perfectly, diffuse the heat conduction efficiently, so that reduce the temperature of inside lamp, it ensures the LED longlife-span.
3.Environment-friendly, no air pollution, no lead-free, no-mercury.
4.Adopted advanced constant current controlling techniques; wide voltage range available and global universal; overcome the lighting instability caused by electric network of ballast and noise pollution; avoid the stimulation and tiredness taking from long-time work.
High bay led lighting Application :
Apply to workshop,factory,warehouse,building,highway toll stations,supermarkets, stadiums and other places of lighting required
Competitive Advantage:
1. Imported original Cree & Bridgelux & Epistar chip, superior light source
4. Fast delivery, 3-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 3 years warranty
Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.
With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
