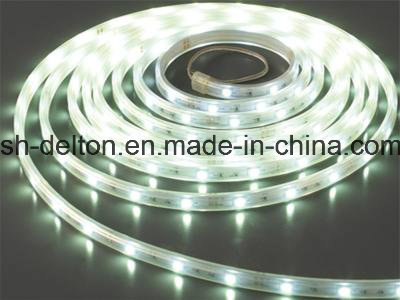

DC24V SMD2835 8mm 14.4W CE Approved Flexible LED Strip Light
1. LED:SMD2835 high Lumen high CRI LED
2. LED Quantity:60pcs/M
3. Circuit Board: Flexible Print Circuit Board(FPC)

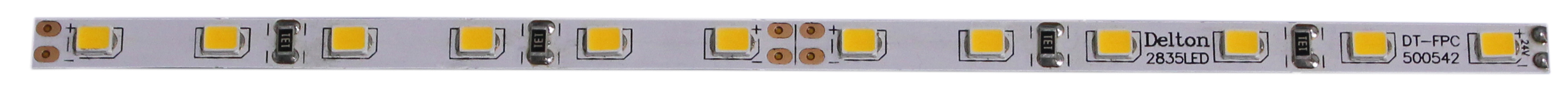

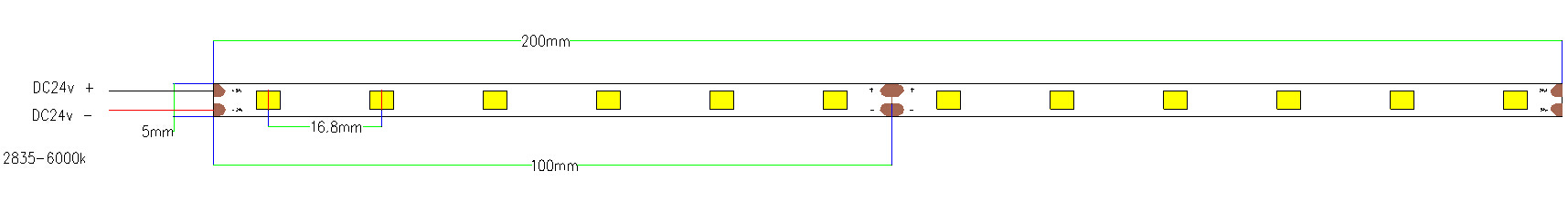

4. Special Design: there are 60pieces of LED on one meter strip.Every 6 pieces of LED constitutes one 100mm long unit and one meter strip has 10 units. Each unit are independent and can be cutted to use as a short strip. Each unit has the max watt of 1.44W.
5. Power(watt): Max 14.4W/Meter. The watt will lower down when the current sets to be lower
6. Working Current: Max 60mA.
Current is sincerely suggested to be lower than 60mA for heat dissipation consideration.
The Strip can be designed to produce constant-current strips to have a better stable brightness.
7. Input Voltage:DC24V
8. Strip width: 8mm(width ranges from 8mm to 18mm)
9. Color Temperature:2700-18000K(Yellow, White,Blue, Red, Green, Purple and etc)
10.CRI:there are three grades can be choosed:>75,>80,>90,
With higher CRI, More Pure Color
11. Power Efficiency::≥90lm/W
12. The strip can be supplied with self-adhesive tape on the back for the convenience of installing.
13.IP65, Waterproof and can be used outdoor.
The strip is supplied with silicon sleeve outside the strip. And the protection grade upgrade to IP65. It can be waterproof and can be used outdoor.
Or it can be covered by transparent epoxy layer to reach IP65, or just supplied with IP44 grade.
14.Max Length:5M one strip.
The strip will be packaged in a round roll with max 5 meters one roll.
15. Lifespan: 30000hours
16. Warranty: 2 years.
Main Application
1.Light-Box lighting: Install around and behind the light box to get a better brightness.
2.Commercial Cabinet Lighting. Installed in the cabinets and stores as commercial lighting
3.Display Lighting. Use behind the display board to make it more bright and effective.
4.Decorative lighting. Use Colorful lights as decoration
5.General Lighting used as replacement of common lights.
6.Advertising Lighting. Use flexible strips to make different attractive letters.
7.Other Special Application
Trade Term:
1. Payment Term: 30% pre-payment and the balance T/T , Paypal or L/C(if necessary) against the delivery.
2. Delivery Time: 15-30 days.
3. Sample: Avaliable
4. Sample Delivery Time: in 7 days
5. Sample Fee:Yes
