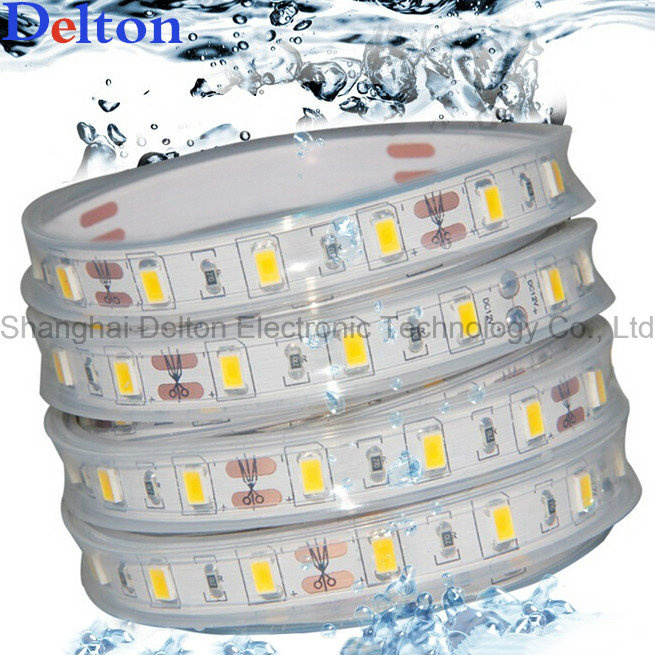

CE Approved Waterproof Flexible LED Strip Light
1. Special Design: there are 60 pieces of LED on one meter strip.
Every 3 pieces of LED constitutes one 50mm long unit and one meter strip has 20 units. Each unit are independent and can be cutted to use as a short strip. Each unit has the max watt of 0.72W.
2. Power(watt): 14.4W/Meter. The watt will lower down when the current sets to be lower.The max working current is 60mA. Current is sincerely suggested not to be higher than 55mA.
The Strip can be designed to produce constant-current strips to have a better stable brightness. The suggested constant current value is 35mA-55mA.
3.Luminous Flux:18-22LM/W
4. Strip width: 10mm(width ranges from 8mm to 18mm)

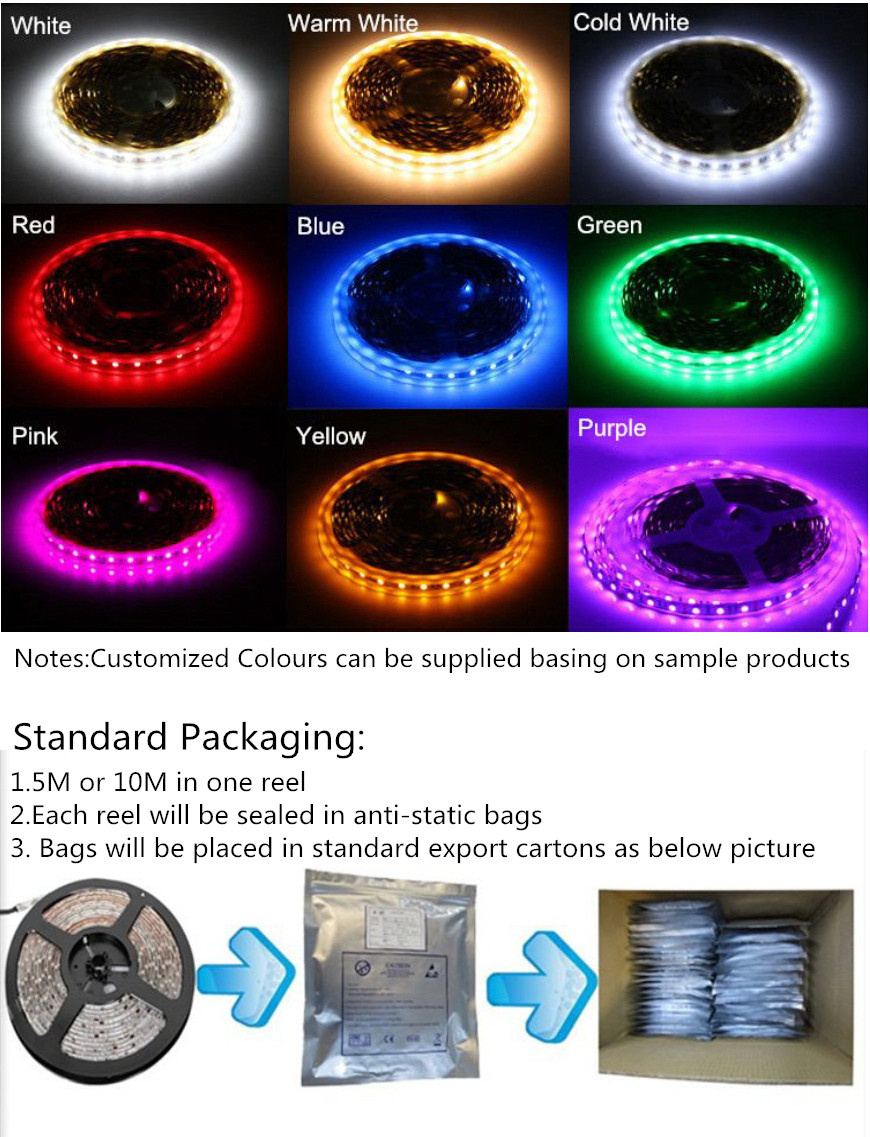

5. Avaliable Color Temperature:2700-10000K(Yellow, White,Blue, Red, Green, Purple and etc)
2700K-4000K(Warm White)
4500K-5500K (White)
6500K-10000K(Cold White)6. Power Efficiency::≥90lm/W
7. IP44, Indoor application only.
Waterproof Strips are also avaliable:

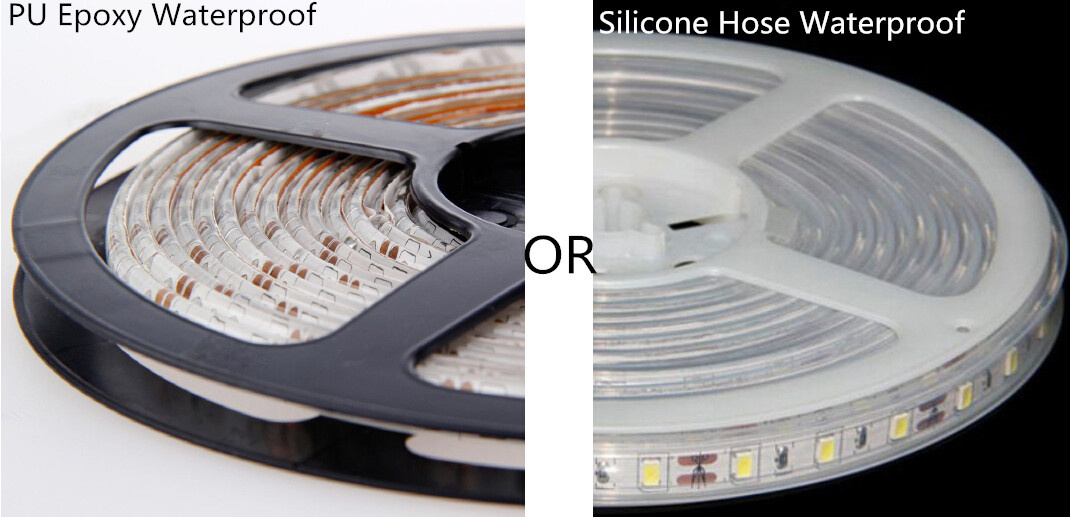

The strip can be supplied with silicon sleeve outside the strip or can be covered by transparent epoxy layer, And the protection grade upgrade to IP65. It can be waterproof and can be used outdoor
8. Input Voltage:DC12V. The light should connect with 12V external power supply. Direct connecting with electrcity is forbidden. The input voltage for the power supply is 90-260V, which means this light strip can be used in all the countries all over the world.
Connecting Lead:
This strip can be supplied two ends with female and male plug for strip length above 5 meters, or it can be supplied with common black and red wire on one end.Notes:1.Customized dimension and watt are negotiable.
2.All the LED Light Source have been tested before entering the warehouse
3.The strips should have at least 48 hours aging test before ex-mill..
4.Product Warranty: 3000 hours or 2 years
Main Application
1.Light-Box lighting: Install around and behind the light box to get a better brightness.
2.Commercial Cabinet Lighting. Installed in the cabinets and stores as commercial lighting, can be used together with aluminum profiles.
3.Display Lighting. Use behind the display board to make it more bright and effective.
4.Decorative lighting. Use Colorful lights as decoration
5.General Lighting used as replacement of common lights on or around the ceiling corners.
6.Advertising Lighting. Use flexible strips to make different attractive letters.
7.Other Special Application| 5050 Flexible LED Strip Light |
| LED/M | Voltage | Current | Max Watt | Width |
| 48pcs/m | DC 12V | ≤ 60mA | 11.52W/m | 8-18mm |
| 60pcs/m | DC 12V | ≤ 60mA | 14.4W/m | 8-18mm |
| 72pcs/m | DC 12V | ≤ 60mA | 17.28W/m | 8-18mm |
| 90pcs/m | DC 12V | ≤ 60mA | 21.6W/m | 8-18mm |
| 48pcs/m | DC 24V | ≤ 60mA | 11.52W/m | 8-18mm |
| 60pcs/m | DC 24V | ≤ 60mA | 14.4W/m | 8-18mm |
| 72pcs/m | DC 24V | ≤ 60mA | 17.28W/m | 8-18mm |
| 84pcs/m | DC 24V | ≤ 60mA | 21.6W/m | 8-18mm |
Trade Term:
1. Payment Term: 30% pre-payment and the balance T/T , Paypal or L/C(if necessary) against the delivery.
2. Delivery Time: 15-30 days.
3. Sample: Avaliable
4. Sample Delivery Time: in 7 days
5. Sample Fee:Yes
