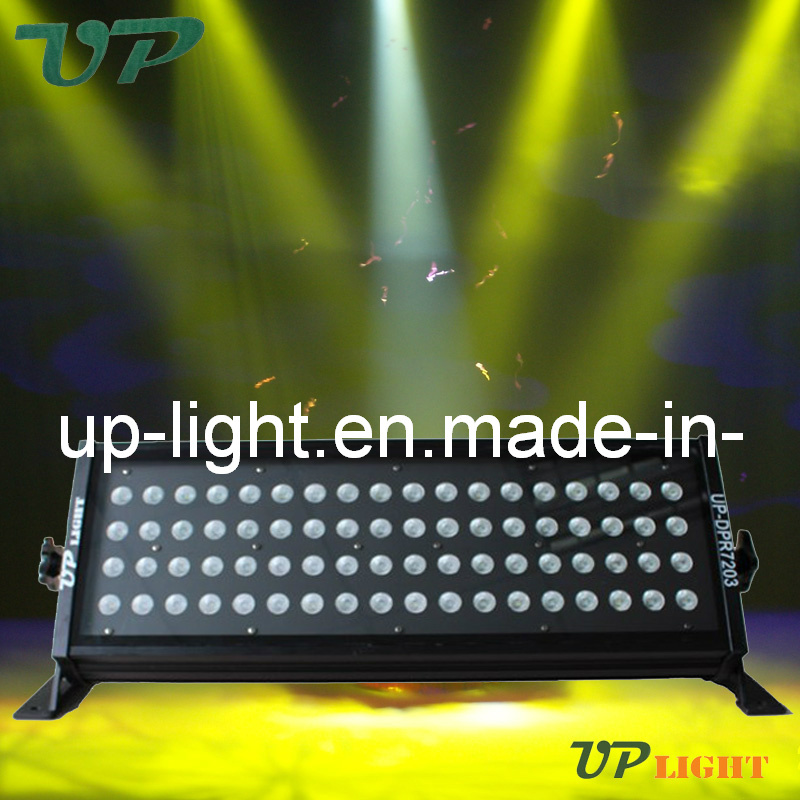

Waterproof 72pcs 3w led washer stage light
Input voltage: 100V~240VAC (50/60Hz);
Rated power: 90W/120W/230W;
Light source: 3W Edison LED with long lifetime 50000-100000 hours, high luminous efficiency, constant current, high precision, non-flicker (400HZ) and low power consumption etc;
LED Qty: 24/36/72LEDS (Red 6/6/12 + Green 6/12/24 + Blue 6/12/24 + White 6/6/12);
LED power supply: Adopts power factor correction PFC switching power supply, PF> 0.99, the efficiency of up to 90%, it's real green and environmental protection.
Control mode: DMX512 signal control / master-slave control / sound control and auto running;
Channel: 4CH or 8 CH;
Len: High optical transmission of the acrylic len;
Emitting angle: 20*45 ° Or 20*60 ° Optional;
Color effect: RGBW color mixing can make more than 16000 colors with strobe effects and soft light effect;
Waterproof grade: IP62;
Projection distance: 20M;
Working termperature: -15° ~45° ;
Material: Casting aluminum alloy;
|
4CH |
8CH |
function |
|
|
Ch 1 |
Lamp on |
|
Ch 1 |
Ch 2 |
RED |
|
Ch 2 |
Ch 3 |
GREEN |
|
Ch 3 |
Ch 4 |
BLUE |
|
Ch 4 |
Ch 5 |
WHITE |
|
|
Ch 6 |
Strobe |
|
|
Ch 7 |
Speed |
|
|
Ch 8 |
Soft light mixing |
Uplight Stage Equipment (Guangzhou) Co., Ltd. is a high-tech company, which is engaged in R&D, manufacturing and marketing of stage equipments. The main products include moving lighting, LED stage equipments, follow spot, laser light, gobo light, etc.
We own a professional R&D team, who has 10 years experience in stage lighting. Our sales team can provide best service by engineers and technical staff members' supporting. We passed the ISO9001: 2000 quality management system standard as well. There are numerous domestic projects we have been undertaken, was praised by all the customers.
To become the leading stage lighting supplier on a global basis. We view our customers as the most important element in our business, strive to exceed the customer's expectation.
