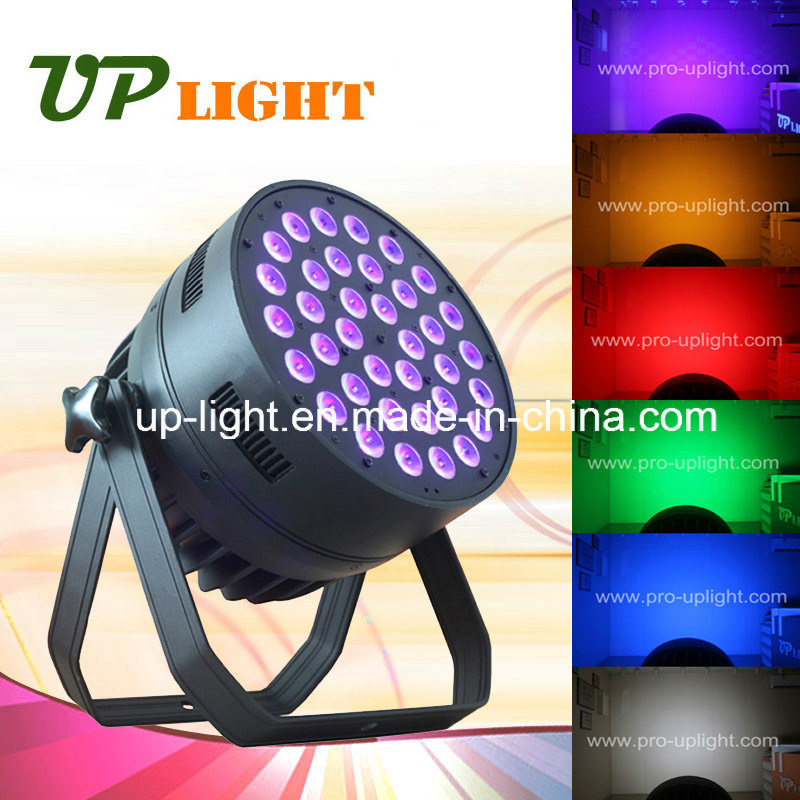

LED Stage Lighting 36PCS12W RGBWA +UV Zoom 6in1 Wash LED PAR
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
36pcs12w RGBWA +UV Zoom 6in1 Wash LED PAR CanEmitting Color:
40 ° Wash Color:
Technical Parameters:| UP-PALD3612 36x12w RGBWAUV 6in1 led par |
| Tech Spec |
| Input voltage | AC100V-240V, 50/60HZ; |
| Rated power | 450W; |
| Light source | 36pcs Nominal Power 12w UV+A+R+G+B+W 6 in 1 LEDs; |
| 80000~100000 hours life time; |
| High luminous efficiency, no radiation, low power consumption, no flicke; |
| LED Lamp powr supply | Adopt power factor correction PFC switching power supply, PF> 0.99, the efficiency of up to 90%, it's real green and environmental protection; |
| LED drive mode | Adopt static constant current drive mode with high precision and non-flicker (400HZ); |
| Color system | Sophisticated Ultraviolet, Amber, Red, Green, Blue, White 6 colors mixing system with color rainbow which is reaching high colour rendering index and the most favorite color mixing way for lighting technician; |
| Color effect | Uniform color washing effect with no colour shadows, rich saturated and more pastel lighting; |
| Lens | 36pcs high efficiency and transmission large lens; |
| Lens angle | 40°/25°/20°optional; |
| IP rating | IP20; |
| Strobe | Multi-function strobe with soft light effect; |
| Dimmer | 0~100% linear dimmer; |
| Control mode | DMX512 signal 3-pins/5-pins connection control, master-salve control, multiple connection in series control with self-programming mode, self-running mode, external control mode; |
| Channel | 6CH, 10CH; |
| Other function | DMX address can be adjusted; DMX address extension function; IP address extension function; |
| Working temperature | -15° C ~45° C; |
| Shell material | Aluminum alloy; |
| Application | Lighting for TV studio, theater, opera house, auditorium, stage, T-stage, concerts, and vocal concert, DJ effect, disco effect, club effect, party effect etc; |

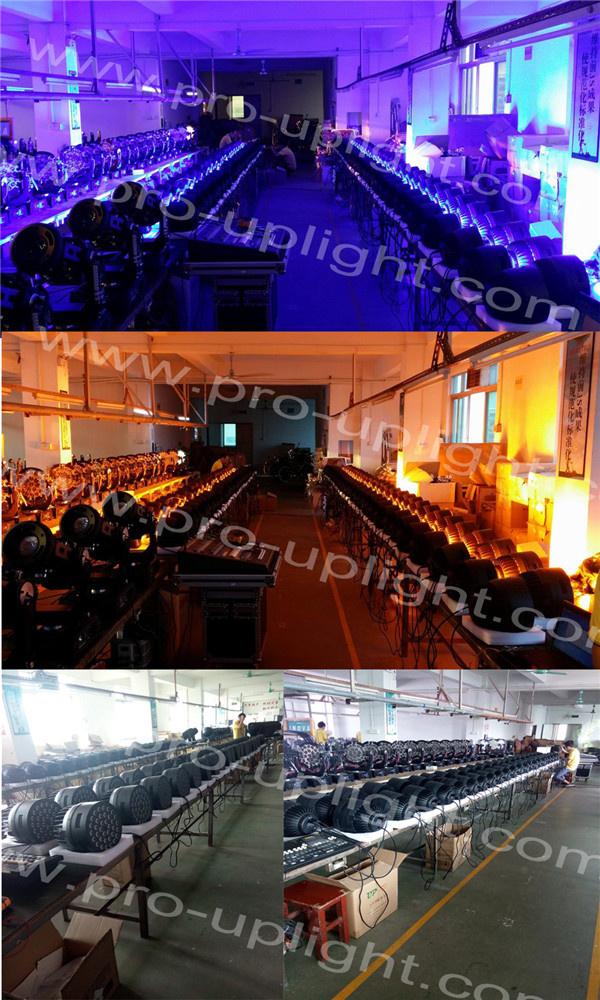

Production Line:
Channel List:| 6 channles | 10 channles | Function |
| CH 1 | Dimming |
| CH 1 | CH 2 | RED |
| CH 2 | CH 3 | GREEN |
| CH 3 | CH 4 | BLUE |
| CH 4 | CH 5 | WHITE |
| CH 5 | CH 6 | ULTRAVIOLET |
| CH 6 | CH 7 | AMBER |
| CH 8 | Strobe |
| CH 9 | Speed |
| CH 10 | Auto Running & Sound Control
|
| Prod Model: |
UP-PLAD3612 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Source: |
36PCS 12W 6 in 1 LED |
| LED Lifetime: |
80000~100000 Hours |
| LED Luminance: |
More Than 5, 000 Lux |
| Color: |
RGBWA +UV Color Mixing System |
| Gray Level: |
256*256*256 |
| Lens: |
High Efficiency and Transmission Large Lens |
| Lens Angle: |
40 Degree/20 Degree/25degree |
| Emitting Angle: |
45 Degree And25 Degree |
| Strobe: |
Multi-Function Strobe with Soft Light Effect |
| Control: |
DMX Control |
| Type: |
PAR36 |
| Waterproof: |
Not Waterproof |
| IP Rating: |
IP20 |
| Electric Current Type: |
AC |
| Shell Material: |
Aluminium Alloy |
| Certification: |
RoHS |
| Emitting Color: |
RGBWA+UV |
| Power: |
450 |
| Life: |
80, 000~100, 000 Hours |
| Input Voltage: |
AC100V-240V, 50/60Hz |
Uplight Stage Equipment (Guangzhou) Co., Ltd. is a high-tech company, which is engaged in R&D, manufacturing and marketing of stage equipments. The main products include moving lighting, LED stage equipments, follow spot, laser light, gobo light, etc.
We own a professional R&D team, who has 10 years experience in stage lighting. Our sales team can provide best service by engineers and technical staff members' supporting. We passed the ISO9001: 2000 quality management system standard as well. There are numerous domestic projects we have been undertaken, was praised by all the customers.
To become the leading stage lighting supplier on a global basis. We view our customers as the most important element in our business, strive to exceed the customer's expectation.
