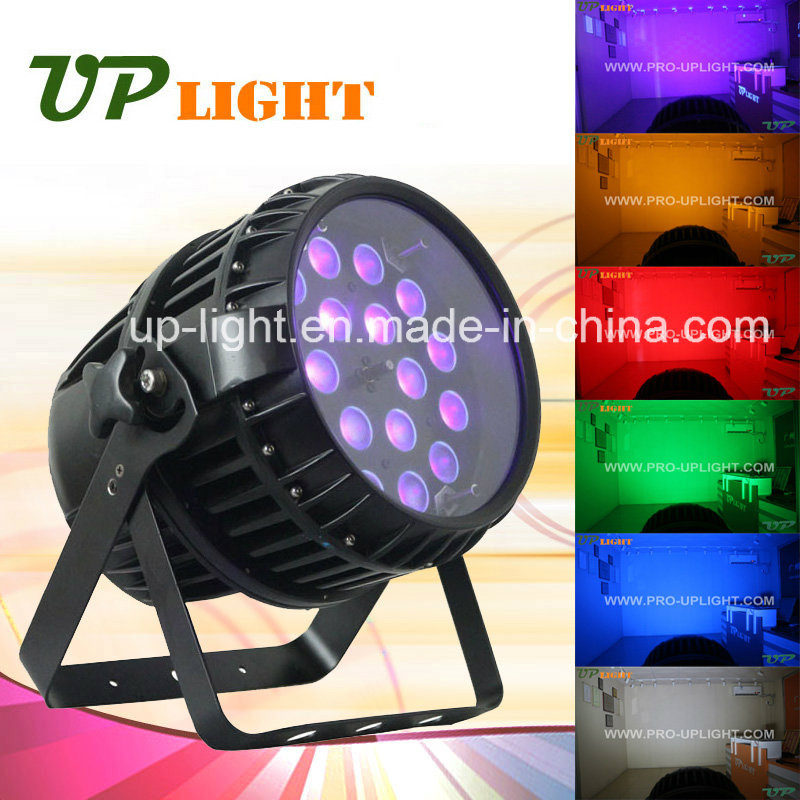

Stage Lighting 18X12W Zoom Waterproof 6in1 Outdoor LED PAR
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |

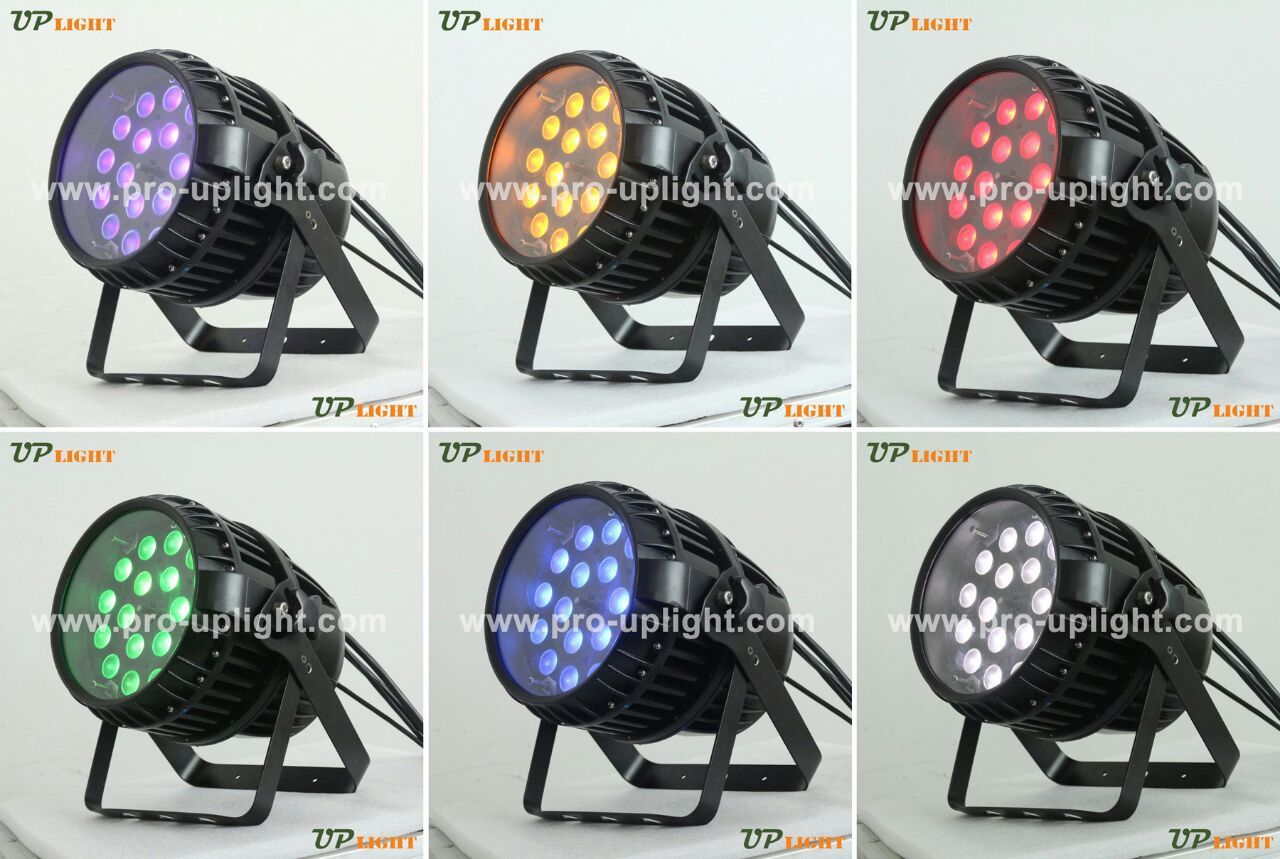

Stage Lighting 18X12W Zoom Waterproof 6in1 outdoor LED PAR Product PhotosWash Effect:18pcs*12W RGBWAUV 6in1 led par zoom UP-PF1812 |
Tech Spec |
Input voltage | AC100V-220V, 50/60HZ; |
Rated power | 240W; |
Light source | 18pcs 12W RGBWAUV 6in1 led chips; |
LED luminance: More than 5,000 lux; |
Average life: 80000~100000 hours; |
LED Lamp powr supply | Adopt power factor correction PFC switching power supply, PF> 0.99, the efficiency of up to 90%, it's real green and environmental protection; |
LED drive mode | Adopt static constant current drive mode with high precision and non-flicker (400HZ); |
Color system | Purple (Ultraviolet), Amber, Red, Green, Blue, White 6in1 Color mixing system with color rainbow which is reaching high colour rendering index and the most favorite color mixing way for lighting technician; |
Color effect | Uniform color washing effect with no colour shadows, rich saturated and more pastel lighting; |
Zoom | Linear zooming; |
Lens | 18pcs high efficiency and transmission large lens; |
Emitting angle | 10°~60°; |
Waterproof grade | IP64; |
Strobe | 1~10 strobes/seconds; |
Dimmer | 0~100% linear dimmer; |
Control mode | DMX512 signal 3-pins connection control, master-salve control, multiple connection in series control with self-programming mode, self-running mode, external control mode; |
Channel | 11 Channel; |
Other function | DMX address can be adjusted; DMX address extension function; IP address extension function; |
Working temperature | -15° C ~45° C; |
Shell material | Aluminum alloy; |
Application | Lighting for TV studio, theater, opera house, auditorium, stage, T-stage, concerts, and vocal concert, DJ effect, disco effect, club effect, party effect etc; |
Packing size | 300×300×380mm; |
Gross weight | 10kg |
10 channles | Function |
CH 1 | Dimming |
CH 2 | RED |
CH 3 | GREEN |
CH 4 | BLUE |
CH 5 | WHITE |
CH 6 | ULTRAVIOLET |
CH 7 | AMBER |
CH 8 | Strobe |
CH 9 | Speed |
CH 10 | Auto Running & Sound Control |
CH 11 | Zoom |

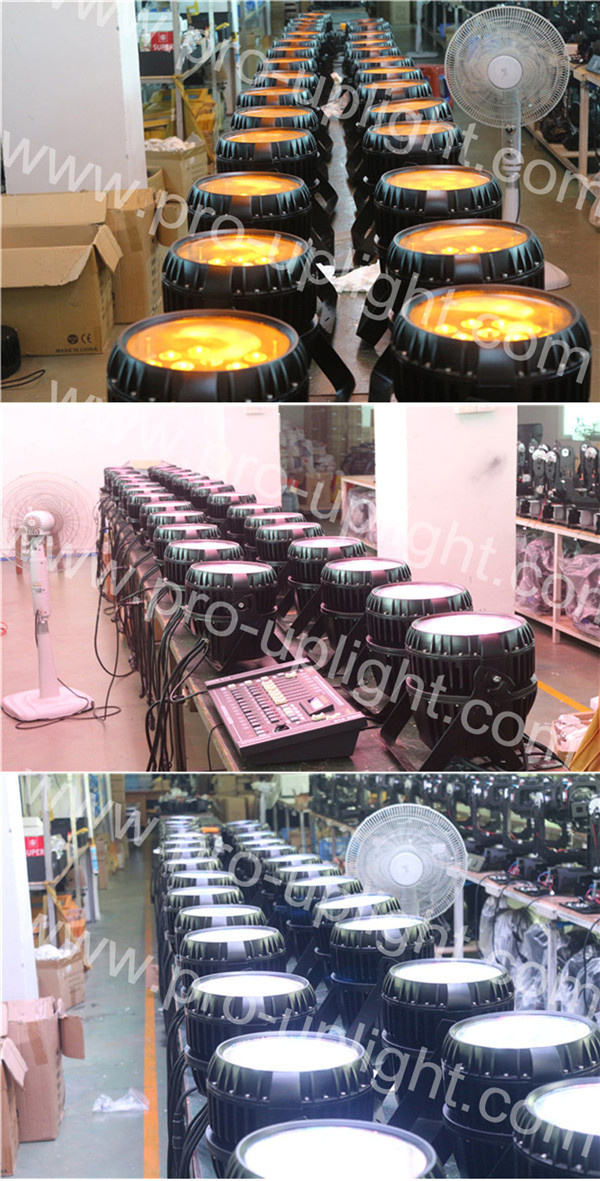

Production Line:
Prod Model: |
UP-PF1812 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Light Source: |
18PCS*12W CREE |
LED Luminance: |
More Than 5, 000 Lux |
Average Life: |
80000~100000 Hours |
Color System: |
RGBWA UV 6in1 |
Color Effect: |
Uniform Color Washing |
Zoom: |
Linear Zooming |
Lens: |
High Efficiency and Transmission Large Lens |
Lens Angle: |
10 Degree-60 Degree |
Power: |
12W |
Waterproof: |
Waterproof |
IP Rating: |
IP66 |
Life: |
80000h |
Electric Current Type: |
AC |
Shell Material: |
Aluminium Alloy |
LED Chips: |
CREE |
Certification: |
RoHS |
Type: |
PAR18 |
Emitting Color: |
RGBWA+UV |
Input Voltage: |
AC100V-220V, 50/60Hz |
Uplight Stage Equipment (Guangzhou) Co., Ltd. is a high-tech company, which is engaged in R&D, manufacturing and marketing of stage equipments. The main products include moving lighting, LED stage equipments, follow spot, laser light, gobo light, etc.
We own a professional R&D team, who has 10 years experience in stage lighting. Our sales team can provide best service by engineers and technical staff members' supporting. We passed the ISO9001: 2000 quality management system standard as well. There are numerous domestic projects we have been undertaken, was praised by all the customers.
To become the leading stage lighting supplier on a global basis. We view our customers as the most important element in our business, strive to exceed the customer's expectation.
