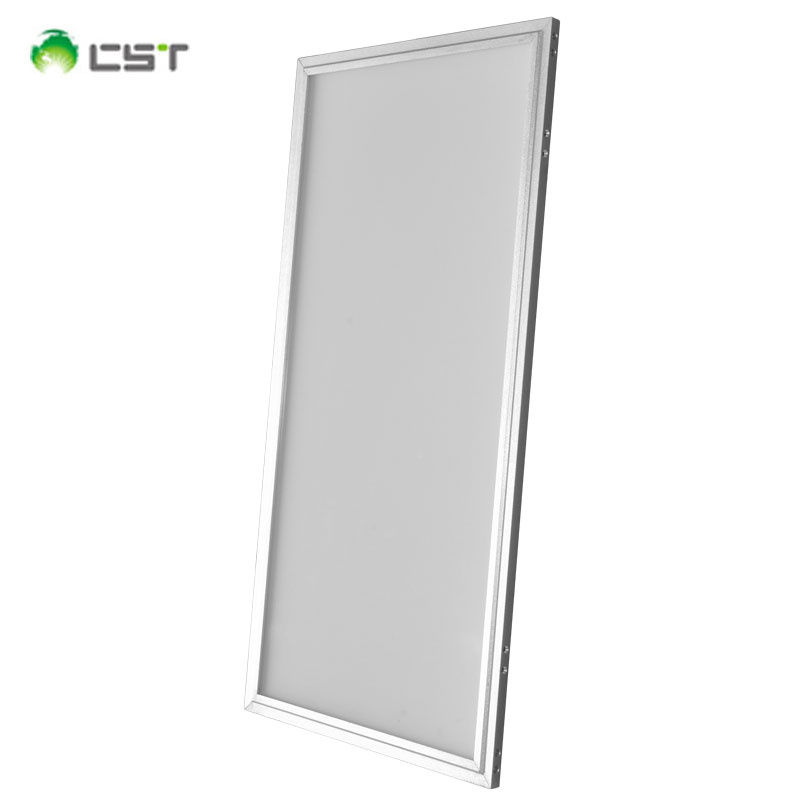

CST Popular Design Ultra Thin Disffused 30*60cm 27W LED Ligtht Panel:
1, Advantages of led Panel lamp:
Design Simply replace the grill lamp or false ceiling, or hang from the roof using chains;
LED Panels with Super Slim of 10mm thinckness, making for attractive and versatile signage;
Edgewise, the LEDs emit evenly lighting through a LGP ( Acrylic ), the luminosity is bright, soft and comfortable for eyes;
Cooler than traditional display, versatile in size, shape and configuration;
LED Panels with four Sides illuminating,beat heat sink,with temperature rise less than 20 degree,good for extending the panel's lifespan;
Optimized circuit design ensures no interference with any other LEDs when a single one fails.
2, Feature:
1).Pure aluminum material,excellent heat dissipation,ultra-thin design,break through the traditional.
2).Simple design,appearance elegant,beautiful.
3).Perfect seamless metal wiredrawing effect.
4).Professional PMMA diffusion platem with high reflective paper,to ensure the high efficiency of light.
5).Use side lighting,lighting downy and uniformity,no ultraviolet and infrared,green lighting.
6).Input full voltage range of constant current,ensure the product life and brightness is not affected by the voltage wave.
7).High quality LED chip,high luminous efficiency,high color rendering index,energy saving up to 80%.
8).Long lifetime:more than 50000 hours.
9).Convenient installation,strong operability
3, Parameters of 60*60cm 36W LED Panel lamp:
| Model No | CST-LP-3060-27W |
| Power | 27W |
| Input Voltage | AV85-265V, 50-60Hz |
| Shell | Acrylic |
| Light Guide Plate | PMMA Light Guide Plate |
| LEDs | 135pcs SMD2835 |
| Size | 300*600*10mm |
| Luminous Flux | 3500lm |
| Color Temperature | 2700-6500K (Optional) |
| CRI | Ra>80 |
| Beam Angle | 150degree |
| Power Factor | >0.95 |
| Lifespan | >50,000hours |
| Warranty | 2 years |
4, Installation:
1, Fix the LED Ceiling Panel;
Embedded installation and replace the ceiling with the LED panels which has the same specifications;
A, Take off the ceiling and put the LED pannels into the ceiling from the diagonal;
B, Fix the LED panels to the T shelf.
(2,) Inhaled installation
Mount the ceiling frame to the hole, fix the smd led panel light as showed in the above A.
2, Fix LED Panel lamp
Fix the wall frame to the wall with screws;
(2,) Settle the driver into the frame;
(3,) Screw the ceiling on four angles of the frame and tighten the screws;
(4,) Fix the hanging rope to the ceiling;
(5,) Screw the hanger into the threads in the four angles of the panel;
(6,) Adjust to the proper height.
5. Applications of LED Panel:
1).Hotels, Conference / Meeting rooms
2).Factories & Offices, Commercial Complexes
3).Residential / Institution Buildings
4).Public buildings, hosing and the underground garage
5).Frozen ark of the supermarket (no pollution to food )
6).Schools, hospital and all places that need energy saving and high brightness.
6. CST LED Panel Series:
Size | Power | Lumen | Efficiency | CRI | Beam | Voltage | Dimmable | PF | Warranty |
| 30*30cm | 18W | 1580LM | 85-90lm/w | >80 | 150degree | 85-265V | Yes | >0.95 | 2 years |
| 30*60cm | 27W | 2350LM | 85-90lm/W | >80 | 150degree | 85-265V | Yes | >0.95 | 2 years |
| 60*60cm | 36W | 3500LM | 85-90lm/W | >80 | 150degree | 85-265V | Yes | >0.95 | 2 years |
| 30*120cm | 48W | 4120LM | 85-90lm/W | >80 | 150degree | 85-265V | Yes | >0.95 | 2 years |
| 60*120cm | 72W | 6280LM | 85-90lm/W | >80 | 150degree | 85-265V | Yes | >0.95 | 2 years |
Condition& Terms:
Delivery term: FeDex / DHL / UPS for negotiation;
Payment term: T/T, Paypal ,WesternUnion ;
Lead time: Sample within 5 working days, Quantity order for 12 working days.
RFQ for LED Panel light
Q:Are you factory or trading company?
A:factory with 6-year experiences in manufacturing of LED Panel lighting,
Q:Do you have SMT?
A:Yes,we have Samsung SMT,
Q:Do you have burn-in process for each batch? If so, how many hours?
A:Yes,we have the Full automotic Anging machine,the ageing time is 8-12hours
before shipping.
Q:What's the certificate do you have?
A: CE,RoHS,FCC,SAA approved,
Q:What's the MOQ?
A:we have no limited MOQ.
Q: What's the delivery time?
A:Sample/small order:5dasy, mass order:12days
Q:What's the warranty?
A:50000hs lifespan (<8% decaying after 6000hs aging),3 years warranty.
Q:Do you accept OEM&ODM?
A:Yes.
Chinst (CST) Illuminication Co., Ltd, located in Shenzhen city in China, is professionally engaged in R&D, manufacturing, marketing and installation guide of LED products. The engaged LED products in CST Company involves LED Panel Light, LED Tube Light, LED Flood Light, LED Highbay Light, LED Tunnel Light, LED Street Light which are used around the world in decorating millions of homes, landmarks, buildings, workplaces, shopping centers and alike, and make the world more colorful.
CST excellent developing group, advanced manufacturing base, expertized instrument can research and develop new products according to market requirement and client' S demand, now CST products with most high-quality and reasonable price is welcomed by numerous users.
CST have implemented ISO9001 quality management standard, production quality strictly according to the managemet system. All products pass CE, RoHS, or SGS certificates and other authorative certificates required by other clients in the world. Each new kind LED product from CST Company must be test at least 6 months before mass production. We also set up a whole system of purchase, producing, final examine, project test for controlling every production link so that to ensure the quality. Each batch of LED finished products from CST Company must be 100% testing before putting into market. In a word, our concept to product quality is "pursuing best, reaching better".
Every year, CST join in different Fairs held in home and abroad, e. g. Canton Fair, HK international lighting fair, Frankfurt lighting fair, Italy lighting exhibition, etc. Besides, ODM/OEM are also a part of business that we have been doing. We work closely with our clients to ensure their complete satisfaction. Our motto is quality, efficiency and competitive price. We believe that good business comes from first-class Quality and excellent reputation. And we sincerely hope to establish long term cooperation with new and Old customers.
