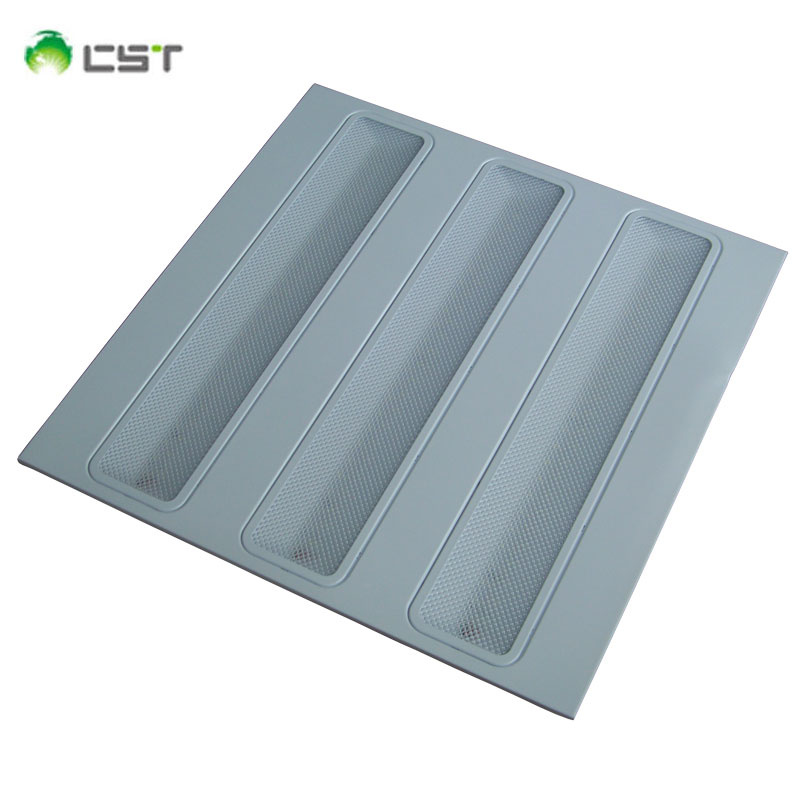

LED Tube Panel Light
High efficiency & energy saving. Under the condition of the same llumination, it saves more than 67% energy compared with the traditional lamp.
Long life span, using semiconductor chip as the light resource, the life can be over 50,000hrs.
No UV & IR . It won't distribute ray radiation
Eco-friendly, No Hg & Xe ,or other harmful element. Recyclable, also it won't generate EMI.
High performance external constant current drivers,no stroboscopic, good for eyesight protection;
Housing:
600x600 led lights with 0.6mm cold-roll steel housing under white powder coating
Diffuser:
600x600 led lights with PMMA opal diffuser with 90% optical efficiency
Electrical:
suitalbe for LED line of different brands, such as Philips, Osram, Tridonic
Standard driver for LED line, or optional with dimming system.
Mounting:
Recessed mounting, housing rests on T-bars with suspension hole available for chain.
Applications:
1. Commercial lighting
2. Office lighting
3. Warehouse lighting
4. Supermarket lighting
5. Hotels lighting
6. Homes lighting
7. Hospitals lighting
8. Classrooms lighting
9. Conference rooms lighting
10. Other indoor lighting places
Power parameters:
| Item | Parameter |
| Input Voltage/Frequency | AC85-265V 50/60Hz |
| Input Current(Typ) | 0.283A |
| Output Voltage | DC39-42V |
| Output Current | 700mA |
| Power | 32W |
| Power Factor(Typ) | PF>0.90 |
| Efficiency(Typ) | η>0.85 |
Lighting parameters
| LED Chips Quantity | 68pc SMD5730 |
| Lumen Output | 3200±100lm |
| Color Temperature | 3000K/4000K/6000K |
| Color Rendering Index | Ra≥80 |
| Viewing Angle | 120° |
| Dimensions | 600*600mm |
| Operating Temperature | -25~60 ºC |
| Storage Temperature | -40~80 ºC |
| IP Grade | IP42 |
| Lumen Maintenance | >85%(5000Hrs) |
| Life-span | 50000Hrs |
| Appliance Class | ClassII |
Packing:
Lamp Net Weight: 2.4kg;
Lamp size: 600*600*30mm
Packing: 1pc per bag, bag size: 630*630*75mm, bag weight: 2.95kg
5pc bag per Carton, CTN size: 630*630*375mm, CTN weight: 13.2kg.
