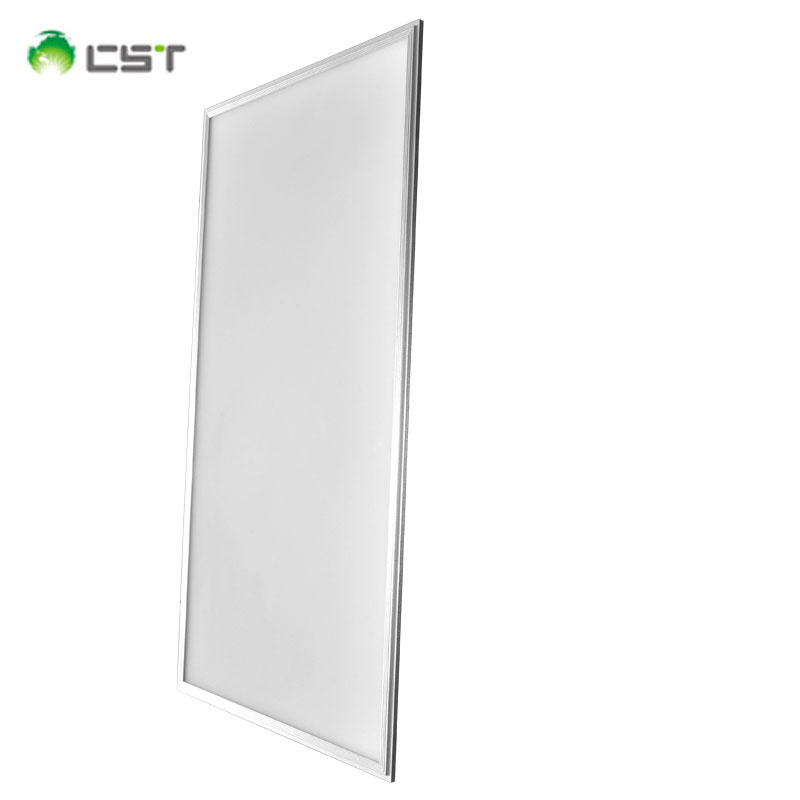

Chinst popular design 120*60cm 60W LED square Panel light:
1, Advantages of led panel celing:
design Simply replace the grill lamp or false ceiling, or hang from the roof using chains;
ceiling panel with Super Slim of 10mm thinckness, making for attractive and versatile signage;
Edgewise, the LEDs emit evenly lighting through a LGP ( Acrylic ), the luminosity is bright, soft and comfortable for eyes;
Cooler than traditional display, versatile in size, shape and configuration;
ceiling panel with four Sides illuminating,beat heat sink,with temperature rise less than 20 degree,good for extending the panel's lifespan;
Optimized circuit design ensures no interference with any other LEDs when a single one fails.
2, Feature of 60W LED Panel Ceiling:
80% less power consumption than traditional lighting source;
Panel LED ceiling from Epistar or San'an with superb feature;
Ultra slim and light, with thickness only 10mm;
Ceiling panel with external high PF Constant Current LED Driver,instant start, No flickering and No humming, safe and reliable;
Long lifespan >50,000hours, 3 years warranty,CE,ROHS approved.
3, Applications of LED Panel lamp:
Ceiling panel are used for Ceiling, Walls, art gallery, the car, the counter,etc.
4, Installation of 60W LED Panel Ceiling:
1, Fix the Panel Ceiling;
Embedded installation and replace the ceiling with the LED Panel lighting which has the same specifications;
A, Take off the ceiling and put the Ceiling panel into the ceiling from the diagonal;
B, Fix the Ceiling panel to the T shelf.
(2,) Inhaled installation
Mount the ceiling frame to the hole, fix the Ceiling panel as showed in the above A.
2, Fix Panel Ceiling
Fix the wall frame to the wall with screws;
(2,) Settle the driver into the frame;
(3,) Screw the ceiling on four angles of the frame and tighten the screws;
(4,) Fix the hanging rope to the ceiling;
(5,) Screw the hanger into the threads in the four angles of the panel;
(6,) Adjust to the proper height.
Chinst Popular Design 120*60CM 60W Ceiling panel Parameters:
Model No | CST-LP-12060-60W |
| Power | 60W |
| Size | 1200*600*10mm |
| LED Qty | 300 SMD2835 |
| Lumens | 5300lm |
| CCT | 2800-6500k for option |
| CRI | > 80 |
| Beam Angle | 120 degree |
| Material | Aluminum Alloy + Acrylic |
| Power Factor | 0.93 |
| Certificate | CE,ROHS,FCC,SAA |
| Warranty | 2 years |
