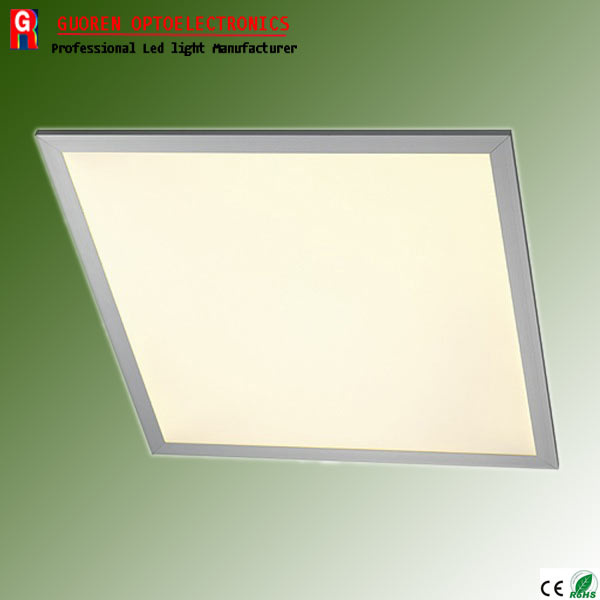

1. Specification:
1. Model: GR-PL0606-36W
2. Input Vol: AC85~265VAC, 50-60 Hz
3. Power consumption: 36W
4. LED Type: Taiwan LumenMax SMD3014
5. Dimension: 600x600X11mm
6. CCT: 2800k~3200k, 4000k~4500k, 5500k~6500k
7. CRI: >Ra75
8. Lumens: 3100lm± 5%
9. Beam angle: >110 deg
10. Efficacy: 80lm/w
11. IP rating: IP42
12. Power factor: >0.95
13. Guarantee: 3Years
14. Life expectancy: >40, 000 hours(>L70).
15. Main material: Japanese Acrylic + 6063 Aluminum
16. Dimmable is available.
2. General Features of LED Panel Light:
1. Recessed LED Panel, no need any accessories
2. LED: Taiwan Lumenmax LED, light efficiency of LED panel reach to 80lm/w
3. Side emitting, super light and thickness, less than 11mm
4. Excellent PMMA optical light guide panel used for uniform lighting effect
5. Beam angle: >110° , Ra>75, IP42 CLASS
6. Certificate: CE, RoHS, Driver with UL approval
7. Warranty: 3 years.
|
MAIN SPECIFICATIONS (T=25 ) |
|
NUMBER |
ITEM |
DESCRIPTION |
|
01 |
Input Voltage |
AC100-240V 50-60Hz |
|
02 |
LED |
360pcs |
|
03 |
Power |
36W |
|
04 |
LED Efficiency |
70-80Lm/W |
|
05 |
Initial Flux |
>2880Lm (Cool White)
>3730Lm (Natural White)
>2590Lm (warm white) |
|
06 |
Power factor |
>0.95 |
|
07 |
Color |
Warm White/Natural White/Cool
White/Red/Green/Blue/Yellow |
|
08 |
Color Temperature |
2700-3300K (Warm White)
4000-5000K (Natural White)
5300-7000K (Cool White) |
|
09 |
Center Illuminance |
1M:1250 Lux
2M:370 Lux
3M:168 Lux |
|
10 |
Beam Angle |
120° |
|
11 |
Life Time |
>50,000 Hour |
|
12 |
Operating Temperature |
-25 to +55 |
|
13 |
Storage Temperature |
-40 to +65 |
|
14 |
Connect Wire |
Brown L
Blue N
Yellow/Green G |
|
15 |
Certifications |
CE, RoHS |
|
16 |
Weight |
4.2Kg |
|
17 |
Size |
595×595×11.5mm |
|
18 |
IP Code |
IP20 |
