Model No.: GR-MF0606-36W
Light Source: LED
Appearance: Square
Type: Flat-Type
Emitting Color: White
Certificate Standard: CE&RoHS/ISO9001
Cover Material: Acrylic
Base Material: Aluminium Alloy
Dimension: 600x600x11.8mm
Power Consumption: 36W
Color Temperature: Warm White/Pure White/Cold White
Lumen: 2300-2800lm
Dimmable Way: IR/RF Remote Controller or Dali System
Emitting Way: Edges
Frame Color: Silver/White/Black
Shape: Square
Install Way: Embededsuspended/Surface Mounted
Extra Function: Emergency/Cct and Brightness Adjustable
Export Markets: Global

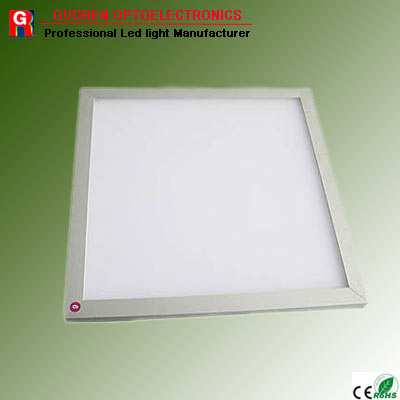

1. Advantages of LED Panel
A. Ultra-thin, modern, simple and elegent
B. Energy-saving, no harmful hazardous ingredients, environmental-friendly
C. Various Installation ways: Recessed /Suspended/Surface Mounted
D. A good replacement for traditional grille lamp.
|
MAIN SPECIFICATIONS (T=25 ) |
|
NUMBER |
ITEM |
DESCRIPTION |
|
01 |
Input Voltage |
AC100-240V 50-60Hz |
|
02 |
LED |
360pcs |
|
03 |
Power |
36W |
|
04 |
LED Efficiency |
70-80Lm/W |
|
05 |
Initial Flux |
>2880Lm (Cool White)
>3730Lm (Natural White)
>2590Lm (warm white) |
|
06 |
Power factor |
>0.95 |
|
07 |
Color |
Warm White/Natural White/Cool
White/Red/Green/Blue/Yellow |
|
08 |
Color Temperature |
2700-3300K (Warm White)
4000-5000K (Natural White)
5300-7000K (Cool White) |
|
09 |
Center Illuminance |
1M:1250 Lux
2M:370 Lux
3M:168 Lux |
|
10 |
Beam Angle |
120° |
|
11 |
Life Time |
>50,000 Hour |
|
12 |
Operating Temperature |
-25 to +55 |
|
13 |
Storage Temperature |
-40 to +65 |
|
14 |
Connect Wire |
Brown L
Blue N
Yellow/Green G |
|
15 |
Certifications |
CE, RoHS |
|
16 |
Weight |
4.2Kg |
|
17 |
Size |
595×595×11.5mm |
|
18 |
IP Code |
IP20 |
