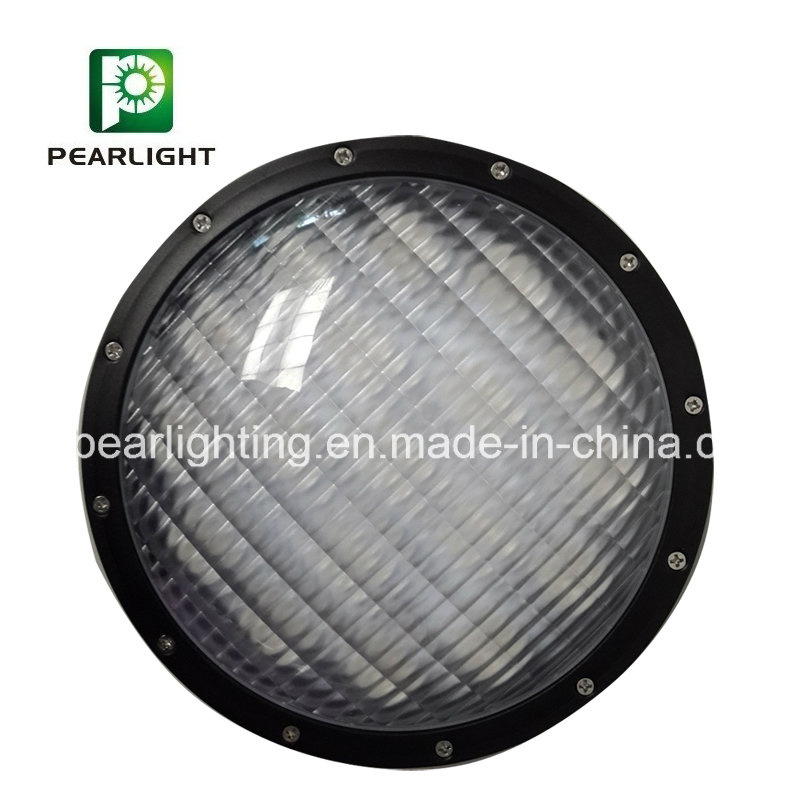

Competitive 20*1W LED PAR56 Swimming Pool Lights
Features:
Sole & Patented design
IPX8 Waterproof can be used under the water 20 meters depth
5 kinds of RGB control method: Remote control, Wi-Fi Control, DMX Control,
Automatic control, External control (wire control)
Size: Base Screw Terminal: 177(diameter) * 105(height) mm
Base GX16D: 177(diameter) * 124(height) mm
Base G53: 177(diameter) * 108(height) mm
Base E27: 177(diameter) * 145(height) mm
Transparent PC cover, anti-corrosion, shock-proof, unbreakable, safe transportation
Constant driver to make sure LED light working stably, avoid any flashing and noisy
Voltage: AC/ DC 12V, Frequency: 50/60HZ
High quality and brightness LED source
Color: RGB, 14 kinds of color changing mode
Single color white, red, green, blue, yellow
Beam angle: SMD 3528-120° , SMD5050-120° , COB-120° , 1W/3W-25° /30° /45° /60°
Life span 50000 hours
Over current protection
Applications: Swimming pool, water-fall, park, fountain spring, garden.
COLOR: Single color or RGB
(1) Single color: White(pure white, warm white, cool white), Red, Green, Blue, Yellow.
(2) RGB: 14 kinds of RGB color Change program
1. Red (solid color red)
2. Green (solid color green)
3. Blue (solid color blue)
4. Red + green
5. Green + blue
6. Red + blue
7. Red + green + blue = white
8. Dynamic change: Red change to green
9. Dynamic change: Green change to blue
10. Dynamic change: Red change to blue
11. Dynamic RGB change
Dynamic color change: From Red to Green, then Blue
12. Dynamic & Colorful change
Dynamic color change: From Red to Green, then Blue, Red+blue, Green+blue, Blue+red, RGB
13. RGB fading effect
Fading from Red to Green, then Blue
14. Colorful fading effect
Control method: Remote control w/RGB controller, WiFi control, DMX control, Remote & switch control Auto control
Caution:
1. Please read product manual carefully and make sure the working circumstance is compliant with the condition requests in the manual before use the lamps.
2. Make sure that power is cut off before connect the lamps to power supply systems.
3. For lamp power above 20W, should be used under water.
4. Lamps require Toroid transformer, electronic transformer is not applicable.
| Specification | Parameters |
| Model No. | PT-P56A-20×1W |
| LED Qty | 1 pcs 20W COB |
| Input Voltage | AC/DC 12-13V |
| Frequency | 50/60 Hz |
Power | 22±1w (White)
|
| Color Temperature | w.w.3000-3500K
p.w.6000-7000K
c.w.8000-10000K |
| Luminous Flux | Luminous Flux (Lm):
White1600±10%Lm |
| Color Rendering Index(CRI) | P.W.Ra≥70 |
| Replace halogen | 150W |
| Wave length(R/G/B) | / |
| Beam angle | 120° |
| Dimension | 177 x 105mm |
| Working temperature | -10~+50ºC |
Storage
Temperature | -10~+50ºC |
| Constant driver | yes |
| IP rate | IP68 |
| Packing | 20 Pcs/ctn
63*42*42mm G.W.30 kg |
