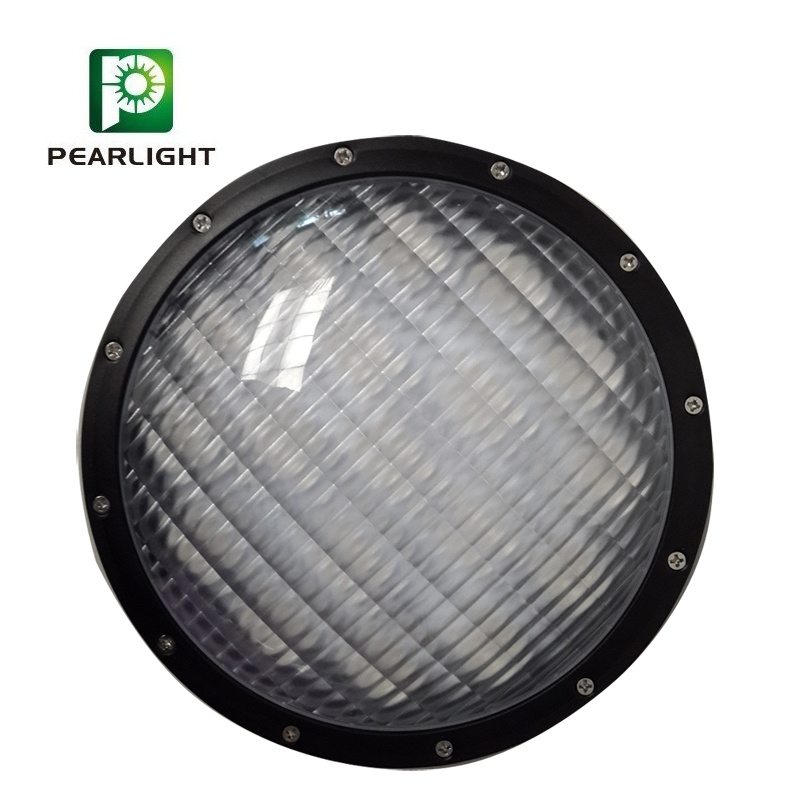

LED PAR56 Swimming Pool/ Underwater Light
Price: |
US $ 47.75-52.53/Piece |
Trade Terms: |
FOB |
Min Order: |
6/Piece |
Pay Type: |
L/C |
Product features
Features:
Sole & Patented design
IP68 Waterproof can be used under the water 20 meters depth
5 kinds of RGB control method: Remote control, Wi-Fi Control, DMX Control,
Automatic control, External control (wire control)
Size: 177(diameter) * 106(height) mm
316stainless steel cup which ensure lamp cup/body unbreakable & good heat dissipation, and make sure of less lumens decline.
Transparent PC cover, anti-corrosion, shock-proof, unbreakable, safe transportation
Constant driver to make sure LED light working stably, avoid any flashing and noisy
Voltage:AC/ DC 12V, Frequency: 50/60HZ
High quality and brightness LED source
Color: RGB, 14 kinds of color changing mode
Single color - white, red, green, blue, yellow
Beam angle:DIP-25°or 120°,SMD 3528-120°, SMD5050-120°,high power-25°or 30°or 45°or 60°;
Life span 50000 hours
Over current protection
Applications: Swimming pool,water-fall, park,fountain spring,garden.Main parameters:
Specification | Parameter |
Model No. | PT-P56B-18*1W | PT-P56B-18*3W |
LED Qty. | 18 pcs 1W High power | 18 pcs 3W(R,G,B 3in1) |
Input Voltage | AC/DC 12V | AC 12V |
Input Frequency | 50/60 Hz | 50/60 Hz |
Power | 19±1 W(W/G/B) / 14±1 W(red) 18±1 W(RGB) | 25±1.5 W |
Luminous flux | 1300Lm(W) 400±10%(R) / 800±10%(G) 200±10%(B) / 450±10%(RGB) | RGB: 900±10% Lm White: 2000±10%Lm |
Wave Length (RGB) | R:621 -625 / G:518 -520 B:464 -467 K/nm | R:621 -625 / G:518 -520 B:464 -467 K/nm |
Color temperature | p.w.6000~7000k w.w.3000-3500k c.w.8000~12000k | p.w.6000~7000k w.w.3000-3500k c.w.8000~12000k |
Dimension | 177×106 mm | 177×106 mm |
Working temperature | -10-60ºC | -10-60ºC |
Storage Temperature | -10-60ºC | -10-60ºC |
Base | screw terminal | screw terminal |
Constant driver | yes | yes |
IP rating | IP68 | IP68 |
Constant driver & overcurrent protection | yes | yes |
Packing | 20 pcs in 64.5x40.5x40.5cm ctn N.G: 18 kgs | 20 pcs in 64.5x40.5x40.5cm ctn N.G: 18 kgs |
Specification | Parameter |
Model No. | PT-P56B-105S5 | PT-P56B-252D5 | PT-P56B-315D5 |
LED Qty. | 105pcs SMD5050 | 252 pcs SMD3528/DIP 5mm | 315 pcs SMD3528/DIP 5mm |
Input Voltage | AC/DC 12V | AC/DC 12V | AC/DC 12V |
Input Frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz |
Power | 19±1 W(W/G/B) 14±1 W(red) 18±1 W(RGB) | 15±1 W(W/G/B) 11±1 W(red) 14±1 W(RGB | 19±1 W(W/G/B) 14±1 W(red) 18±1 W(RGB |
Luminous flux | 1200Lm(W) 350±10%(R) 750±10%(G) 180±10%(B) 430±10%(RGB) | 1000Lm(W) 300±10%(R) 650±10%(G) 150±10%(B) 350±10%(RGB) | 1250Lm(W) 400±10%(R) 800±10%(G) 200±10%(B) 450±10%(RGB) |
Working temperature | -10-60ºC | -10-60ºC | -10-60ºC |
Color temperature | p.w.6000~7000k w.w.:3000-3500k c.w.8000~12000k | p.w.6000~7000k w.w.:3000-3500k c.w.8000~12000k | p.w.6000~7000k w.w.:3000-3500k c.w.8000~12000k |
Color temperature (RGB) | R:621-625 K/nm G:518-520 K/nm B:464-467 K/nm | R:621-625 K/nm G:518-520 K/nm B:464-467 K/nm | R:621-625 K/nm G:518-520 K/nm B:464-467 K/nm |
Dimension | 177×106 mm | 177×106 mm | 177×106 mm |
Base | screw terminal | screw terminal | screw terminal |
Constant driver | yes | yes | yes |
IP rate(w/housing) | IP68 | IP68 | IP68 |
Constant driver & overcurrent protection | yes | yes | yes |
Packing | 20 pcs in 64.5x40.5x40.5cm ctn N.G: 15 kgs | 20 pcs in 64.5x40.5x40.5cm ctn N.G: 15 kgs | 20 pcs in 64.5x40.5x40.5cm ctn N.G: 15 kgs |
| Description | PT-P56B-25W SMD 5730 | PT-P56B-35X1W SMD 5730 | |
| Led light source | 48 pcs SMD 5730 | 72 pcs SMD 5730 | |
| Input Voltage | AC/DC 12V | AC/DC 12V | |
| Input Frequency | 50/60 Hz | 50/60 Hz | |
| Power | 26±1 W | 36±1.5 W | |
| Luminous flux | W.W.:1600±10%lm P.W.: 1700±10%lm C.W.: 1500±10%lm | W.W.:2400±10%lm P.W.: 2600±10%lm C.W.: 2300±10%lm | |
| Working temperature | -10-60ºC | -10-60ºC | |
| Color temperature | p.w.6000~7000k w.w.3000-3500k c.w.8000~12000k | p.w.6000~7000k w.w.3000-3500k c.w.8000~12000k | |
| Dimension | 177×106 mm | 177×106 mm | |
| Storage Temperature | -10-60ºC | -10-60ºC | |
| Base | screw terminal | screw terminal | |
| N.W. | 0.58 KG | 0.60 KG | |
| G.W. | 0.80 KG | 0.82 KG | |
| Constant-current driver | yes | yes | |
| IP rate | IP68 | IP68 | |
| Overcurrent protection | yes | yes | |
| Packing | 20 pcs in 64.5x40.5x40.5cm ctn N.G: 17 kgs | 20 pcs in 64.5x40.5x40.5cm ctn N.G: 17 kgs | |
| | | | | | | | |
Description | PT-P56B-20X1W 20w COB LED | PT-P56B-25X1W 25w COB LED | PT-P56B-30X1W 30w COB LED | PT-P56B-35X1W 35w COB LED |
Led light source | 1pc 20W(COB LED) | 1pc 25w(COB LED) | 1pc 30w(COB LED) | 1pc 35w(COB LED) |
Input Voltage | AC/DC 12V | AC/DC 12V | AC/DC 12V | AC/DC 12V |
Input Frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz |
Power | 22±1 W | 26±1 W | 33±1 W | 36±1.5 W |
Luminous flux | W.W.:1500±10%lm P.W.: 1600±10%lm C.W.: 1400±10%lm | W.W.:1900±10%lm P.W.: 2000±10%lm C.W.: 1800±10%lm | W.W.:2500±10%lm P.W.:2600±10%lm C.W.: 2400±10%lm | W.W.:2800±10%lm P.W.:3000±10%lm C.W.:2700±10%lm |
Working temperature | -10-60ºC | -10-60ºC | -10-60ºC | -10-60ºC |
Color temperature | p.w.6000~7000k w.w.:3000-3500k c.w.8000~12000k | p.w.-6000~7000k w.w.:3000-3500k c.w.-8000~12000k | p.w.-6000~7000k w.w.:3000-3500k c.w.-8000~12000k | p.w.-6000~7000k w.w.:3000-3500k c.w.-8000~12000k |
Dimension | 177×106 mm | 177×106 mm | 177×106 mm | 177×106 mm |
Storage Temperature | -10-60ºC | -10-60ºC | -10-60ºC | -10-60ºC |
Base | screw terminal | screw terminal | screw terminal | screw terminal |
N.W. | 0.6 KG | 0.61 KG | 0.62 KG | 0.63 KG |
G.W. | 0.82 KG | 0.83 KG | 0.84 KG | 0.85 KG |
Constant-current driver | yes | yes | yes | yes |
IP rate | IP68 | IP68 | IP68 | IP68 |
Overcurrent protection | yes | yes | yes | yes |
Packing | 20 pcs in 64.5x40.5x40.5cm ctn N.G: 17 kgs | 20 pcs in 64.5x40.5x40.5cm ctn N.G: 17 kgs | 20 pcs in 64.5x40.5x40.5cm ctn N.G: 17 kgs | 20 pcs in 64.5x40.5x40.5cm ctn N.G: 17 kgs |
COLOR: Single color or RGB
(1) Single color: White (pure white, warm white, cool white), Red, Green, Blue, Yellow.
(2) RGB: 14 kinds of RGB color Change program
1. Red (solid color - red)
2. Green (solid color - green)
3. Blue (solid color - blue)
4. Red + green
5. Green + blue
6. Red + blue
7. Red + green + blue = white
8. Dynamic change: red change to green
9. Dynamic change: green change to blue
10. Dynamic change: red change to blue
11. Dynamic RGB change
Dynamic color change: from Red to Green, then Blue
12. Dynamic & Colorful change
Dynamic color change: from Red to Green, then Blue, Red+ blue, Green+ blue, Blue+ red, RGB
13. RGB fading effect
Fading from Red to Green, then Blue
14. Colorful fading effectCaution :
1.Please read product manual carefully and make sure the working circumstance is compliant with the condition requests in the manual before use the lamps.
2.Make sure that power is cut off before connect the lamps to power supply systems.
3.For lamp power above 20W, should be used under water.
4.Lamps require Toroid transformer, electronic transformer is not applicable.
Prod Model: |
PT-P56B-18*1W |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Luminous Flux: |
1300lm(W) |
Emitting Color: |
RGB |
Usage: |
Garden |
Life: |
50000h |
IP Rating: |
IP68 |
Certification: |
RoHS |
Power Source: |
AC |
Electric Current Type: |
DC |
Input Voltage: |
12V |
LED Chips: |
Epistar |
Power: |
19 |
