Home LED Light Products Energy Saving of PT-CE39-X80A-A00I LED Corn Light

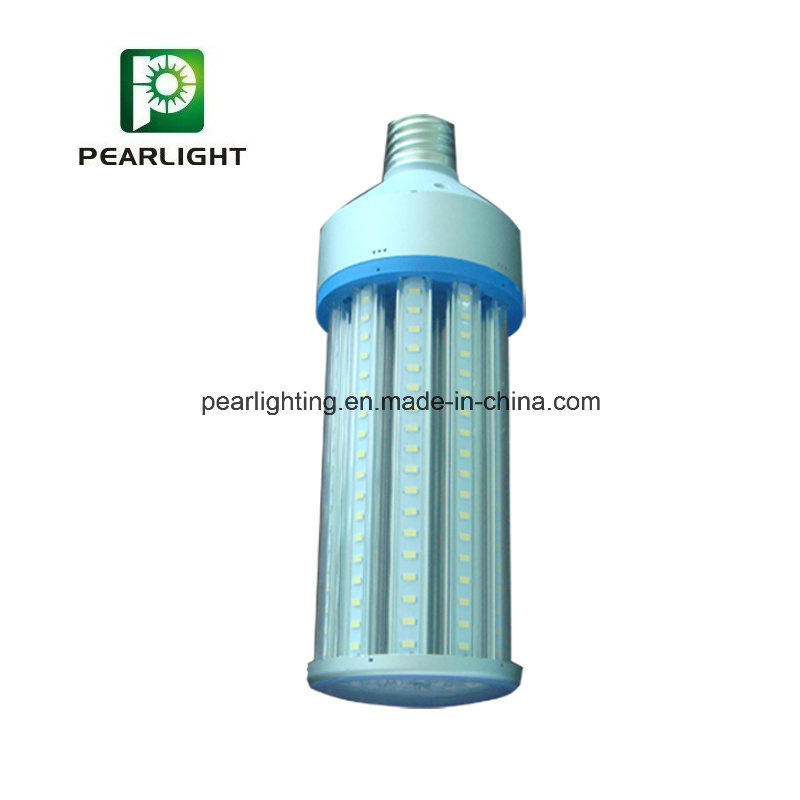

Energy Saving of PT-CE39-X80A-A00I LED Corn Light

Energy Saving of PT-CE39-X80A-A00I LED Corn Light
Price: US $ 80.33-86.79/Piece
Trade Terms: FOB
Min Order: 10/Piece
Pay Type: L/C

Product features
Features of the Products:
IP64 rated, waterproof, dustproof, insect proof.
Samsung 5630SMD, internal driver, aluminum driver box for heat dissipation.
80% more energy saving compared with conventional lights
Special surface design for heat dissipation
Certificate: UL CUL TUV SAA RoHS
Beam Angle: 360 degree
Applications:
Warehouse, indoor lighting, street landscape.
Conference / Meeting rooms/  Commercial Complexes
Residential / Institution Buildings/ Schools, Colleges / Universities
Places where need energy saving and high color rendering index lighting
Part Numbers Note:
Part NumberDescription
PT-CE39-X80A-A00I¢*L=105*380mm,242PCS SMD 5630 LEDs, AC100~300V, 50/60Hz,  360 degree, Aluminum +PC


 Note: X: W mean Natural White(CW)   CCT: 5600-7000K (2 grade:5600-6300k, 6300-7000k)
          T mean Daylight (PW)  CCT: 3800-4500K (2 grade:3800-4000k, 4000-4500k)
        L mean Warm White(WW)   CCT: 2700-3500K (2 grade:2700-3000k, 3000-3500k)
Technical Specifications:
ItemSpecificationsParameter
ElectricalInput VoltageAC100-300V
Power Consumption80±5%W
Power Factor>0.97/110V  ,
>0.94/220V ,
>0.9/277V,
Frequency Scope50/60Hz
Operating Temperature-20~50ºC
PhotometricSocket
type
E40,E39
Work EnvironmentIP64 use
Lighting SourceSAMSUNG  5630SMD LED
Beam Angle360°
Life span>35000h
Led qty242pcs
DimensionDimension¢*L =105*380mm
Net Weight (1pcs)1670g±10%
Small Box145*150*425 mm

Part NumberLumens
(LM)
Illuminance(lux)CRICCT
1m2m3m4m5m6m
PT-CE39-W80A-A00I8800±10%56626622018813487≥80a5600- 7000K
PT-CE39-T80A-A00I8400±10%55025021117312178≥80a3800- 4500K
PT-CE39-L80A-A00I8250±10%5382381991609966≥80a2700- 3500K
Notes: Tolerance of measurement of luminous intensity±15%
Package:
Part No.Net weight   Box                  Carton
Size (mm)Gross weight Pcs/boxSize(mm)Gross weightbox/carton
PT-C39-X80A-A00I1.67KgL425*W150*H1451.75Kg1L650*W350*H47516KG8





Note:
The warehouse must work under the right voltage according to the specification.
cut off the current before installation, and make sure the voltage is in right range ,
Recommend indoor use

Prod Model: PT-CE39-X80A-A00I
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lumens: 8800lm
Power Supply: AC
Color Temperature: Cool White
Lamp Body Material: Aluminum
Application: Garden
Certification: UL
With Light Source: Without Light Source
LED Chips Brand: Epistar
Power: 80W
Input Voltage: AC100-300V
Shenzhen Pearlighting Technology was founded in 2007, it was registered in HK and manufacture in Shenzhen. We are an independent company and specialized in the design, development, manufacture and supply of high performance LED Lamps.

Pearlighting Technology has a strong R&D team and experienced production workers and well-trained sales & marketing team. We have committed to provide high quality & innovative products as well as excellent customer service. Through the continued effort of all the staffs, we are now holding a great deal of market share in overseas market such as Europe, North America and South America, Middle East.

Pearlight's development strategy & philosophy is "Higher Energy-Efficiency, More Environmentallly Friendly", and dedicated to low carbon, high efficiency, energy saving and best service. We strive to provide best services and most reliable products for global customers.

We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
