Super Brightness 50W 8m LED Solar Street Light
| Price: |
US $ 330-350/Set |
| Trade Terms: |
FOB |
| Min Order: |
100/Set |
| Pay Type: |
L/C,T/T |
Product Description

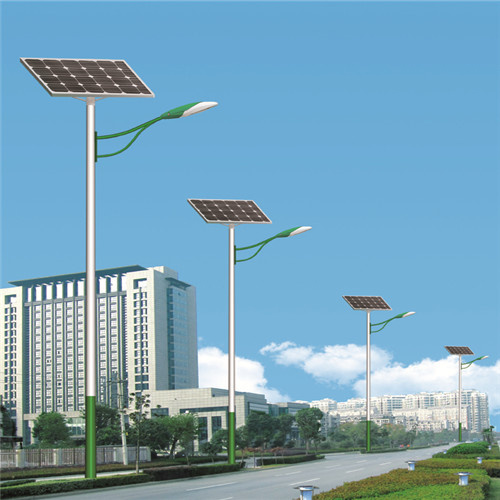

50W LED Solar Road Lights, with 8Mtrs Pole, Super Brightness
Model (JS-A2015010850)
1 Pole Height: 8M, Thickness: 3.50mm, resistant to wind: 150KM/H
2 Applicable light source: 50W LED, 5400LM,
3 PV Module: High efficient 100W*2PC
4 Gelled battery: 120Ah*2PC.
5. Battery Box, Engineer Plastic, Bury under ground.
6. Controller: 15A/24V Automatic control by microcomputer
7. Lighting hours: 11-12 Hrs/Day*3-4 days (Intelligent Controlled)
Getting more information on this 50W LED Solar Road Lights, mail or call us please.
Detailed Packing:
LED Light: Carton packing;
PV Panel: Carton and pallet packing;
Solar Battery: Carton and pallet packing;
Controller: Carton packing;
Pole and Brackets: Bubble wrap
Package Photos:
Our Service:
1. More Than 5 Years Producing And Exporting Experience.
2. Many Kinds of LED Solutions for longer lifespan and all kinds of lighting effect.
3. Our Sales Team Work Efficiency, and every design will based on your installed condition.
4. Our Solar Street Lights Have Successfully Been Applied In More Than 50 Countries
5. Except Video Installation Instruction, we can send our engineer to spot guidance, or teach yourengineer in our factory.
Detailed Specification for each Parts |
LED: 50W
Lamp Body: High-Pressure Die-Casting Aluminum. Corrosion Resistant
| LED Power-------------------------50W
LED Lighting Efficiency----------6000LM
Body Size----------------------------540*296*60mm
Lamp Efficiency---------------------> 92%
Central Illuminance---------------> 30LX
CT--------------------------------------5000-7000 (White)
Ra--------------------------------------> 75%
Power Factor------------------------> 0.95
IP----------------------------------------65
Working Temperature----------- -40° C---+60° C
Lifespan-----------------------------> 50000 Hours
G. Weight-----------------------------5.5KG |
Solar Gelled Battery
120Ah
| Nominal Voltage------------------12V
Number of cell ----------------------6
Design Life --------------------------5-8 years
10 hour rate(12.0A, 10.5V) -----------120Ah
Fully Charged battery 77° F(25° C)----4mΩ
Discharge ---------------------------------20~60° C
Charge ------------------------------------ -10~60° C
Storage ------------------------------------ -20~60° C
Size: ---------------------------------------- 406*172*210mm
Weight: -------------------------------------32.5Kgs.
|
Solar Panel: 100W
Adding Aluminum Frame, Tempered Glass.
A-class. | Silicon Type---------------------------------Poly
Size-------------------------------------------990*704*35mm
Cells-----------------------------------------60
N Weight------------------------------------8.5KG
Vmp-------------------------------------------17.2V
Imp--------------------------------------------5.81A
Voc----------------------------------------------21.6V
Isc-----------------------------------------------4.63A
Efficiency: ---------------------------------------≥ 15.5%
FF(%)----------------------------------------------70-72%
Operating temperature--------------------40° C to +80° C |
GI Pole System
8Metre | Pole Height-----------------------------------8M
Material----------------------------------------Q235,
Top Diameter----------------------------------80mm
Bottom Diameter-------------------------------185mm
Pole Thickness---------------------------------3.5mm
Painting: --------------------------------------Wanted Colour
8M Height Pole, Steel, Q235,
Hot-Dip Galvanized. Plastic Coated, Rust Proof,
With Arm, Bracket, Flange, Fittings, Cable, Etc
Resistant to Wind: ≥ 150KM/H |
Solar Controller
15A/24V Controller | Intelligent Micro-computer Controller
Automatic Light Control and Time Control System
IP Level ---------------------------------------IP68
Size---------------------------------------------81*60*22mm
N. Weight--------------------------------------0.16KG
Working Temperature: -20° C to 60° C
Over-charging/discharging Protection
Reverse-connection Protection
Switch on Automatically with Light Sensor;
Switch off after 11-12 Hrs later. |
Battery Box
| Material: Engineer Plactic, Bury under ground. |
| Cable, and Fittings | Cables From controller to Lamp to
Solar panel, solar batteries, controller.
Armoured cable, include eather-protective cable glands |
Applications
Solar Street Light; Solar Road Light;
Solar Path Light; Solar Parking Lot Light;
Solar Driving way Light; Solar Highway Light;
Solar Freeway Light; Solar Avenue Light;
Solar Sidewalk Light; Solar Remote Area Light;
Solar Military Bases Light; Solar Security Light
Solar Garden Light Solar Park Light
Solar Gate Light Solar Grave Light
Solar Entrance Light Solar Fence Light
Solar Campus Light
| Prod Model: |
JS-A2015010850 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lamp Luminous Efficiency(Lm/W:140): |
Lamp Luminous:5000k |
| Cell Type: |
Gelled or Lead-Acid |
| Designing Points: |
with Battery Bury Under Ground |
| LED Power: |
50W High Power |
| Power Supply: |
DC |
| Color Temperature: |
Cool White |
| Lamp Body Material: |
Aluminum Alloy |
| Application: |
Garden |
| IP Rating: |
IP65 |
| Certification: |
RoHS |
| Input Voltage: |
24v |
| With Light Source: |
With Light Source |
| LED Chips Brand: |
CREE |
| Power: |
50W |
