Home LED Light Products 2016 High Quality 90W LED Street Light with Competitive Price

2016 High Quality 90W LED Street Light with Competitive Price

2016 High Quality 90W LED Street Light with Competitive Price
Price: US $ 55-60/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T

                                2016 High Quality 90W LED Street Light with Competitive Price

         Jinshang Solar  Lighting Co.,Ltd is a professional manufacturer of 30-300W LED street light. Cooperating with CREE, LG, OSRAM, PHILIPS and Meanwell, we are able to assure our products with 5 years warranty. Applications of our LED street light are mainly in highway, street, square, park and other outdoor lighting places.

1.The Advantages of Our LED Road lamp:

 CREE LED  - with higher brightness, lower light decay and no lamp dead phenomenon
 Meanwell driver  - with stronger stability while long-time lighting and more efficiency
 Smart modular design  - modules quantity from 1 to 6, power supply from 30-300W
 Unique body design  - beautiful and avoids hydrops and dust-accumulation
 Exquisite Craft  - Stoving varnished shell and anodized heat sink improve corrosion resistance
 PLC smart system - Can be turn on and turn off automatically at dawn and dusk


2.Technical Parameters:
90W LED street light
Item No.: JS-A20158160-90W
Input Voltage AC100-277V
Freqency Range 50-60Hz
Power Factory >0.97
LED Driver Meanwell HLG-100H-42A
LED Consumption 90W
LED Chips CREE XT-E leds, 72pcs
LED Luminous FluxWarm White >8100 lm
Pure white >9000lm
Cool White >9000lm
Lamp's Efficiency ≥91%
View angle 155*80 degree
Color TemperatureWarm White 3000-3300K
Pure White 5500-5700K
Cool White 6500-6700K
Color Rendering Index Ra>70
Light Design LED+lens
LED Junction Temperature ≤150°C
Working Temperature -40°C~50°C
IP Grade IP65
Working Life-span 50000 H
Power Line 1.0 mm2 three-core wire
Connect WireBrown L
Blue N
Yellow/Green G
Driver Certificate CE,FCC,TUV,UL

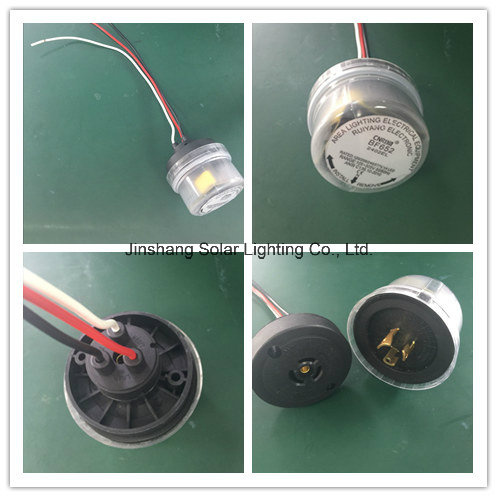

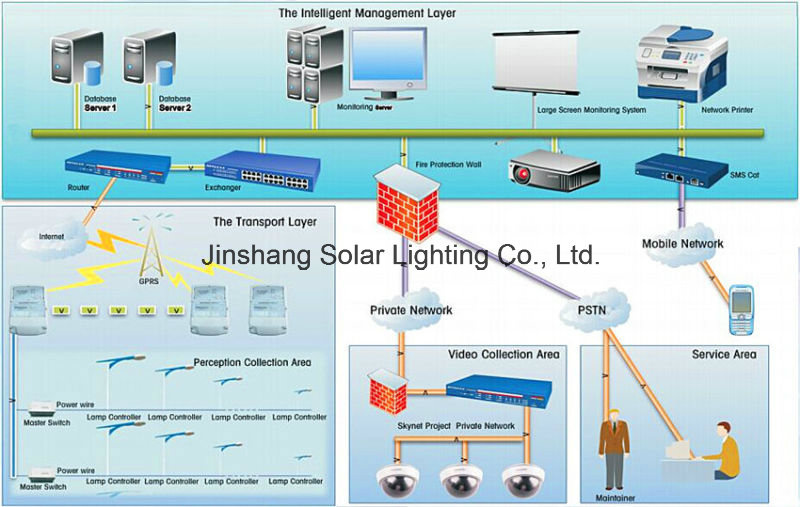

3.Introduction of PLC smart turning on-off system:

High Quality LED Street Light with PLC Smart System
High Quality LED Street Light with PLC Smart System

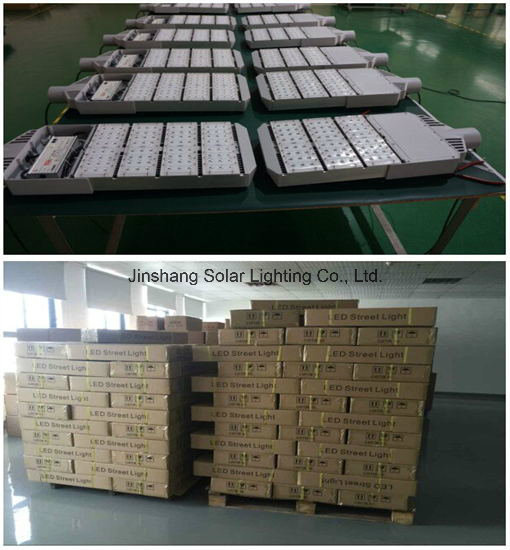

4.Production pictures of LED street light




5.LED streetlight /road light bring more benefits
1. Two LED Chip, More wide beam angle and high brigthess uniformity
1. Energy efficiency and Up to 60-70 % energy saving
2. Tough And Durable life > 50, 000.00 Hours and requires Minimum Maintenance
3. Good color rendering
Near natural color make people's visual comfort. NO glare beam.
4. Easy installation
IP65 design. Die cast and jet waterproof. Suitable for lateral mounting on mast arms of 40-60 mm
5. Environmentally friendly.
Do not have lead and any other contamination. No light pollution and air pollution
6. Dedicated faceted optics to optimize beam control and maximize light output
High Power LED street light make a new and cost-less choice!

6.Applications
Highways and parkways
Residential areas and pedestrian walkway lighting
Commercial areas and industrial complex
ModelJSJS2016-T40W-110W
Power Range30W  40w  50w    60w  70w  80w  90w  100w  110W
Voltage Range24VDC / 12VDC  Or  110VAC/220VAC/230VAC ( 85-265VAC)
Power Efficiency> 0.9
Power Factor> 0.98
Light efficiency> 90%
LED lumens130LM/W
Beam angle120° C
Color Rendering IndexRa> 75
Color Temperature (KELVIN)2700k~7000k
Working Environment-40° C ~55° C
Protection GradeIP66
Life Span> 50, 000.00 Hours
Net Weight10.00kg
Dimension   L*W*H(MM)692m m × 330mm× 140mm
Pipe Entry Mounting48-60mm






Prod Model: JS-A20158160
Light Luminous Efficiency: 80-120 Im/W
Height: 3-12m
Light Luminous: 3000k
Power Supply: AC
Color Temperature: Pure White
Lamp Body Material: Aluminum Alloy
Application: Garden
IP Rating: IP65
Certification: ISO
Input Voltage: 220v
With Light Source: With Light Source
LED Chips Brand: CREE
Power: 15-200W
Jinshang Solar Lighting Co., Ltd. is situated in Guoji industrial park of Yangzhou city, a Chinese famous historical city, which nearing the Jinghu high way in east, closing to Huning high way in south, approaching Ruiyang great bridge, with superior location and fast and convenient traffic. This is a large outdoor lighting production enterprise, integrating of design, research and development, manufacture, setting and service.

Now, we have over 300 stuffs, including over 50 technicians. Covering 20, 000 squares meters area, we have large numerical control bending machine, aluminum die-casting machine of 2000ton, hydraulic tensile machine, double powder electrostatic spraying line, automatic cutting machine, arc-submerging welder, gas welding, vehicle, and digging, drilling, bending and over hundred equipments. We have various products, such as die-cast aluminum lamp, cone-shaped, rhombic, variable diameter lamp pole, high pole lamp, combination lamp, garden lamp, high pressure sodium lamp, ballast and parts appliances

We hold the management principle of" strive for survival on the basis of quality, explore the markets on the basis of sincerity". The developing goal is to meet the requirements of our clients and to establish the brand effect of Jinshang. We implement the special technical activities and establish qualified archives in a long time, which is to improve and enhance our manufacturing technique. We also try our best to make our rules and regulations perfect. We will continue to warmly welcomes the communities to come to new and old customers visit our company and guide! The company mainly produces and sells various types of solar street lamp, wind solar hybrid street light, electric power street lamp, PV off-grid equipment, garden lamp, landscape lamp, pole lamp, project lamp, digital LED lights, lawn lamp, underground lamp, lifting pole lamp, cone-shaped and polygonal variable diameter steel pole, electrified rail pole, traffic bar, flagpole, various type of light source appliances, and other parts of ballast, trigger, light or time controller electrical appliances and so on, which widely applied in outside roads, squares, parking lots, wharf, garden etc.

Our company gets rich experiences in city lighting engineering which work in this field over 10 years. We are the enterprise of attaching importance to contract and credit in Jiangsu. We enjoined the reputation of quality reliable enterprise in Jiangsu as well as excellent enterprise of standardized implement. Our company rated AAA grad credit enterprise, and through ISO9001international quality system certification. The enforcement of product certification in nation as well as AAA grad, CCC, CCCC2, ISO14001 Certification of environment protection. We also own the third certification of street lighting engineering contractor. We also get the permission of safe production.

In 2015, Wuhan office Hubei, Jinshang lighting Co., Ltd and Lighting equipment, Yangzhou, Jinshang Co., Ltd. Invest to establish a 5000-square-meter solar PV production line together, which import the most advanced equipment of manufacture and testing in the world to make sure the high quality of solar PV module in the international field. The assembly line of solar PV manufacture the solar street light and Off-grid solar system whose products are popular both at home and abroad, such as Middle East, south America, Africa and so on.
