GDOT Overview

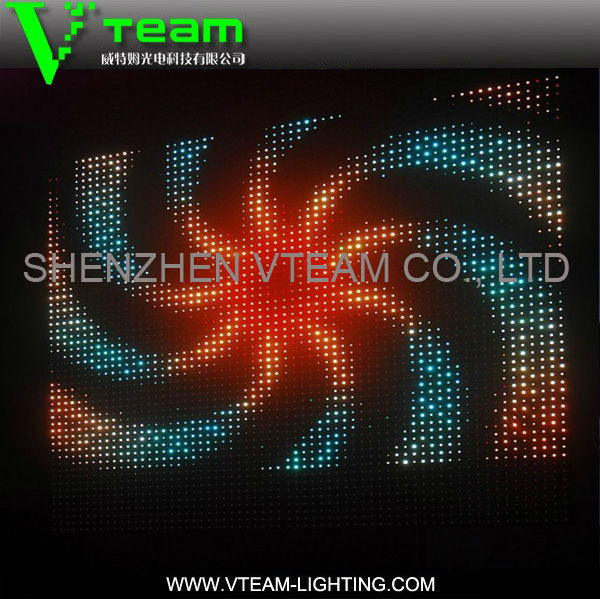

GDOT is a high transparent, soft full color LED display system. Its features are flexible installation, lightweight, highly transparent, which are adapted to various kinds of installation, such as bend, fold, winding, swing, etc. It is high artistry and creativity that can be free to assemble into various shapes. It is the best choice for the innovative design company.
Available pixle pitch: 35mm / 55mm / 80mm / 110mm / 160mm.
GDot features
Completely transparent material, Cool display effect.
Rich installation accessories, flexible installation, adapting to different scenarios.
A creative way to realize the ultra-thin double display and the thickness of whole screen is not more than 33 mm.
The rhombus display without additional parts creates the dreamlike effect for the world.
High permeability, go through light, air and smoke easily.
Realizing various irregular shapes without considering the restrictions of scenario.
It is best choice for the creative design company for its easier design and various applications.
Application
TV shows, live shows, stage background display
Party, stage lighting, vocal concert, beauty pageant competitions
Hotel, night clubs ceiling and floor decoration
Architectures lighting decoration
Module
|
gDOT-35 |
gDOT-40 |
gDOT-55 |
gDOT-80 |
Pixel Pitch
|
35mm |
40mm |
55mm |
80mm |
Pixel Density/sqm
|
816 |
625 |
330 |
156 |
Brightness
|
2200nit |
1500nit |
900nit |
420nit |
Max Power Consumption
|
370 W/sqm |
280 W/sqm |
150 W/sqm |
70 W/sqm |
Ave Power Consumption
|
180 W/sqm |
140 W/sqm |
75W/sqm |
35W/sqm |
LED Type
|
RGB 3in1 SMD3535 |
Viewing Angle
|
H140° V140° |
Refresh Rate
|
≥1000 Hz |
Gray Scale
|
12 bits |
Colors
|
687 Billion |
Control System
|
PC based dynamic capture & mapping. |
Lifetime
|
> 50,000 hours |
Input Voltage
|
AC 220V±10%, 50/60Hz |
|
Protection Level |
IP65 with led string , IP54 with signal distributor and power box
|
|
Working Environment |
Temperature -30degree~+50degree, Humidity 10-90%RH
|
|
Certification |
CE,ROHS
|
