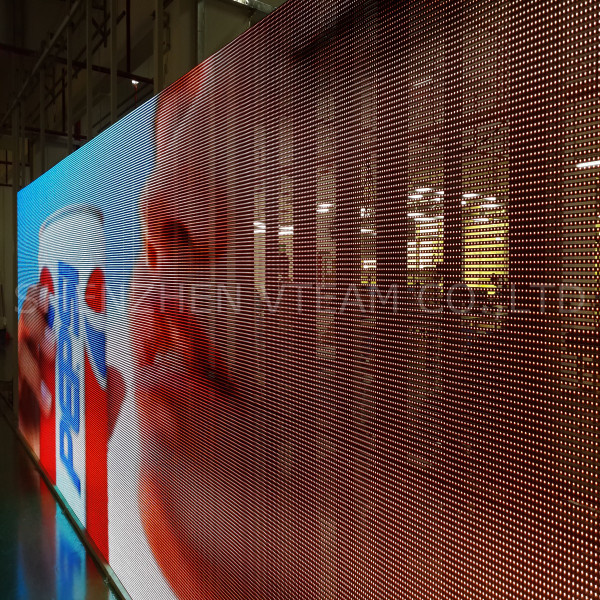

Cn10/12 is a light, thin and transparent products that very suitable for lighting rental and large square application.
Cn10/12 with the performance of light, thin and transparent are very suitable for application on entertainment areas, such as TV stage and clubs. It could be change colors and produce images. The display image are pretty clear, true and magic. Cn10/12 is the best choice for creative designing company to produce large square image.
Product Features
1. Light-weight. Saving shipping & labor cost.
2. Nice appearance, good solutions for the overall aesthetic feeling.
3. Jointed correctly, easy to install and dismount. No tool installation.
4. High transparency. Light, air and frost could easily cross through it.
5. Humanized operating interface with breakdown indicator lights.
6. High debugging brightness as 500-1500nit and no damage to gray scale, achieving the debugging technology with wonderful video show.
Item Name
| Cn10 | Cn10A | Cn12 | Cn12A |
Pixel Pitch
| 10.4166mm | 10.4166mm | 12.5mm | 12.5mm |
LED Type
| SMD3528 | SMD3535 | SMD3528 | SMD3535 |
Pixel Matrix/ panel
| 96x48 | 96x48 | 80x40 | 80x40 |
Brightness
| 900-1500 Nit | 4500 Nit | 900-1500 Nit | 4500 Nit |
Driving Mode
| 1/6 scan | 1/3 scan | 1/5 scan | 1/2scan |
Best Viewing Distance
| ≥10m | ≥10m | ≥12m | ≥12m |
Weight/panel
| 8kg | 10kg | 7.5 kg | 9.5 kg |
Max. Power Consumption
| 200W/panel | 300W/panel | 150W/panel | 300W/panel |
Ave. Power Consumption
| 80W/ panel | 100W/ panel | 60W/ panel | 100W/ panel |
Protection Level
| IP43 | IP65 | IP43 | IP65 |
Application
| INDOOR | OUTDOOR | INDOOR | OUTDOOR |
Transparency
| 50% | 50% | 55% | 55% |
Panel Size
| 500x1000x60mm |
Pixel Configuration
| RGB 3in1 |
LED Lamp/Chip
| Silar or Epistar |
Viewing angle
| 140°/140° |
Gray Scale
| ≥14bit |
Refresh Rate
| ≥1920Hz |
Color Space
| 687 billion |
Input Signal
| DVI,VGA,HD-SDI,S-video,Composite,YUV,etc |
Input Voltage
| AC 220V±10%, 50/60Hz |
Power Supply
| Meanwell or G-energy with UL certificate |
Display Media
| Video,graphic,animation,signage,cartoon,text,etc |
Control System
| YDEA(showbox),Nova,PC based dynamic capture & mapping. |
System Operating Platform
| WINDOW98/2000/XP/7/8 |
Working Environment
| Temperature: -10ºC~+50ºC, humidity: 10-90%RH |
Warranty
| Two years |
Lifetime
| > 50,000 hours(to>70% luminous output) |
Certificate
| CE&RoHs |
