Solar Lights Manufacturer for 30W LED Light
Price: |
US $ 570.00-580.00/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
50/Set |
Pay Type: |
L/C,T/T,Western Union |
30w Led Solar Road Lights,super brightness with SONCAP Certificated.
Model (6-8-10M-N3)
1 Pole Height: 6M, Thickness: 3.50mm, resistant to wind: 150KM/H
2 Applicable light source: 30W LED, 3600LM,
3 PV Module: High efficient 120W*1PC
4 Gelled battery: 120Ah*1PC.
5.Battery Box, Engineer Steel, hang on the pole.
6. Controller: 10A/12V Automatic control by microcomputer
7. Lighting hours: 11-12 Hrs/Day*3-4 days (Intelligent Controlled)
Getting more information on this 30w Led Solar Road Lights, mail or call us please.

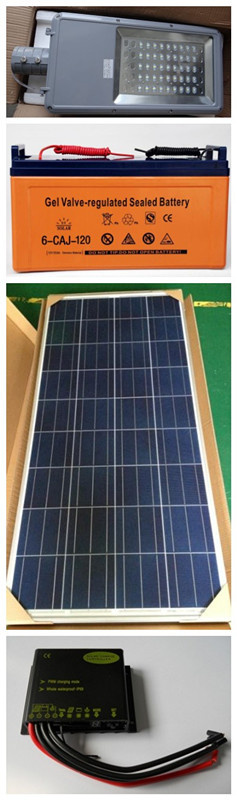

Parts Photoes:
Detailed Packing:
LED Light: carton packing;
PV Panel: carton and pallet packing;
Solar Battery: carton and pallet packing;
Controller: carton packing;
Pole and Brackets: bubble wrap
Our Service:
1.More Than 10 Years Producing And Exporting Experience.
2.Many Kinds of LED Solutions for longer lifespan and all kinds of lighting effect.
3.Our Sales Team Work Efficiency, and every design will based on your installed condition.
4.Our Solar Street Lights Have Successfully Been Applied In More Than 50 Countries
5.Except Video Installation Instruction, we can send our engineer to spot guidance, or teach yourengineer in our factory.
Applications
Solar Street Light; Solar Road Light;
Solar Path Light; Solar Parking Lot Light;
Solar Driving way Light; Solar Highway Light;
Solar Freeway Light; Solar Avenue Light;
Solar Sidewalk Light; Solar Remote Area Light;
Solar Military Bases Light; Solar Security Light
Solar Garden Light Solar Park Light
Solar Gate Light Solar Grave Light
Solar Entrance Light Solar Fence Light
Solar Campus Light

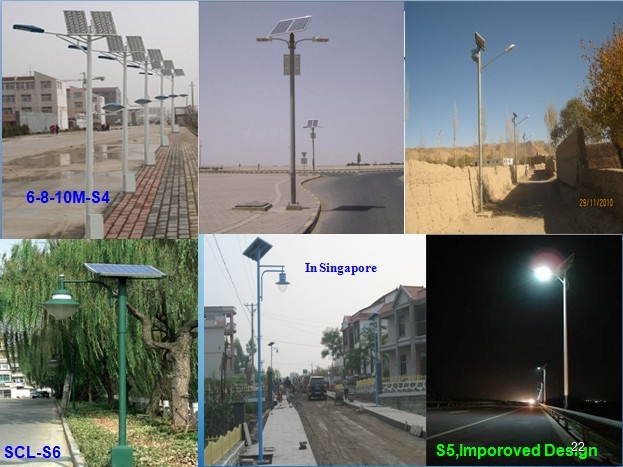

Partly Projects:
Specification for 6M 30w Led Solar Road Lights |
Part Name and Lifespan |
Technical Specification |
Solar Panel:
Lifespan:20-25 years |
120W*1PC Polycrystalline. High Efficiency. A-class
Adding Aluminum Frame, Tempered Glass. |
Gelled Battery
Lifespan:5-8 years |
120Ah/12V*1PC, Gelled battery, Sealed Type.
Deep cycle. Maintenance Free |
Intelligent Solar Controller
Lifespan:5-10 years |
10A/24V,IP65. Automatic Light and Time Control
Over-charging/discharging Protection
Reverse-connection Protection
Switch on Automatically with Light Sensor;
Switch off after designed Hours later.(11-12 Hrs) |
Light source: High Power LED
Lifespan: More than 50000-100000Hrs |
30WLED, White Color, Cree Chip, 3600LM/PC,6500K,IP65,High Power, High Brightness. |
Lamp Housing:
Lifespan: More than 20 years |
Die-casted Aluminum, IP65
High transmittance & Density toughened glass, |
Battery Box: |
Engineer Steel, at the bottom of the pole. |
GI Pole System:
Lifespan: More than 20 years
|
6M Height, tapered Pole, Steel,
Hot-Dip Galvanized. Plastic Coated, Rust Proof,
With Arm, Bracket, Flange, Fittings, Cable, Etc
Resistant to Wind: ≥150KM/H |
Prod Model: |
6-8-10M-N3 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
Designing Points: |
with Battery Hang on The Pole |
IP Level: |
IP68, Against Big Rain or Flood |
Charging Time (',H): |
8 |
Usage: |
Street |
IP Rating: |
IP65 |
Certification: |
Soncap |
Light Source: |
LED Lamp |
Cell Type: |
Gelled or Lead-Acid |
Voltage: |
24V |
Yangzhou Bright Solar Solutions Co., Ltd., Established in 1997, an ISO 9001: 2000, TUV, IEC, CE&EN, RoHS, SONCAP, CCPIT, SASO and CCC approved manufacturer.
Overseas Exploration and Popularity:
We had successfully sold our solar street lights and solar panels to overseas markets more than 50 Countries such as the USA, Canada, UK, Greece, France, Italy, Australia, Turkey, Jordan, Saudi Arabia, Iraq, UAE, India, Philippines, Pakistan, Cambodia, Taiwan, Nigeria, Ghana, Congo, South Africa, Mexico, Haiti, etc.
For the Future:
With advanced manufacturing & testing equipments, our factories are growing better and better. We hope to cooperate with more partners and distributors to develop more business to create prosperous win-win partnerships. OEM is available. Welcome your inquiry mail or call.
Main Products:
Solar Street Lights & Solar Street Lighting & LED Solar Street Lighting;
Solar Garden Lights & Solar Landscape Lights;
Solar Panel & Solar Modules.
Small Solar Home System & Solar Home Kits.
Attention: We are good at
1: Designing, producing, installing solar 10W-120W Solar LED street lights
2: Designing, producing 10W-240W LED Lamp for outdoor street and road using.
3: Producing solar panel below 310W
4. Solar Battery 7Ah-300Ah/12V
5. Solar Home Kits 3W-5000W System
OEM Service for solar lighting and PV panel is available.
Welcome your inquiry of solar outdoor lights and solar home lights.
