| Price: | US $ 670-700/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |

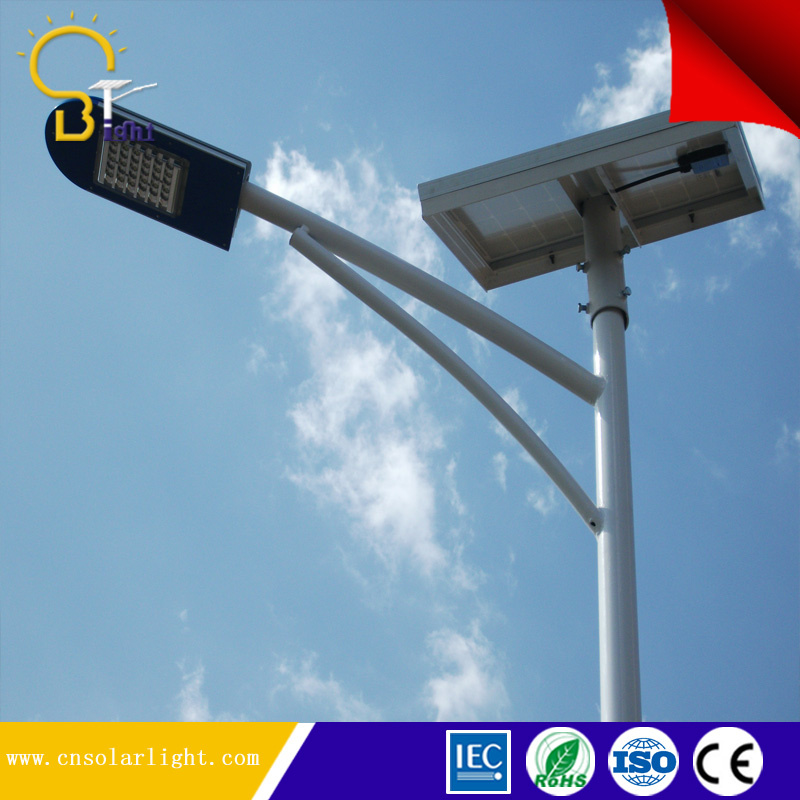

Selling Topic:Factory Price DC 36W LED Solar Powered Street Lights
BR SOLAR Solar Street Lamp Advantages:
Applied In More Than 50 Countries and Supplier of UN Project.
Brief Specification for DC 6M pole 36W Solar Powered Street Lights design based on average solar radiation condition 5.0KWH,Lighting hours: 11-12 Hrs/Day*3-4 days.
1. Pole Height: 6M, Diameter: 75*150mm, Thickness: 3.0mm
Plastic coated on HDG pole, resistant to wind: 150KM/H
2. Applicable light source: 36W LED, 4680LM,Lifespan:>80000Hrs.
3. PV Module: High efficient 150W*1PC.
4. Gelled battery: 150Ah*1PC, Fee Maintence, Deep Cycle, Sealed Type.
5.Battery Box: Engineer Plastic, Bury under ground
6. Controller: 15A/12V Automatic control by microcomputer
Detailed Specification for 6M pole 36W Solar Powered Street Light | |
Part Name and Lifespan | Technical Specification |
Solar Panel: Lifespan:20-25 years | 150W*1PC Polycrystalline. High Efficiency. A-class Adding Aluminum Frame, Tempered Glass. |
Gelled Battery Lifespan:5-8 years | 150Ah/12V*1PC, Gelled battery, Sealed Type. Deep cycle. Maintenance Free |
Intelligent Solar Controller Lifespan:5-10 years | 15A/12V,IP68. Automatic Light and Time Control Over-charging/discharging Protection Reverse-connection Protection Switch on Automatically with Light Sensor; |
Light source: High Power LED Lifespan: More than 50000-100000Hrs | 36W LED, White Color, 4680LM/PC,6500K,IP65, High Power, High Brightness. |
Lamp Housing: Lifespan: More than 20 years | Die-casted Aluminum, IP65 High transmittance & Density toughened glass, |
Battery Box: | Engineer Steel, hang on the pole. |
GI Pole System: Lifespan: More than 20 years
| 6M Height, tapered Pole, Steel, Hot-Dip Galvanized. Plastic Coated, Rust Proof, With Arm, Bracket, Flange, Fittings, Cable, Etc Resistant to Wind: ≥150KM/H |
Parts Pictures of 6M pole 36W Solar Powered Street Lights.
Working Principle of 6M pole 36W Solar Powered Street Lights.:
| 1 | Solar LED street light relies on solar energy, which is clean, endless and environment-friendly. |
| 2 | The system is mainly composed of solar panel, light source, controller and free-maintenance battery. |
| 3 | In daytime, when there is sunshine, the solar panel can convert the solar energy to electric energy and store it in the battery. At night or rainy or cloud condition, the battery shall supply power for normal lighting. |
| 4 | The controller can judge the brightness of daylight and automatically switch on the light. The whole process is operating in completely automatic mode, without human action. |
BR SOLAR Brief Introduction:
Yangzhou Bright Solar Solutions Co., Ltd., Established in 1997, an ISO 9001: 2000, TUV, IEC, CE&EN, RoHS, SONCAP CCPIT and CCC approved manufacturer.
Overseas Exploration and Popularity:
We had successfully sold our solar street lights and solar powered street lights to overseas markets more than 50 Countries such as the USA, UK, Canada, Germany, Spain, Greece, Italy, Sweden, France, Portugal, Cyprus, Romania, Croatia, Middle East, New Zealand, Fiji, Norway, Belgium, France, Italy, Australia, Turkey, Jordan, Iraq, UAE, India, Pakistan, Bangladesh, Qatar, Yemen, Singapore, Philippines, Cambodia, Nigeria, Congo, Mexico, etc.
Please note, our best competitive products:
10W-120W Solar Powered LED Street Lights;
10W-240W LED Lamp and LED Housing;
Solar Panel below 300W;
24Ah/12V~250Ah/12V&300AH/2V-3000AH/2V Solar Battery
After-sales Service
1. LED solar street lights should be used under normal condition. The warranty of the
quality is based on correct preservation, installation, usage and maintenance.
2. It's not included in the warranty scope if the products damage is due to improper
installation, product regulations violation or damaged by human.
3. For the quality problems during the warranty period, our company will choose the
best methods of repair exchange (parts) or replace the products and etc.
4.Some material cost, labor cost may be charged properly for extended service.
Applications Of 36W Solar Powered Street Lights:
| Solar Street Lighting System | Solar Street Lighting | Solar Street Lights |
| Solar LED Street Lamp | Solar Street Lamp | Solar Road Light |
| Solar Outdoor Light | Solar Highway Light | Solar Parking Light |
| Solar Avenue Light | Solar Pedestrian Street Light | Solar Sidewalk Light |
| Solar Pathing Light | Solar Military Bases Light | Solar Gate Light |
| Solar Path Light | Solar Park Light | Solar Parking Lot Light |
| Solar Campus Light | Solar Driving way Light | Solar Pedestrian Street Light |
| Solar Remote Area Light | Airport Solar light | Solar Driving way Light |
| Solar Lights | Solar Lighting | Solar Lamp |
Pls Enter www.cnsolarlight.com or http://light1978.en.made-in-china.com for more information about BR SOLAR marked Hot Sale BR-S1B Solar Powered Street Lights.
Pls send us more details about your purchasing,
Thank you for your time and attention.
| Prod Model: | BR-S1B Solar Powered Street Lights |
|---|---|
| Markets: | North America,South America,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Lamp Choosing: | 9W to 120W Solar Powered Street Lights |
| Pole Height: | 3m to 12m Solar Street Lights |
| Solar Panel: | Polycrystalline. High Efficiency |
| Solar Battery: | Gelled. Sealed,Deep Cycle. Maintenance Free |
| Charge Controller: | Automatic Light and Time Control,IP68 |
| Power Supply: | DC |
| Lighting Time: | 11-12hrs/Night |
| Quality Warranty: | 3years,5 Years |
| Average Life: | >8000h |
| Application: | Solar Powered Street Lights |
| Light Source: | LED Lamp |
| Lamp Body Material: | Aluminum Alloy |
| Light Type: | Solar |
| Color Temperature: | Cool White |
| Technics: | Electroplating |
| Illumination Time: | 6h |
| Charging Time (',H): | 6 |
| Usage: | Street, Main Road |
| IP Rating: | IP65 |
| Certification: | FCC,Saso,Pvoc,Soncap,CCC, UL, Iiso, FCC, EMC, GS |
| With Light Source: | With Light Source |
| Power: | 36W |
| Cell Type: | Gelled or Lead-Acid Battery |
| Voltage: | 12V |
