Topic:8M pole 60W Solar LED Street Lights With ISO9001 SONCAP PVOC Approved:
BR SOLAR Solar Street Light Advantages:
Applied In More Than 50 Countries and Supplier of UN Project.
Brief Specification for 8M pole 60W Solar LED Street Lights.
Design based on Africa's average solar radiation condition 5.0KWH,Lighting hours: 11-12 Hrs/Day*3-4 days.
1. Pole Height: 8M, Diameter: 75*180mm, Thickness: 3.75mm
Plastic coated on HDG pole, resistant to wind: 150KM/H
2. Applicable light source: 60W LED, 7200LM,Lifespan:>80000Hrs.
3. PV Module: High efficient 120W*2PC.
4. Gelled battery: 120Ah*2PC, Fee Maintence, Deep Cycle, Sealed Type.
5.Battery Box: Engineer Plastic, Bury under ground
6. Controller: 15A/24V Automatic control by microcomputer
7. Fittings
Detailed Specification for 8M pole 60W Solar LED Street Light | |
Part Name and Lifespan | Technical Specification |
Solar Panel: Lifespan:20-25 years | 120W*2PCs Polycrystalline. High Efficiency. A-class Adding Aluminum Frame, Tempered Glass. |
Gelled Battery Lifespan:5-8 years | 120Ah/12V*2PCs, Gelled battery, Sealed Type. Deep cycle. Maintenance Free |
Intelligent Solar Controller Lifespan:5-10 years | 15A/24V,IP68. Automatic Light and Time Control Over-charging/discharging Protection Reverse-connection Protection Switch on Automatically with Light Sensor; |
Light source: High Power LED Lifespan: More than 50000-100000Hrs | 60W LED, White Color,7200LM/PC,6500K,IP65, High Power, High Brightness. |
Lamp Housing: Lifespan: More than 20 years | Die-casted Aluminum, IP65 High transmittance & Density toughened glass, |
Battery Box: | Engineer plastic,underground of the pole. |
GI Pole System: Lifespan: More than 20 years
| 8M Height, tapered Pole, Steel, Hot-Dip Galvanized. Plastic Coated, Rust Proof, With Arm, Bracket, Flange, Fittings, Cable, Etc Resistant to Wind: ≥150KM/H |

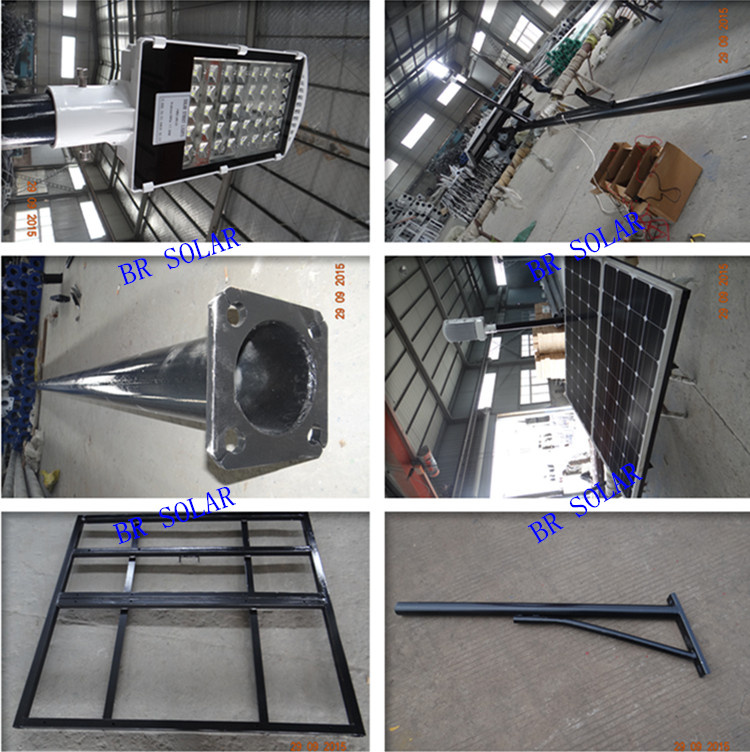

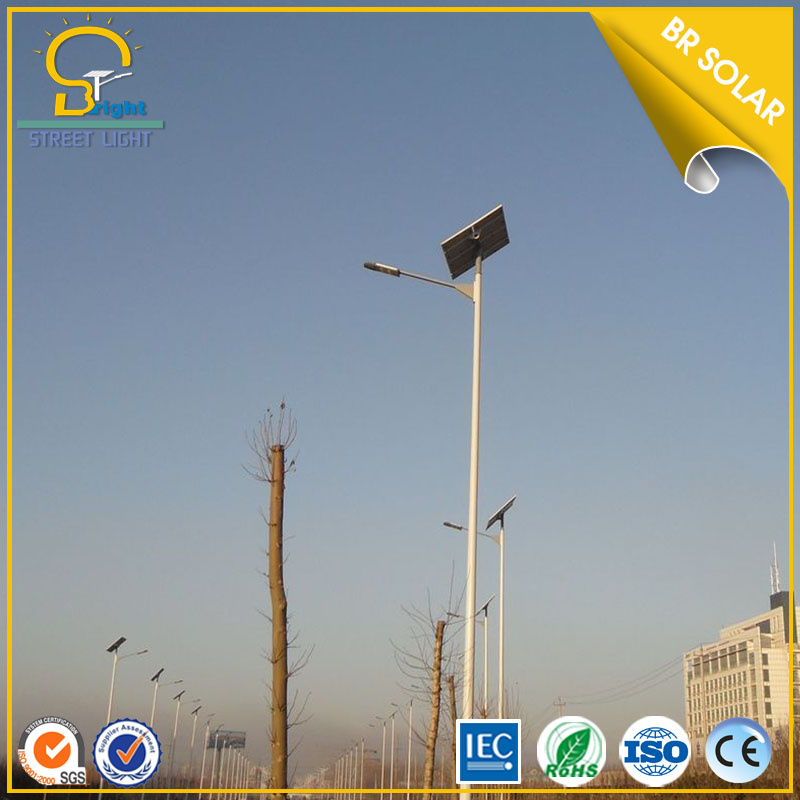

Reference Pictures 8M pole 60W Solar LED Street Light.

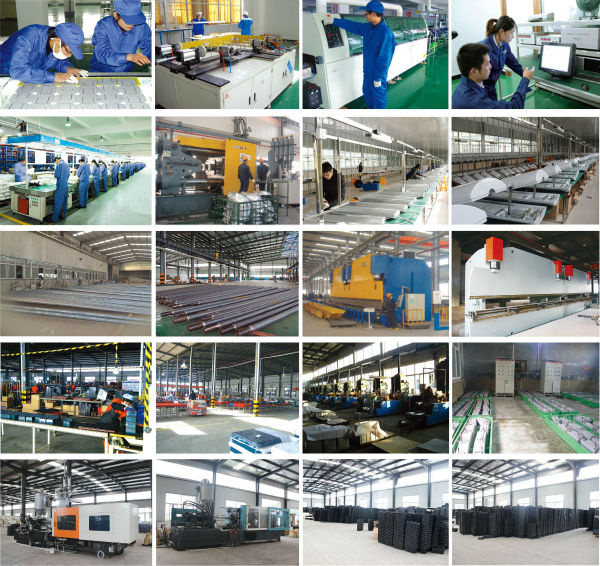

Producing Pictures For 60W Solar LED Street Lights:
Working Principle Of Solar LED Street Lights:
| 1 | Solar LED street light relies on solar energy, which is clean, endless and environment-friendly. |
| 2 | The system is mainly composed of solar panel, light source, controller and free-maintenance battery. |
| 3 | In daytime, when there is sunshine, the solar panel can convert the solar energy to electric energy and store it in the battery. At night or rainy or cloud condition, the battery shall supply power for normal lighting. |
| 4 | The controller can judge the brightness of daylight and automatically switch on the light. The whole process is operating in completely automatic mode, without human action. |
After-sales Service
1. Solar LED street lights should be used under normal condition. The warranty of the
quality is based on correct preservation, installation, usage and maintenance.
2. It's not included in the warranty scope if the products damage is due to improper
installation, product regulations violation or damaged by human.
3. For the quality problems during the warranty period, our company will choose the
best methods of repair exchange (parts) or replace the products and etc.
4.Some material cost, labor cost may be charged properly for extended service.
Please note, our best competitive products:
10W-120W Solar LED Street Lights and Solar LED Street Lighting System;
10W-240W LED Street Lights and LED Street Fixture;
Solar Panel below 300W;
24Ah/12V~250Ah/12V&300AH/2V-3000AH/2V Solar Battery
Applications Of 8M Pole Solar LED Street Light.
| Solar Street Lights | Solar Street Lighting | Solar Street Lighting System |
| Solar LED Light | Solar LED Street Light | Solar Garden Light |
| Solar Freeway Light | Solar Campus Light | Solar Avenue Light |
| Solar Pedestrian Street Light | Solar Sidewalk Light | Solar Gate Light |
| Solar Path Light | Solar Pathing Light | Solar Park Light |
| Solar Parking Lot Light | Solar Driving way Light | Solar Pedestrian Street Light |
| Solar Remote Area Light | Airport Solar light | Solar Street Lamp |
Pls Enter www.cnsolarlight.com or http://light1978.en.made-in-china.com for more information about BR SOLAR marked Hot Sale BR-S4 60W Solar LED Street Light and Solar LED Lights.
Pls send us more details about your purchasing,
Thank you for your time and attention.
| Prod Model: | BR-S4 Model 60W Solar LED Street Lights |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lamp Choosing: | 15W/24W/30W/42W/60W/70W/80W/100W/120W |
| Pole Height: | 3m to 12m Solar Street Lights |
| Solar Panel: | Polycrystalline. Monocrystalline .High Efficiency |
| Solar Battery: | Gelled Battery, Sealed,Deep Cycle. Maintenance Fre |
| Charge Controller: | Automatic Light and Time Control,IP68 |
| Power Supply: | DC |
| Lighting Time: | 11-12hrs/Night |
| Quality Warranty: | 3years,5years |
| OEM ODM: | Is Available 60W Solar LED Street Lights |
| Average Life: | >8000h,8000h |
| Light Source: | LED Lamp |
| Lamp Body Material: | Aluminum Alloy |
| Light Type: | Solar |
| Color Temperature: | Cool White |
| Power: | ≥30W |
| Technics: | Painted Matte |
| Illumination Time: | 12h |
| Charging Time (',H): | 6 |
| Usage: | Highway, Square, Garden |
| IP Rating: | IP65 |
| Certification: | FCC, Soncap, ISO,Pvoc,Saso |
| With Light Source: | With Light Source |
| Cell Type: | Gelled or Lead-Acid AGM Battery |
| Voltage: | 12V |
