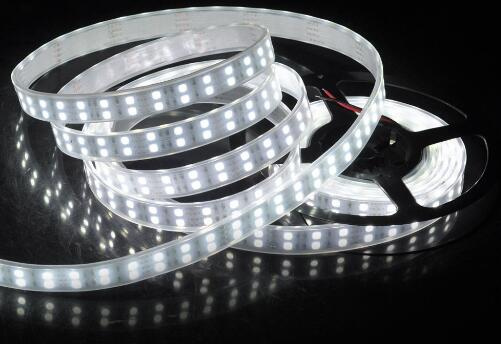

SMD5050 120LED/M LED Strip Light IP67

12V 120 led/m 5050 LED Strips, IP67 Energy Saving Flexible LED Strip Light For Outdoor
Energy saving strip LED lighting, waterproof for outdoor use, CE RoHs approval

Description:
Silicone tube encased waterproof IP67
5050 SMD LED as the light source
High Brightness, All single color
High luminance efficient and low power consumption
Easy Installation, 3M self adhesive tape in backside
The flexible LED strip can be divided by every three leds
Long Life over 50, 000 hours of usable life
CE RoHS compliant
With 2~3 Year Warranty

Specifications:
SSL-FS5050-120N Series of Silicone tube encased waterproof IP67
Dimension: 5000*10*3mm
LED Chip:  5050 SMD TOP LED
Emitting color: Red, Yellow, Blue, Green, warm white, cool white
LED Quantity: 120pcs/meter, total 600pcs
Material: FPC + Silicone tube encased
FPC color: Yellow, White, Black
Beam Angle: >120°
Working Voltage: DC12V / DC24V
Rated Power: 28.8W/m
Life Span: ≥50000 hrs,
Working Temperature: -25ºC~55ºC
Working Humidity: 10%~95%
Protection Degree: IP67
Packaging: 5m/roll

Part No.	Color	Descrip.	Size(L*W)	Watt	Led Q'ty	Volt	Packing	IP
SSL-FS5050R-120N-IP67	Red	5050LED	5000*10mm	28.8W/m	120led/m	12V	5m/roll	IP67
SSL-FS5050Y-120N-IP67	Yellow
SSL-FS5050B-120N-IP67	Blue
SSL-FS5050G-120N-IP67	Green
SSL-FS5050WW-120N-IP67	WW
SSL-FS5050W-120N-IP67	White



To cut and seal at one end, please follow the steps: A1 A2 A3 B1 B2
To cut and install waterproof connector at one end, please follow the steps: A1 A2 A3 C1 C2 C3 C4 C5
A1: Cut the light strip at the mark "scissors" or by every 3 LED's.
A2: Screw to open the glue cap.
A3: Use the thrust (another side of glue cap) to puncture the surface.
B1: Inject the silicon gel into the end cap without holes.
B2: Push the strip into the cap and let gel dry for 1 hour.
C1: Put the connector wire through the end cap holes.
C2: Solder the wire onto the PCB.
C3: After solder the two wires, push the strip into the end cap with wires carefully.
C4: Inject the silicon glue at the end of strip and cap.
C5: Make sure end cap and strip are connected well and let gel dry for 1 hour.

Accessories:

Connectors are necessary if you want to connect the cut sections together or connect a section to power. (Connector of strip to strip and connector of strip to power are both available)

Installation:

Waterproof flexible strips have the ability to produce continuous light connection for long distances while maintaining uniformity. They can be interconnected using connectors or cut in marked areas for shorter installation.

Package:
250meters/50rolls packed in one carton
Carton size: 52 x 26 x 28 cm


Applications:
1) Architectural decorative lighting
2) Archway, canopy & bridge edge lighting
3) Amusement park, theater & aircraft cabin mood lighting
4) Emergency hallway lighting
5) Auditorium walkway lighting
6) Stairway accent lighting
7) Concealed lighting
8) Backlighting for signage letters
9) Channel letter lighting
10) Cove lighting
