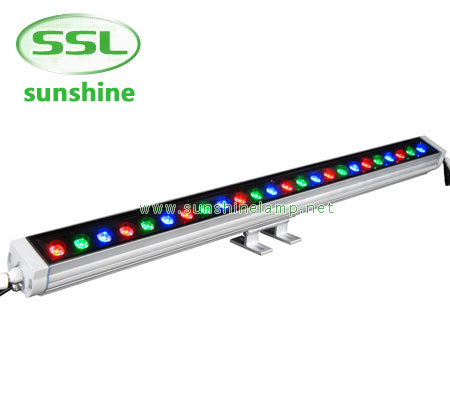

24 Watt Outdoor LED wall washer lights / Lighting
Easy to install, IP65 24W High brightness LED wall washer light CE,ROHS approved
Description:
· Die-casting aluminum housing
· AC85~265V input options
· Optical grade diffused lens
· Graduated angle scale
· Bridgelux LED and Meanwell driver
· Low emitted heat
· 120º beam projection
· Up to 70% energy savings
· 24w power consumption
· IP65 Ingress protection
· With a build-in stand alone function and master / slave mode available;
· RGB color mixing with or without DMX control;
· 64 sub-ID codes addressing panel available in one DMX address.
· Current protection to PCB panel and over-heat protection;
· CE, RoHS, TUV, UL compliant
· 3 Year Warranty
Specifications:
Electrical / Optical Characteristics (Ta=25ºC±3ºC)
Tech Date |
| |
Model | SSL-WL-24W-03 | |
LED Qty | 24pcs | |
LED Type | Bridgelux | |
LED Power | 24W | |
LED Color | Warm white, Pure white, Cool white | |
Input Voltage | AC85~265V | |
Frequency Range | 50Hz - 60Hz | |
Power Factor | >98 | |
Power Efficiency | >85% | |
Luminous Efficiency | 70~110LM/W | |
Color Temperature | WW | 2700-3500K |
PW | 4000-5500K | |
CW | 6000-7000K | |
CRI | WW | Ra>70 |
PW | Ra>75 | |
CW | Ra>75 | |
Lamp Efficiency | >85% | |
Lumens Output | WW | 1900lm |
PW | 2000lm | |
CW | 2100lm | |
Beam Angle | 120° | |
Working Temperature | -40ºC ~ +55ºC | |
Storage Temperature | -25ºC ~ +65ºC(25ºCbest) | |
Life span | >30000hrs | |
Certification | CE, RoHS, FCC | |
IP Grade | IP65 | |
Housing Color | Black | |
Net Weight | 2.9kgs | |
Dimension | 1000 x 72 x 72mm | |
package | 105*42*43cm (10pcs/box) G.W.:29kgs | |

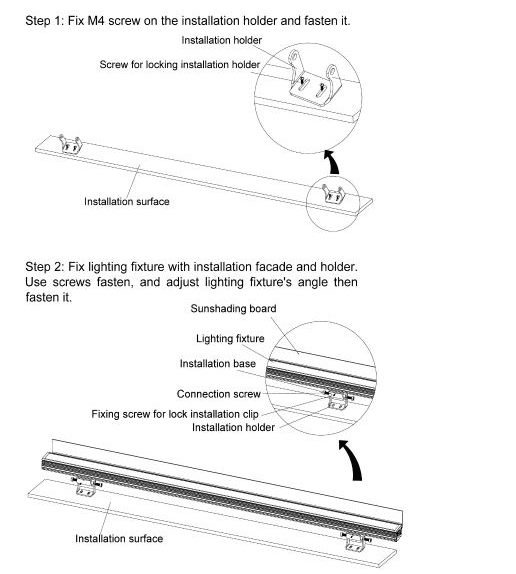

Installation Diagram
Applications:

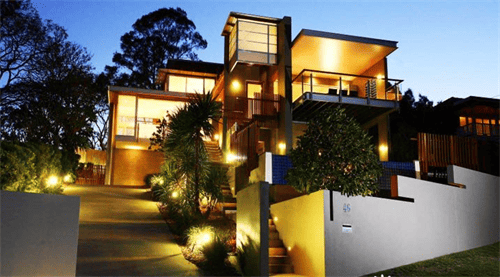

Widely used in .indoor and outdoor lighting and decoration for building outline,bar,dininghall, KTV, outdoor lighting advertising, Holiday decoration lighting, swimming pool.
| Prod Model: | SSL-WL-24W-03 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Range: | 50Hz-60Hz |
| Housing Color: | Silver |
| Net Weight: | 2.9kg |
| Dimension: | 1000 X 72 X 72mm |
| Package: | 105*42*43cm (10PCS/Box) G.W.:29kgs |
| Emitting Color: | RGB |
| Power: | 30W |
| IP Rating: | IP65 |
| Diffuser: | Tempered Glass |
| Beam Angle: | 60?? |
| Lifespan: | 30000 hours |
| Warranty: | 2 Years |
| Certification: | RoHS |
| Electric Current Type: | AC |
| Input Voltage: | 220V |
