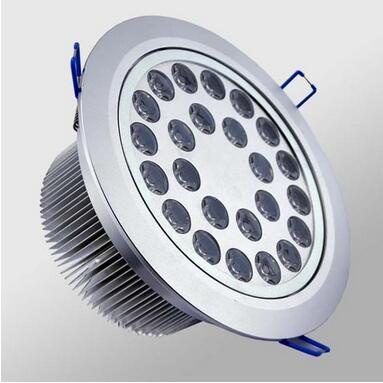

Home LED Light Products 2016 Newest 24W LED Down Lamp CE Recessed Ceiling Light

2016 Newest 24W LED Down Lamp CE Recessed Ceiling Light

2016 Newest 24W LED Down Lamp CE Recessed Ceiling Light
Price: US $ 18.06-18.26/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,Paypal,Western Union


 High Lumen 24Watt Recessed LED venture light , Ceiling Downlights With Cool White Lights
Quick Detail:

24W power consumption
Warm white Pure white Cool white
Luminous Efficiency 80-110Lm/W

Description:
CNC construction and 1060 Aero aluminum alloy housing
Germany FIN-design and thermal efficiency 60% improved
Cree/Edison/Epistar LED
AC85~265V input options
24W power consumption
Warm white Pure white Cool white
Luminous Efficiency 80-110Lm/W
Diffused lighting
Up to 70% energy savings
3 Year Warranty
CE RoHS TUV UL compliant


Specifications:

Electrical / Optical Characteristics (Ta=25ºC±3ºC)

Tech Date



Model

SSL-CL-24W-01

LED Qty

24pcs

LED Type

Cree Edison Epistar

LED Power

24W

LED Color

Warm white, Pure white, Cool white

Input Voltage

AC85~265V

Frequency Range

50Hz - 60Hz

Power Factor

>98

Power Efficiency

>85%

Luminous Efficiency

80~110LM/W

Dimension

180x70mm

Color Temperature

WW

2700-3500K

PW

4000-5500K

CW

6000-7000K

CRI

WW

Ra>73

PW / CW

Ra>78

Lamp Efficiency

>85%

Lumens Output

WW

2000lm

PW

2050lm

CW

2100lm

Beam Angle

30,60

(Cut-out)Hole size

160mm

Radiator Number

0.4mm x 42 pcs

Radiator Area

840cm²

Installation

Embedded

Housing Color

White

Working Temperature

-40ºC ~ +55ºC

Storage Temperature

-25ºC ~ +65ºC(25ºCbest)

Life span

35000~50000hrs

Certification

CE, RoHS, FCC

package

45*24*35cm (30pcs/box)


Curve of light distribution (Ta=25ºC±3ºC)

Installation Instruction:

pplications:

Widely used in the hotel, meeting room, offices, hospital, schools, factories, commercial lighting, shopping malls, supermarket.
Prod Model: SSL-CL-24W-01
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency Range: 50Hz-60Hz
Dimension: 180X70mm
Beam Angle: 30,60
Housing Color: White
Package: 45*24*35cm(30PCS/Carton)
Color Temperature: Cool White
Lamp Body Material: Metal
Source Number: Single Plug
Installation: Embedded
Lamp Installation: Screw Holder
Switch Type: Touch On/Off Switch
Warranty: 2 Years
Application: Commerical Places
Certification: RoHS
IP Rating: No
Sunshine Light is an established high-tech firm specialized in developing OEM and ODM LED lighting products manufacturer and exporter. We are quality manufacturer always produce high technology & high quality products years of our experience bringing us the advantages of LED lights got improved remarkably, such as more efficiency, environmentlally safe, longer life span, less power consumption. We can provide customer R&D in new product design, production, quality control with high standard products and services. We're especially well-placed in the field of Power LED thermal management and related lighting solutions.
