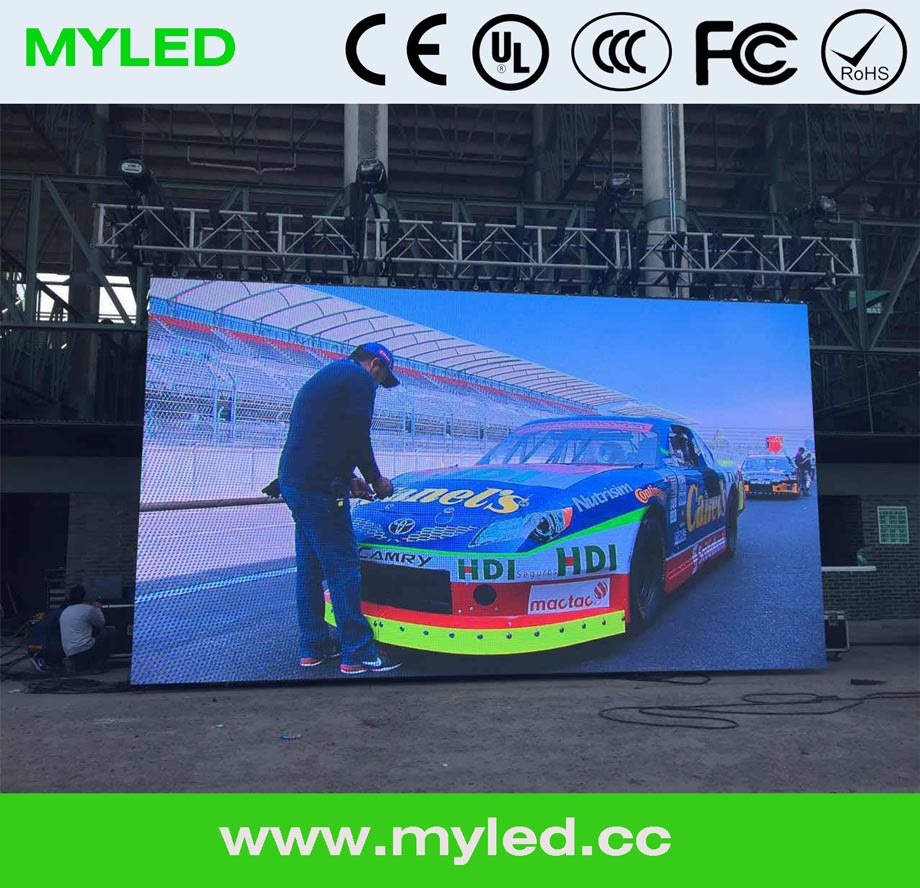

Slim Panel Oudoor P6 SMD 3535 LED Rental Screen/6mm Outdoor Rental LED Display
Advantages:
Safety. Using the low voltage DC so that no matter the elderly and children can safely operate without potential safety hazard.
Softness. Using PCB as the substrate and can apply to various advertising model requirements.
Long lifespan. The normal operating time is 100000 hours. If worked all the day long, it would work for at least 10 years.
Energy conservation and environmental protection. Using the environmental materials and low power (0.04W-0.08W) so that cannot result in waste and pollution.
Easily installation. Using attaching clamp, wire casing, iron wire, iron net and can install on all kinds of undertake surface. It can also be installed by the double-sided adhesive because of the light weight.
Pure color. Using the high bright SMT and the color is pure, downy and no glare.
Scale :
Our factory established in 2006,Gloshine is a prominent manufacturer of creative and high-end LED display.Our main products include indoor,outdoor,rental and fixed displays at various resolutions and structures.Our factory coversan area of 15000m² and we employ 500 staff members.The production lines give us a monthly output 4000m² displays.
Slim Panel Oudoor P6 SMD 3535 LED Rental Screen/6mm Outdoor Rental LED Display
Display and Control Feature | Structure Feature |
Items | Parameter | Items | Parameter |
Pixel Pitch | 5mm | LED module size | 192mm*192mm |
Pixel composing | 1R1G1B(3IN1) | Display resolution/module | 96 dots*96dots |
Wavelength (R) | 625±5nm | Standard cabinet size | 576*576mm |
Wavelength (G) | 522±2.5nm | Weight per sqm | 8.5 Kg/sqm |
Wavelength (B) | 567±2.5nm | Protection classification | IP65 |
Wave Angle (H) | 140°(H)/140°(V) | Install mode | Portable and moved |
LED package | SMD3535 | Cabinet Material | Aluminum Die-cast |
Density | 27777 | Working Power |
Display color | 256*256*256 | Specification | Parameter |
Whiteness brightness | ≥5500nit | Working voltage | AC 220v/380v±10% 47~64Hz |
Brightness level | 128 grade | Max power/sqm | 950W/sqm |
Changing frame frequency | 60 Hz | Average power/sqm | 400W/sqm |
Refresh | 1000 Hz | Short circuit protection | Yes |
Driving method | Constant current 1/4 scan | | |
Control mode | synchronous | Working Environment |
Display port | DVI | Specification | Parameter |
MTBF | >5000 hours | Environment | Indoor |
Out of control | 1/10,000 ( scattered) | Working temperature | --20~60°C |
lifetime | 100,000 hours | Working Humidity | 10~90% |
Application:Replacement of Indoor full color SMD P5 LED display, Advertising LED display,Rental LED screen,Stadium LED display,
LED sign,Stage LED Display,Mobile LED display,LED Video Wall,Traffic LED Display etc.
Modle No. | M5.95 |
Pixel Pitch | 5.95mm |
Pixel Configuration | 1R1G1B |
LED Encapsulation | SMD3535 |
Pixel Density | 28224dots/m² |
Brightness | 4000--4500nit |
Color Temperature | 3200--9500k |
Drive Mode | 1/7 |
Cabinet Size(W*H*D) | 500*500*70mm |
Cabinet Resolution | 84*84 |
Cabinet Weight | 9.0kg |
Max Pqwer Consumption | ≤720w/m² |
Average Power Consumption | ≤180w/m² |
Best Viewing Angle | H:140° V:140° |
Refresh Rate | 360--1000Hz |
Grey Scale | 14-16bit |
Best Viewing Distance | 8-50m |
Protection Level | IP65/IP54 |
Cabinet Material | Die-casting Aluminum |
Operation Voltage | 220v/50Hz,110v/60Hz |
Working Humidity | 10%-90% |
Working Temperature | -20ºC--+50ºC |
Located in Baoan District, Shenzhen Myled Optech is an professional LED display manufacturer which is dedicated to LED display R&D; Production, sales, marketing and one stop solution for customers mainland and international. Myled provides consulting, installation, training and sales services for customers. We always regard customers as the company life line.
Shenzhen Myled Optech focus on indoor and outdoor full color LED display, LED curtain display, mesh, indoor and outdoor single and bicolor LED display manufacturing. We have established business relationship with customers in South America, Euro, and Asia etc. And win a good reputation among customers all over the world. And we provide full solution for Government, Telecom, Hotel, airport, bus station, stadium, and cinema and financial center, etc. Over the past years, we have finished some important LED display project for South American and China Mainland.
Quality is the most important theme for Myled and welcome to contact, and visit our company.
We hold the truth that better quality, better price and better sales services are our company culture.
