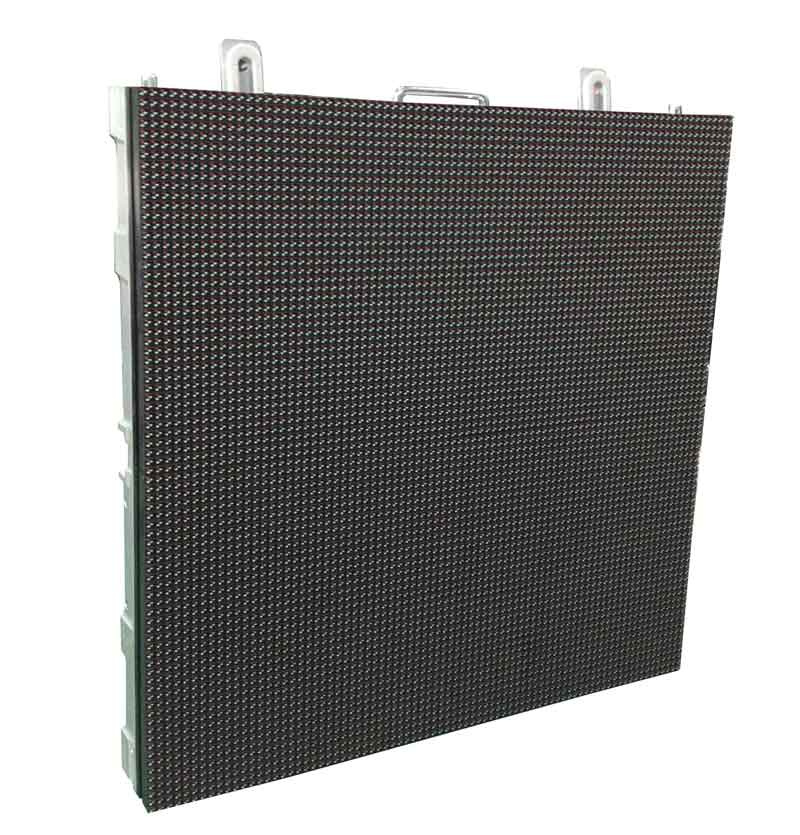

Outdoor Die Casting LED Display

Name: Outdoor Die Casting LED Display
Brand: yourledlight.com
SKU: 696446252
Availability: InStock
Rating: 4.8 (70 reviews)

Price:	US $ 100-2000/Square Meter
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Square Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Shenzhen Myled Optech Co., Ltd.

Showroom Product Company Profile

Products features:
Fully sealed design of waterproof and dustproof module;
Conduction cooling and mute of power;
Fast locks device--- Improving 80% of assembly speed;
Die-cast aluminum design, Lightweight,high intensity, high precision, unchangeable;
Support fixed and hanging installation method , Rapid to installation and disassemble,
Applicable to the stage rental.
Suitable Pixel pitch: P5.33, P5.926, P6.67, P8, P10;
Cabinet size: 640mm*640mm*65mm(100mm)
Weight: P5.926 12kg(up)/ 13.5kg(down);
Waterproof: IP65 front and rear;
Brightness: 6000cd/;
All general module 320*320mm for optional;
ModuleSpecification

Item	SpecificationParameter
Colortype	Realfullcolor
Modulesize	320*320mm
Pixelled	DIP246
Resolutionrate	40*40
Drivingway	1/8
DrivingIC	MBI5024
Workingvoltage	DC5V
Power	50W
Workingtemperature	-30ºC- +50ºC

ScreenSpecification

Item	Specification
Material	Die casting Aluminum
Color	Silvergray
Size	640*640mm
Resolution rate	80*80
Module quantity	2*2
Density	15625dots/
Whitebalanceluminance	6500-8000cd/
Color temperature	6500
Horizontal view angel	100
Vertical view angel	120
Protection grade	IP65
Non-Flatness	<1mm
Module interval	<1mm
Weight	19kg with power supply
Maximal power/	600W
Frame frequency	≥60Hz/s
Refresh frequency	400-1680Hz
Graygrade	1073741824
Luminance adjusted	256gradebyauto-optic/color &8 grade byhand
Input signal	RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc
Control system	PCTVnon-lineareditingcard+DVIdisplaycard+ main
MTBF	>5000h
Life-span	>100000h
Speckles rate	<0.0002

Prod Model:	P8 outdoor die casting led display
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Delivery Time:	Within 7 Days
Display Type:	LED Video Display
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Configuration:	1R, 1G, 1B
Certification:	ETL
Display Function:	Video Display
Scanning Mode:	1/4 Scan
Average Power Consumption:	600W / m²
Pixel Pitch:	P8
Application:	Rental
Pixel Density:	15625 Dots/Sqm

Located in Baoan District, Shenzhen Myled Optech is an professional LED display manufacturer which is dedicated to LED display R&D; Production, sales, marketing and one stop solution for customers mainland and international. Myled provides consulting, installation, training and sales services for customers. We always regard customers as the company life line.

Shenzhen Myled Optech focus on indoor and outdoor full color LED display, LED curtain display, mesh, indoor and outdoor single and bicolor LED display manufacturing. We have established business relationship with customers in South America, Euro, and Asia etc. And win a good reputation among customers all over the world. And we provide full solution for Government, Telecom, Hotel, airport, bus station, stadium, and cinema and financial center, etc. Over the past years, we have finished some important LED display project for South American and China Mainland.

Quality is the most important theme for Myled and welcome to contact, and visit our company.

We hold the truth that better quality, better price and better sales services are our company culture.
