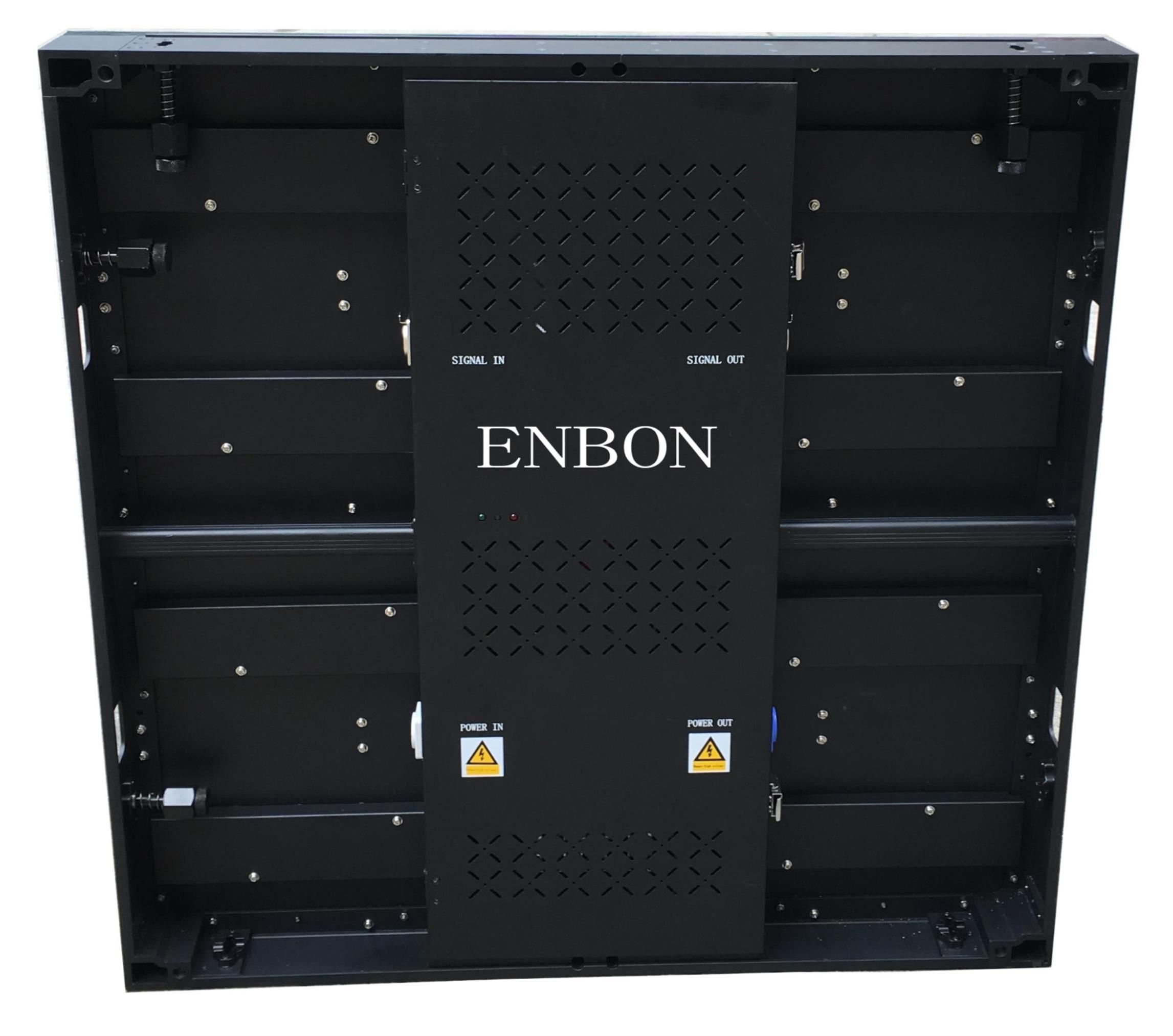

P5 indoor LED video wall display for Rental is ultra-thin and super light, each panel 480mm*480mm, we use special drive IC to reach high grey scale, high refresh rate and high brightness. This LED display board can show extremely clear and vivid image.
This led wall The new structure design enables diversified installation to meet the hanging-up and stacking requirements
Can be stacked on ground or hung on truss so it's good for both rental application or fixed installation.
Other advantages:
1. Die casting aluminum material, is precise, strong and light
2. High refresh rate by choose Linsn or Novastar control system.
3. We use black LED for higher contrast rate up to 9000: 1
4. User-friendly design, more convenient installation, more efficient and secure; High strength, high toughness;
5. We adopt rapid assembling sets which is beautiful and user-friendly
6. Good thermal design, excellent heat dissipation even no fan installation, very quiet.
7. The same size cabinet can be compatible with P3, P3.75, P4, P5, you can update your LED panel only by chaning the LED module
P. S IT CAN BE NORMAL INDOOR LED DISPLAY TOO, MUCH LOWER PRICES AVAILABLE HERE!
| Technical Prameters |
| model | Slim aluminum P5 640x640 mm LED screen panel display |
| Pixel pitch | 5mm |
|
| Pixel density | 40000 Pixels/sqm |
| Module size(W*H) | 320 W(mm)*160 H(mm) |
|
| Module pixels(W*H) | 64Pixels(W)*32Pixels(H) |
|
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving 1/16 scan |
| LED lamp type | SMD2121 |
| Cabinet size(W*H*D) | 640*640mm |
|
| Cabinet resolution | 96 Pixels(W)*96 Pixels(H) |
|
| Color scale | 65,536 degree |
| View angle(H/V) | 140/120 degree |
| Brightness (White balance) | ≥1400cd/sqm. |
| Power consumption(one cabinet) | Max:750W/sqm. Average:250W/sqm. |
| Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
| Net weight | 6.5Kg/Cabinet |
| Operating temperature | -20°C----+50°C (Customized power supply:-45°C---+60°C) |
| Operating humidity | 10%_95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.5mm Juncture |
| Frame frequency | >60 Hz/s |
| Refresh rate | ≥1500Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| Power | 110V/220V±15% 50--60Hz |
| Operating system | Windows 2000 / Windows Xp / Windows 7 |
| Protections for outdoor display | IP31 |
| Maintenance way | Rear Access or Front Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
