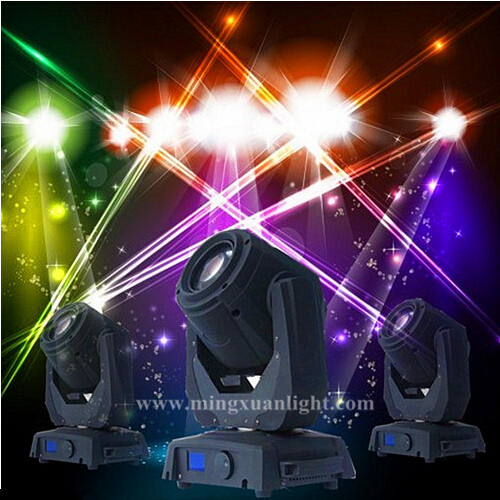

Sharpy 120w 2r moving head beam light
Unique Features
Sharpy 120w 2r moving head beam light
1. Voltage: AC110V-240V 50Hz
2. Philips 2R bulb
3. DMX512/13CHs
4.8-facet prism
Technical Parameter
Power Supply: AC110V-240V 50/60Hz
Power: 150W
Lamp: Philips 2R 120W
Channel: 13CH
Focus: Option focus
Lens: 3-Layer option glass lens
Size: 45*31*25cm
N. W.: 10KG
Specifiction:
Prism: 8 Prism rotation
Beam angle parallel beam angel: 0-3.8°
Fan
Gobo: 14 gobos+white
Double rotation rainbow effect
Colors 13 color+white, single rotation rainbow effect,
Control DMX512/WDMX mode 3in/5in XLR base
Master-slave mode
Sound activated mode
Stand-alone mode
Auto mode
Head movement: Pan 540o (16bit) Electric correction
Tilt 270o (16bit) Electric correction
With auto-correction function
Focus
Dimmer: Independent dimmer channel, 0-100% linear dimmer
Strobe: Independent strobe channel, 1-13times/s, speed adjustable
LAMP DMX ON/OFF: LAMP DMX ON/OFF, ignited by inverter, protect and lengthen the lifetime of the bulb
Effect pictures
Fair picture
Trade Term
MOQ: 1 PCS
Price Term: EXW, FOB
Lead Time: Sample order: 1-2 working days
Big order: 3-15 working days(depends on the order quantity)
OEM: Acceptable
Shipping method: By express(FEDEX, DHL, UPS), by sea, by air
Warranty: 1 year
WHY CHOOSE US
Mingxuan Stage Lighting (Guangzhou) Co., Ltd is a high-tech manufacturer which is specialized in producing and exporting moving head lights and laser lights. We have our own 1, 000 M2 standard production workshop, R and D center, strict quality control system and professional sales and marketing group. With technological innovation and excellent performance, Mingxuan moving head lights have won the high praise from customers who are from all over the world, especially 200W, 230W. We may not be the No. 1, but we always devote ourselves to providing a better option to customers. Let us stay together and make the win-win.
Customer Service
Dear customer, every product passes the quality inspection before shipment. If you find any problems with the product, Pls kindly to provide us the photos or video. That will help us figure out the problem as soon as possible. We always devote ourselves to be a better choice to customers. Your support is highly appreciated
Notice:
1. Our products is one year warranty period. Parts and technology will be offered for free.
2. Delivery time is 5-7 days after payment, the tracking number will be told when shipping.
MODEL NO.
|
YS-318
|
Power Supply
|
110V / 240V AC, 50/60Hz
|
Power Consumption
|
250W
|
LAMP SOURCE
|
Brand
|
For Philips
|
Type
|
UHP 132/120W
|
Output Lamp Power
|
120W
|
Color Temperature
|
8, 000 K
|
Average Life
|
2, 000 h
|
OPTICS
|
Lens
|
3-Layer HD Optics Glass Lens
(YILONG brand)
|
Beam angle
|
Parallel beam angel 0-3.8°
|
Focusing
|
Automatic focusing (Optional)
|
ZOOM
|
NO
|
| Light output | 55, 000 Lumens @ 10 meters (33 feet) |
COLOR SYSTEM
|
Color
| Color wheel with 13 colors + open
Single rotation rainbow effect
Two models changing (full color and half color operating) with color offset adjustment function
|
EFFECTIS SECTION
|
Gobo
| Gobo wheel with 14 gobos + open
Double rotation rainbow effect
High speed shake effect
Frost filter
|
Strobe
|
Mechanical shutter (1-13 times / s) and adjustable speed strobe effect
|
Prism
|
8-facet rotation prism
|
Mechanical Dimmer
|
Independent dimmer channel, 0-100% linear dimmer
|
CONTROL and PROGRAMMING
|
DMX
|
13 CH
|
DMX Protocol Signal
|
USITT DMX 512
|
DMX Signal Connection
|
3 or 5 pole XLR input and output
|
Control
| Master-slave mode
Sound activated mode
DMX mode
Auto mode
|
Display
|
LCD display
|
BODY
|
Body
| Two side handles for transportation
Device locking PAN and TILT mechanisms for transportation and maintenance
|
HEAD MOVEMENT
|
Head Movement
| PAN 540° (16bit) electric correction
TILT 270° (16bit) electric correction
With auto-correction function
|
ELECTRONICS
|
Electronics
| Pre-set macros
Function reset from the lighting desk
Lamp ON / OFF can be controlled by controller
Cooling system monitoring (ADDA Fan)
|
SAFETY DEVICES
|
Safety Devices
| Automatic break in power supply in case of overheating (100° C / 210° F) of cooling system
Forced ventilation with axial fans
|
WORKING POSITION
|
Working Position
| Any working position
With fast-lock Omega clamps (1/4 turn) on the base
|
PACKAGING
|
Light Body
| Measurement 31*25*45 cm
N. W. 10.2 KG
|
