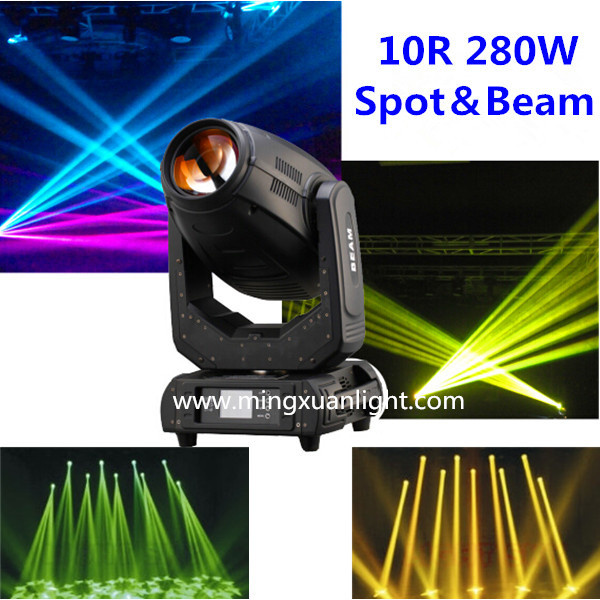

280 r10 beam spot wash 3 in 1 moving head light
Unique feature
280 r10 beam spot wash 3 in 1 moving head light
1) Lamp: Osram 280w
2) Channel: 16/24 channels
3) CE&RoHS
4) powerful beam
Technical Parameter
Voltage: AC100-240V, 50-60Hz
Lamp: 280W Osram 15R or YODN 15R
Color Temperature: 8000k
Life: 2000 hours
Control Channel: 16/24 DMX channels
Specification
Model Number: YS-323
Voltage: AC100-240V 50/60HZ
Light source: Osram HRI 280w Bulb
Power consumption :450W
Control mode: DMX512, master-slave, auto movement,sound control
DMX Channel: 16/24Channels
Features: unlimited focus and zoom, prism position, frost function
Color wheel: 1 color wheel with 13 colors plus white
Gobo wheel: 2 gobo wheels with 22 gobos plus white
Gobo size:14.5mm in diameter
Prism:3D 6-facet prism and 8-facet prism
Lens: high brightness optical lens
Focus: electronic focus
Dimming 0-100% linear dimming
Luminous flux 7950 lm
Up to 8000K color temperature
Horizontal / vertical angle: X axis 540 degrees, Y-axis 270 degrees
IP Protection: IP20 reliable high efficiency switching power supply
Control bulb on/off and reset with delay function
Display: LCD display
Trade Term
MOQ: 1 PCS
Price Term: EXW, FOB
Lead Time: Sample order: 1-2 working days
Big order: 3-15 working days(depends on the order quantity)
OEM: Acceptable
Shipping method: By express(FedEx, DHL, UPS), by sea, by air
Warranty: 1 year
WHY CHOOSE US?
Mingxuan Stage Lighting (Guangzhou) Co., Ltd is a high-tech manufacturer which is specialized in producing and exporting moving head lights and laser lights. We have our own 1, 000 M2 standard production workshop, R and D center, strict quality control system and professional sales and marketing group. With technological innovation and excellent performance, Mingxuan moving head lights have won the high praise from customers who are from all over the world, especially 200W, 230W. We may not be the No. 1, but we always devote ourselves to providing a better option to customers. Let us stay together and make the win-win.
Customer Service
Dear customer, every product passes the quality inspection before shipment. If you find any problems with the product, Pls kindly to provide us the photos or video. That will help us figure out the problem as soon as possible. We always devote ourselves to be a better choice to customers. Your support is highly appreciated
Notice:
1. Our products is one year warranty period. Parts and technology will be offered for free.
2. Delivery time is 5-7 days after payment, the tracking number will be told when shipping.
Product Name | 3d 280w 3in1 10r wash spot beam stage light(YS-323) |
| Model Number | YS-323 |
| Power Supply | AC110-240, 50/60Hz |
| Light Source | 10R PHILIPS lamp |
| DMX Channels | 16/22CHS |
| Power Consumption | 450W |
| Operation Mode |
DMX 512, Master/Salve, Sound activity and work auto |
| Colour Temperature | 8000K |
| Dimmer |
1-100% liner dimmer |
| Stroboscopic | 1-8 times/SEC |
| Beam Angle | 540 degree ( Pan angle ), 270 degree ( Tilt angle ) |
| Color Wheel | 13colors+open |
| Gobo wheel |
22 gobos + white, rainbow effect, shack function |
| Effect Wheel | 3 facet prism ,An atomizing mirror, positive and negative direction of rotation, and positioning function with prism. Focus, zoom. Liquid crystal display. Optical device,3 lens type lens group. |
| Packaging Details | Carton or Flight case |
| Net Weight | 20kg |
| Gross Weight | 23kg |
| Dimension | 33x45x48cm |
| Warranty | 18 months |
| Price term | EXW price |
| OEM or ODM service | Accept |
