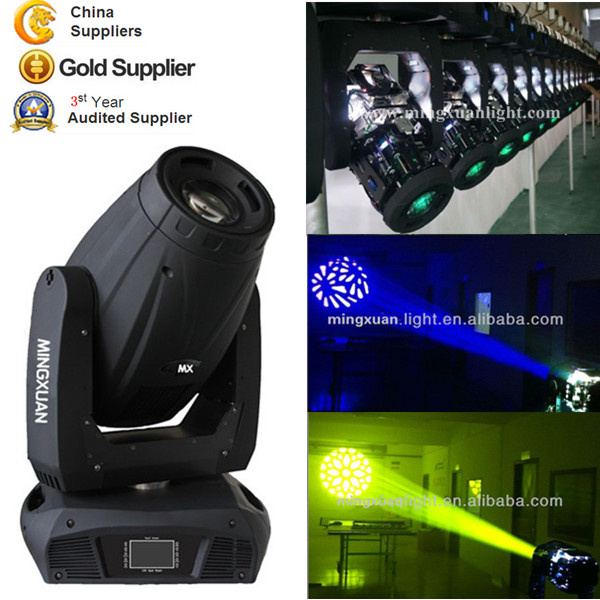

Sharpy 15r moving head light cmy 330w zoom
Unique feature
Sharpy 15r moving head light cmy 330w zoom
1) Lamp: Osram 330w
2) Channel: 32 channels
3) Beam/spot/wash 3in1 light
4) powerful function with CMY
Technical Parameter
Voltage: AC120-240V, 50-60Hz
Lamp: 300W Osram 15R or YODN 15R
Color Temperature: 8000k
Life: 2000 hours
Control Channel: 16/22 DMX channels
Effect pictures
Fair picture
Specification
Out put Lux: 10, 500lux at 20 meters
DMX Channels: 3 DMX Modes-21/23/34 Channels DMX
Control: 3-pin&5-pin DMX
CMY: CMY Color Mixing System
Lense: Anti-reflective coated lense
Color: 6 colors+open
Fix Gobo: 14 fixed gobos+open
Rotation gobo: 8 rotation goboes+open
Focus: Motorized Focus
Zoom: 9° To 27° Variable Zoom Beam Angle
Prism: 3 face prism and prism rotation and 16 prism macro
Dimmer: Mechanical Dimmer 0-100%
Strobe: Variable speed Shutter / Strobe
Iris: Motorized Iris
Pan/Tilt: Pan 540° , Tilt270°
Fixtures: Remote controller lamp's switch function, display light and lamp's using time
Structure: Heat-proof plastic+module pressing alloy materials
Trade Term
MOQ: 1 PCS
Price Term: EXW, FOB
Lead Time: Sample order: 1-2 working days
Big order: 3-15 working days(depends on the order quantity)
OEM: Acceptable
Shipping method: By express(FedEx, DHL, UPS), by sea, by air
Warranty: 1 year
WHY CHOOSE US?
Mingxuan Stage Lighting (Guangzhou) Co., Ltd is a high-tech manufacturer which is specialized in producing and exporting moving head lights and laser lights. We have our own 1, 000 M2 standard production workshop, R and D center, strict quality control system and professional sales and marketing group. With technological innovation and excellent performance, Mingxuan moving head lights have won the high praise from customers who are from all over the world, especially 200W, 230W. We may not be the No. 1, but we always devote ourselves to providing a better option to customers. Let us stay together and make the win-win.
Customer Service
Dear customer, every product passes the quality inspection before shipment. If you find any problems with the product, Pls kindly to provide us the photos or video. That will help us figure out the problem as soon as possible. We always devote ourselves to be a better choice to customers. Your support is highly appreciated
Notice:
1. Our products is one year warranty period. Parts and technology will be offered for free.
2. Delivery time is 5-7 days after payment, the tracking number will be told when shipping.
MODEL NO.
| YS-317
|
Power Supply
| 110V -240V AC, 50/60Hz
|
Power Consumption
| 350 W
|
LAMP SOURCE
|
Brand
| Osram 330W,1,500hr,8000k(Optional YODN R17 350W)
|
Power
| 350w
|
Color Temperature
| 8,000 K
|
Average Life
| 10,000 h (Eco mode)
|
CONTROL & PROGRAMMING
|
DMX
| 16/14/22 CHS channel
|
Control
| Master-slave mode
DMX mode
Auto mode
|
Display
| Color LCD display
|
OPTICS
|
CMY
| CMY Color Mixing System
|
Focus
| Motorized focus
|
Light Output
| 10,500lux at 20 meters
|
COLOR SYSTEM
|
Color
| 6 colors+open
|
EFFECTIS SECTION
|
Gobo
| Fix Gobo: 14 fixed gobos+open , Rotation gobo: 8 rotation goboes+open
|
ZOOM
| 9 ° to 27 ° Variable Zoom Beam Angle
|
Prism , frost
| 3 face prism and prism rotation and 16 prism macro
|
Color temperature correction
| 0-100% Linear Color temperature reducing system
Color Temperature Linear adjust from 2700-7200K
|
Body Size
| 65*48*45cm
|
Net Weight
| 28kg
|
HEAD MOVEMENT
|
Head Movement
| PAN 9°to 27°Variable Zoom Beam Angle
TILT 270° (16bit) electric correction
With auto-correction function
|
Guangzhou MingXuan Stage Light Equipment Factory is specialized in LED Stage Lightings, our factory located in Guangzhou, Guangdong province, welcome to contact us for details!
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.
Our factory has always insisted on relying quality to seek survival, benefit to seek development. Use fine after-sale service to meet the needs of consumers. Honesty and credit. Products are sold well all over our country. Warmly welcome all fields of friends to visit our factory and negotiate trade.
We have a group of professional and experience working team, and we have engaged in producing stage light for many years, with competitive price and excellent quality, our products are well received both at home and abroad.
We Are Specialized in The Production Of Stage Lighting. e. g. MOVING HEAD LIGHTS, LED MOVING HEAD LIGHTS, MOVING HEAD BEAM, LED WALL WASHER, LED EFFECT LIGHTIS, LED PAR, etc. Our company owns modernized factory and office. And we strictly sticks to ISO-9001 QMS Manufacturing standard to make sure Zero defect for products. In order to ensure products Function operate properly in different regions and climatic conditions; Each product from Design is passed the QC. Aging tests and the CE confirmation.
Company Culture: Professional, To Create A Wonderful Future.
Service Concept: Tireless Efforts, Forge Ahead And Innovation
We sincerely welcome new and old customers at home and abroad. Let us work together to develop the international market.
Welcome to order, we will serve you.
Our Company website: www.mingxuanlight.com
