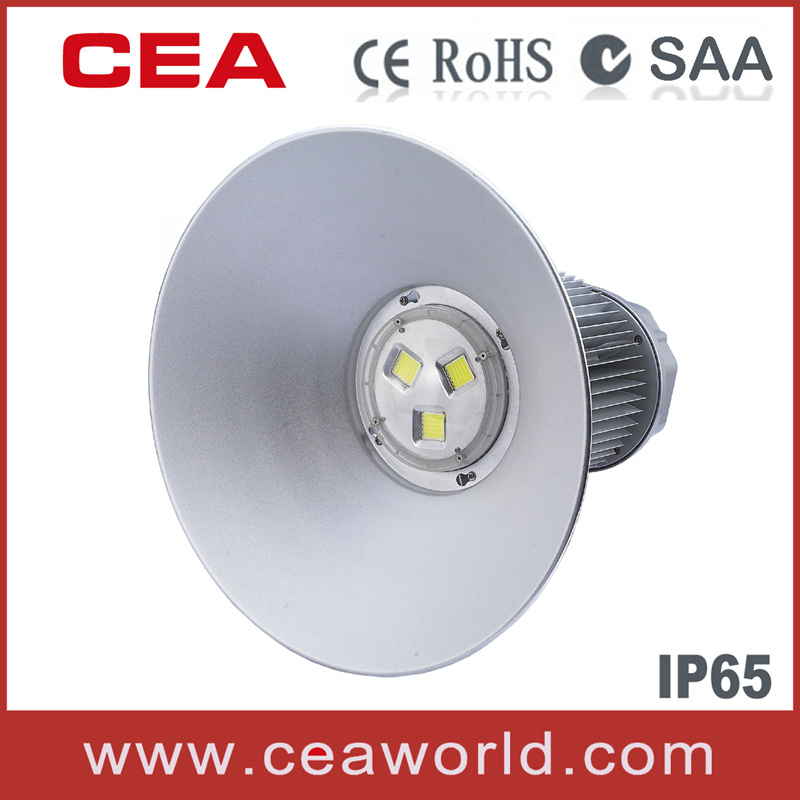

180W LED High bay light with CE \ Rohs \C-Tick\SAA UL certification
Specification
Power: 180W(3*60w)
System consumption: 185W
Luminious Effencicy: 80-90 Lm/W
Luminious Flux: 14400-16200 lm
CRI(Ra) >= 82
THD<5%
Power Factor >=95%
Power Effencicy >=90%
Input Voltage: AC 85-265V 50/60HZ
Beam Angle: 90/120 degree
Body Color: Silver/black
LED Source: Epistar / Bridgelux
Life Span: >= 50000 hours( led chip)
Technical Support: Dialux Design
Programme Support: Techinical team support
Warranty: 2~3 years (except broken)
IP Rating: IP65
Introduction
Materials
Patented fin aluminium heatsink structure; High quality aluminium processing technique; Special surface treatment process; High brightness LED light source, and high efficiency and long life power supply.
Applications
Suitable for Warehouses, Production and logistics workshops, Retail stores, Theme restaurants, Amusement parks, Indoor stadiums and public places, and other industrial and commercial lighting purposes.
Features
* Unique patented thermal management design to ensure low LED junction temperature.
* Extremely light weight for safety use and installation.
* Ultra high power to give ultra high brightness.
* Easy installation and maintenance, dust prevention, longer lifetime with high lumen maintenance.
* Energy savings, no UV and IR radiations, emits low heat.
* Wide range of operating temperature ( -300 C to +500 C ).
Structure
* Unique fin aluminium heatsink greatly reduce product weight and guarantee the safety usage, as well as to avoid the material wastage comparing with conventional die-cast or extrusion heatsinks.
* By increasing the number of fins to enlarge the area of heat dissipation and air flow, this new heatsink significantly increase the efficiency of thermal conduction with less material usage and more saving on energy. It is the best solution of LED high bay lights.
| HBL1-30 | LED power: | 30W |
| Voltage: | AC 85-265V |
| Frequency: | 50-60Hz |
| Luminous flux(Lm): | 2700Lm |
| Luminous efficiency: | 90Lm/W |
| Color temperature: | 2700-7000K |
| Beam Angle | 90° |
| 120° |
| CRI(Ra): | Ra>82 |
| Power factor: | ≥0.95 |
| Life span | >50000Hrs |
| HBL1-50 | LED power: | 50W |
| Voltage: | AC 85-265V |
| Frequency: | 50-60Hz |
| Luminous flux(Lm): | 4500Lm |
| Luminous efficiency: | 90Lm/W |
| Color temperature: | 2700-7000K |
| Beam Angle | 90° |
| 120° |
| CRI(Ra): | Ra>82 |
| Power factor: | ≥0.95 |
| Life span | >50000Hrs |
| HBL1-80 | LED power: | 80W |
| Voltage: | AC 85-265V |
| Frequency: | 50-60Hz |
| Luminous flux(Lm): | 7200Lm |
| Luminous efficiency: | 90Lm/W |
| Color temperature: | 2700-7000K |
| Beam Angle | 90° |
| 120° |
| CRI(Ra): | Ra>82 |
| Power factor: | ≥0.95 |
| Life span | >50000Hrs |
| HBL1-100 | LED power: | 100W |
| Voltage: | AC 85-265V |
| Frequency: | 50-60Hz |
| Luminous flux(Lm): | 9000Lm |
| Luminous efficiency: | 90Lm/W |
| Color temperature: | 2700-7000K |
| Beam Angle | 90° |
| 120° |
| CRI(Ra): | Ra>82 |
| Power factor: | ≥0.95 |
| Life span | >50000Hrs |
| LHB-120 | LED power: | 120W |
| Voltage: | AC 85-265V |
| Frequency: | 50-60Hz |
| Luminous flux(Lm): | 9600Lm |
| Luminous efficiency: | 90Lm/W |
| Color temperature: | 2700-7000K |
| Beam Angle | 90° |
| 120° |
| CRI(Ra): | Ra>82 |
| Power factor: | ≥0.95 |
| Life span | >50000Hrs |
| HBL1-150 | LED power: | 150W |
| Voltage: | AC 85-265V |
| Frequency: | 50-60Hz |
| Luminous flux(Lm): | 13500Lm |
| Luminous efficiency: | 90Lm/W |
| Color temperature: | 2700-7000K |
| Beam Angle | 90° |
| 120° |
| CRI(Ra): | Ra>82 |
| Power factor: | ≥0.95 |
| Life span | >50000Hrs |
| HBL1-210 | LED power: | 210W |
| Voltage: | AC 85-265V |
| Frequency: | 50-60Hz |
| Luminous flux(Lm): | 18900Lm |
| Luminous efficiency: | 90Lm/W |
| Color temperature: | 2700-7000K |
| Beam Angle | 90° |
| 120° |
| CRI(Ra): | Ra>82 |
| Power factor: | ≥0.95 |
| Life span | >50000Hrs
|
