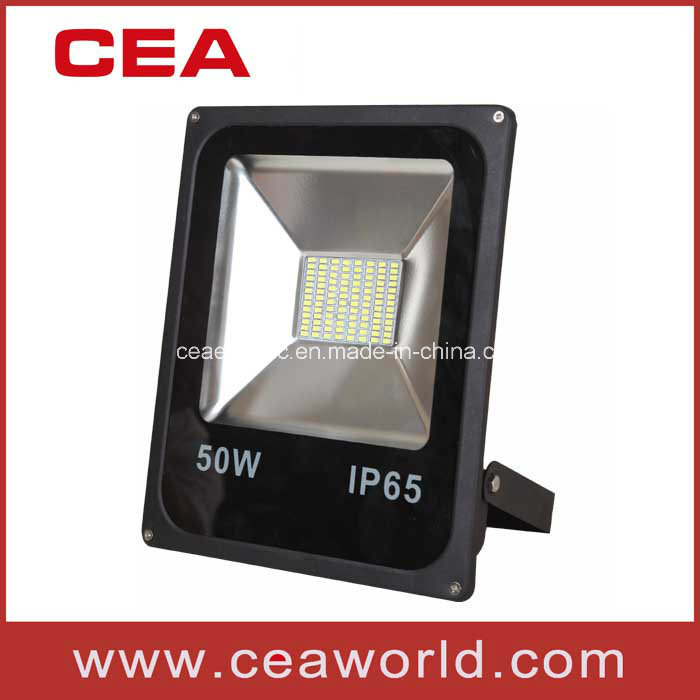

SMD2835 Slim Integrated LED Flood light 50W (SFL2-50)
CEA Group Electric mainly focus on LED Fittings R&D, items including LED floodlight, SMD LED floodlight, Slim LED floodlight, RGB LED floodlight, Portable LED floodlight, T8 LED tubes, LED high bay light, LEd street light, LED bulbs, LEd panel light, down light and ceiling light.
Specification:
Model:SFL2-50
Power:50W
LED: Epistar 2835SMD 100* 0.5W/pc
Input voltage:85~265V AC 50/60Hz
Luminous Flux:>4000lm
Luminous efficiency: 80~90lm/W
Protection Class: IP65
Beam Angle: 120 degrees
Color temperature:3500~ 7000K
Ra>72
Power factor>0.90
Span life>50000Hrs
Ambient temperatures: -40 to 50°C
Working humidity: 10% to 90%
Warranty : 2 years (except broken)
Technical Support : Dialux Design
Programme Support : Techinical team support
Features
1)SMD2835 chips imported from Taiwan,low power consumption, low light decay,high effciency,long service life.
2)Body Material:high quality aluminum die casting,corrosion resistant,anti-cracking,non fading color by stoving varnish.
3.) High purity aluminum radiator,severe convection design ensures excellent heat dissipation and long light source service life.
4.)High strength toughened glass with good transparency.
5.)Casting glue ensures excellent waterproof performance of driver,intelligent control circuit,over voltage and undervoltage protection.
6.)Environmental protection,no pollutin(No lead&mercury),no radiation,favorable to recycle.
7)protection grade:IP66
Application
1. Store, plaza, mall, supermarket and pedestrian street lighting.
2. Square, park, roadside, yard, lawn and garden lighting.
3. School, hospital, mansion outline lighting.
4. KTV, club, bar, hotel outline lighting.
5. Other indoor and outdoor occasions.
Our service
1. Your inquiry related to our products or prices will be replied within 24 hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM & ODM welcomed, our professional R&D dept. will realize your customized lighting.
4. Distributorship is offered for your unique design and some of our current models.
5. Protection of your sales area, ideas of design and all your private information.
Trade terms
1. Payment: 30% deposit, 70% balance before shipment by T/T or Western Union.
2. Lead time: 3-15days for normal order, instant delivery from regular inventory.
3. Sample: can be delivered within three working days.
4. Shipping freights are quoted under your requests.
5. Shipping port: Ningbo Port or Shanghai Air Port.
6. MOQ: 50 PCS.
7. Discounts are offered based on order quantities.
After-sales
1. We offer 1, 2, 3 and even 5 years warranty base on different price and products.
2. Any quality issue, we will replace for free within guarantee period.
3. Any accessories, we always support our customers.
Technical Parameters ( 10W / 20W / 30W / 50W )
SFL2-10 | LED power: | 10W |
| LED chip: | Epistar SMD2835 |
| Voltage: | AC 85-265V |
| Luminous flux(Lm): | 700Lm |
| Frequency: | 50-60Hz |
| Luminous efficiency: | 80Lm/W |
| Color temperature: | 2700-7000K |
| Beam Angle | 120° |
| CRI(Ra): | Ra>72 |
| Power factor: | ≥0.90 |
| Life span | >50000Hrs |
| Ambient temperatures | -40 to 50°C |
SFL2-20 | LED power: | 20W |
| LED chip: | Epistar SMD2835 |
| Voltage: | AC 85-265V |
| Luminous flux(Lm): | 1600Lm |
| Frequency: | 50-60Hz |
| Luminous efficiency: | 80Lm/W |
| Color temperature: | 2700-7000K |
| Beam Angle | 120° |
| CRI(Ra): | Ra>72 |
| Power factor: | ≥0.90 |
| Life span | >50000Hrs |
| Ambient temperatures | -40 to 50°C |
SFL2-30 | LED power: | 30W |
| LED chip: | Epistar SMD2835 |
| Voltage: | AC 85-265V |
| Luminous flux(Lm): | 2400Lm |
| Frequency: | 50-60Hz |
| Luminous efficiency: | 80Lm/W |
| Color temperature: | 2700-7000K |
| Beam Angle | 120° |
| CRI(Ra): | Ra>72 |
| Power factor: | ≥0.90 |
| Life span | >50000Hrs |
| Ambient temperatures | -40 to 50°C |
SFL2-50 | LED power: | 50W |
| LED chip: | Epistar SMD2835 |
| Voltage: | AC 85-265V |
| Luminous flux(Lm): | 4000Lm |
| Frequency: | 50-60Hz |
| Luminous efficiency: | 80Lm/W |
| Color temperature: | 2700-7000K |
| Beam Angle | 120° |
| CRI(Ra): | Ra>72 |
| Power factor: | ≥0.90 |
| Life span | >50000Hrs |
| Ambient temperatures | -40 to 50°C |
