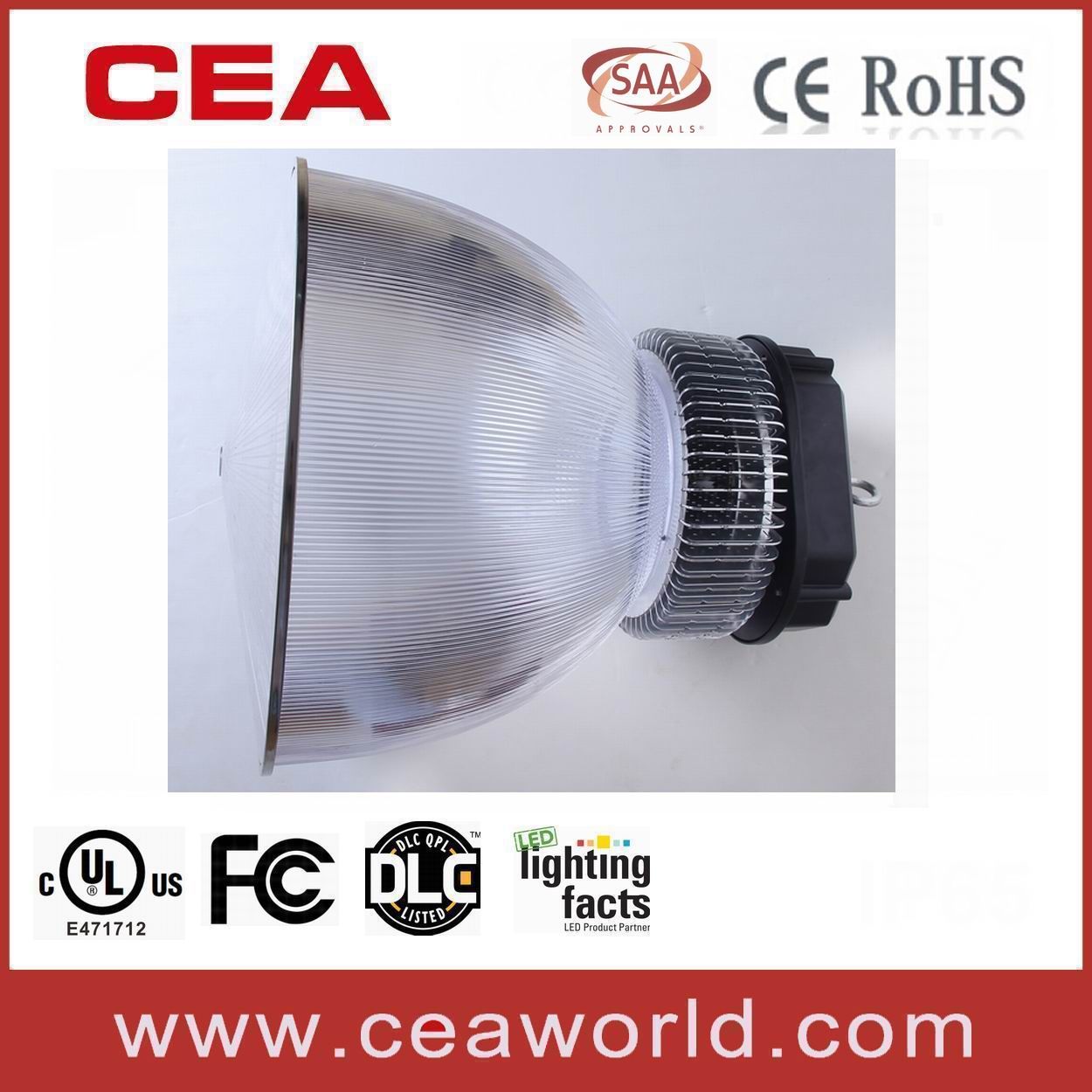

UL SAA CE RoHS Approved 150W LED High Bay Light with Bridgelux Chip and Meanwell Driver
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
150W LED High bay light with SAA \ UL \ CE \ RoHs \ C-Tick \CB certification
UL File No. E471712
SAA File No.141574
Specification:
Model : HBL1-150
Power : 150W(3*50w)
System consumption : 159W
Luminious Efficiency : 100-110 Lm/W
Luminious Flux : 15000-16500 lm
CRI(Ra) >= 82
THD<5%
Power Factor >=95%
Power Effencicy >=90%
Input Voltage : AC 85-265V 50/60HZ /AC100-277V
Beam Angle :45/60 90/120 degree
Body Color : silver/black
LED Source : Epistar / Bridgelux / CREE / Philips
Power Supply : Meanwell
Life Span : >= 50000 hours( led chip)
Technical Support : Dialux Design
Programme Support : Techinical team support
Warranty : 5 years (except broken)
Certification : SAA,UL,CE,RoHS,FCC,PSE,DLC
UL File No. E471712Introduction:
Materials
Patented fin aluminium heatsink structure; High quality aluminium processing technique; Special surface treatment process; High brightness LED light source, and high efficiency and long life power supply.
PC material Reflector and Aluminium Reflector is optional.
Applications
Suitable for Warehouses, workshops, Retail stores, Theme restaurants, supermarket, sport court, Amusement parks, Indoor stadiums and public places, and other industrial and commercial lighting purposes.
Features
* Unique patented thermal management design to ensure low LED junction temperature.
* Extremely light weight for safety use and installation.
* Ultra high power to give ultra high brightness.
* Easy installation and maintenance, dust prevention, longer lifetime with high lumen maintenance.
* Energy savings, no UV and IR radiations, emits low heat.
* Wide range of operating temperature ( -300 C to +500 C ).
Structure
* Unique fin aluminium heatsink greatly reduce product weight and guarantee the safety usage, as well as to avoid the material wastage comparing with conventional die-cast or extrusion heatsinks.
* By increasing the number of fins to enlarge the area of heat dissipation and air flow, this new heatsink significantly increase the efficiency of thermal conduction with less material usage and more saving on energy. It is the best solution of LED high bay lights.
Technical Parameters: | HBL1-30 | LED power: | 30W |
| Voltage: | AC 85-265V |
| Frequency: | 50-60Hz |
| Luminous flux(Lm): | 3000-3300Lm |
| Luminous efficiency: | 100-110Lm/W |
| Color temperature: | 2700-7000K |
| Beam Angle | 45/90° |
| 60/120° |
| CRI(Ra): | Ra>82 |
| Power factor: | ≥0.95 |
| Life span | >50000Hrs |
| HBL1-50 | LED power: | 50W |
| Voltage: | AC 85-265V |
| Frequency: | 50-60Hz |
| Luminous flux(Lm): | 5000-5500Lm |
| Luminous efficiency: | 100-110Lm/W |
| Color temperature: | 2700-7000K |
| Beam Angle | 45/90° |
| 60/120° |
| CRI(Ra): | Ra>82 |
| Power factor: | ≥0.95 |
| Life span | >50000Hrs |
| HBL1-80 | LED power: | 80W |
| Voltage: | AC 85-265V |
| Frequency: | 50-60Hz |
| Luminous flux(Lm): | 8000-8800Lm |
| Luminous efficiency: | 100-110Lm/W |
| Color temperature: | 2700-7000K |
| Beam Angle | 45/90° |
| 60120° |
| CRI(Ra): | Ra>82 |
| Power factor: | ≥0.95 |
| Life span | >50000Hrs |
| HBL1-100 | LED power: | 100W |
| Voltage: | AC 85-265V |
| Frequency: | 50-60Hz |
| Luminous flux(Lm): | 10000-11000Lm |
| Luminous efficiency: | 100-110Lm/W |
| Color temperature: | 2700-7000K |
| Beam Angle | 45/90° |
| 60120° |
| CRI(Ra): | Ra>82 |
| Power factor: | ≥0.95 |
| Life span | >50000Hrs |
| HBL1-120 | LED power: | 120W |
| Voltage: | AC 85-265V |
| Frequency: | 50-60Hz |
| Luminous flux(Lm): | 12000-13200Lm |
| Luminous efficiency: | 100-110Lm/W |
| Color temperature: | 2700-7000K |
| Beam Angle | 45/90° |
| 60/120° |
| CRI(Ra): | Ra>82 |
| Power factor: | ≥0.95 |
| Life span | >50000Hrs |
| HBL1-150 | LED power: | 150W |
| Voltage: | AC 85-265V |
| Frequency: | 50-60Hz |
| Luminous flux(Lm): | 15000-16500Lm |
| Luminous efficiency: | 100-110Lm/W |
| Color temperature: | 2700-7000K |
| Beam Angle | 45/90° |
| 60/120° |
| CRI(Ra): | Ra>82 |
| Power factor: | ≥0.95 |
| Life span | >50000Hrs |
| HBL1-210 | LED power: | 210W |
| Voltage: | AC 85-265V |
| Frequency: | 50-60Hz |
| Luminous flux(Lm): | 21000-23100Lm |
| Luminous efficiency: | 100-110Lm/W |
| Color temperature: | 2700-7000K |
| Beam Angle | 45/90° |
| 60/120° |
| CRI(Ra): | Ra>82 |
| Power factor: | ≥0.95 |
| Life span | >50000Hrs |
| Prod Model: |
HBL1-150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shining Area: |
100 Square Meters |
| Energy Saving: |
4 Times Saving |
| Base Material: |
Aluminum |
| Diffuser: |
Tempered Glass |
| OEM: |
Available |
| Luminous Efficiency: |
100-110 Lm/W |
| Luminous Flux: |
15000-16500 Lm |
| Input Voltage: |
AC 85-265V |
| Power Factor: |
> 0.95 |
| Lamp Body Material: |
Aluminum |
| IP Rating: |
IP65 |
| Certification: |
UL |
| Color Temperature: |
2700-7000k |
| Color: |
Silver / Black |
| Usage: |
Warehouse, Workshop, Sport Court, Gasoline Station |
| Beam Angle: |
60 / 90 / 120 |
