12 Watt Epistar 2835 SMD LED Round Panel Lighting, Embedded Panel Light Lamp
Round Panel LED light, 12 Watt 50000hours with 3 years warranty, CE RoHs certificated
Description:
- Imported LGP , the light guide light rate is 80% above
- Pure aluminum frame, bright silver processing, good heat dissipation, high-grade appearance
- The light even effect and no dark area, efficacy > 70 LM/W
- Isolation constant current power supply, input voltage: AC85-265V, output voltage: DC30-40V, security better
- High efficiency constant current driver can reach more than 90%,PF>0.92
- Unique design, Embedded installation without the accessories
- Up to 70% energy savings
- CE RoHS TUV UL compliant
- With 3 Year Warranty
Specifications:
Electrical / Optical Characteristics (Ta=25ºC±3ºC)
Tech Date | |
Model | SSL-RPL-12W-01 |
LED Qty | 30pcs |
LED Type | Epistar 2835 smd LED |
LED Power | 6W |
LED Color | Warm white, Pure white, Cool white |
Input Voltage | AC85~265V |
Frequency Range | 50Hz - 60Hz |
Power Factor | >92 |
Power Efficiency | >85% |
Luminous Efficiency | >70LM/W |
Dimension | 170mm x H20mm |
Color Temperature | WW | 2700-3500K |
PW | 4000-5500K |
CW | 6000-7000K |
CRI | WW | Ra>73 |
PW / CW | Ra>78 |
Lumens Output | WW | 840lm |
PW | 880lm |
CW | 1000lm |
Beam Angle | 120° |
Installation | Embedded |
Housing Color | Silver |
Working Temperature | -20ºC ~ +40ºC |
Storage Temperature | -25ºC ~ +65ºC(25ºCbest) |
Life span | 35000~50000hrs |
Certification | CE, RoHS, FCC |
Net Weight | 0.5kgs |
package | 38*33*45.5cm (20pcs/box) |

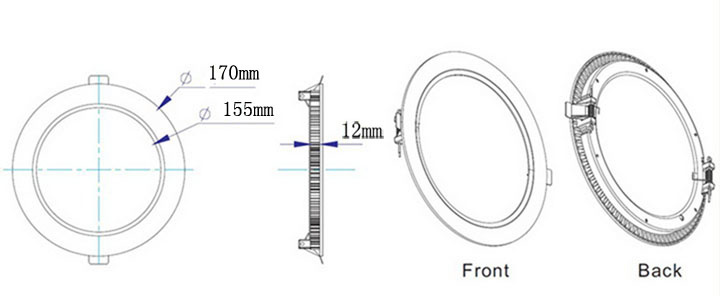

LED Panel light dimension (mm)

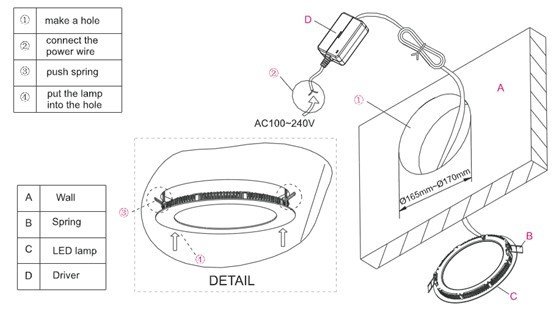

Installation Instruction:
Applications:
Widely used to office, factory, school, supermarket, warehouse, restaurant, meeting room, hotel, showing room, subway station etc.
