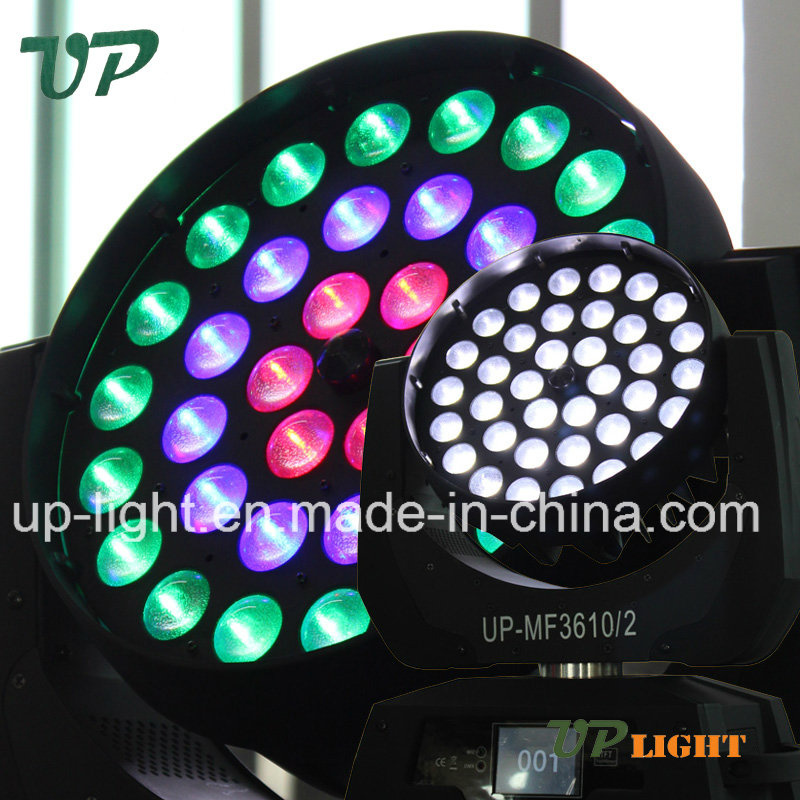

RGBW 36pcs 10w Aura Wash Led Stage Light Zoom
Input voltage: AC100~240V , 50~60Hz;
Rated Power: 400W;
LED lamp: 10W high power LED with long life 80000-100000 hours
LED Qty: 36 pcs Led with Red, Green, Blue, White 4 in 1;
LED Lamp powr supply: Adopt power factor correction PFC switching power supply, PF> 0.99, the efficiency of up to 90%, it's real green and environmental protection;
LED drive mode: Adopt static constant current drive mode with high precision and non-flicker (400HZ);
Control Mode: DMX512 signal 3-pins connection control, master-salve control or sound control with self-programming mode, self-running mode, extral control mode;
Channel: 12ch, 16ch two channel modes;
Color: Red, Green, Blue, White 4 in 1 full colors which is the most favorite color mixing way for lighting technician;
Lens: High optical transmission acrylic lens;
Zoom angle: 10°- 60° (standard angle);
Dimmer: 0~100% linear dimmer;
Strobe: Multi-function strobe effects from 1 to 25 times per second with the soft light function;
Material: Aluminum alloy plus plastic;
Maximum working terperature: 45°C
Maximum surface temperature: 60 °C
Application: Lighting for TV studio, theater, opera house, auditorium, stage, T-stage, concerts, and vocal concert,
DJ effect, disco effect, club effect, party effect etc;
Package size: 425×295×395mm
Gross weight: 9.5kg
| 20 Channels | 36 Channels | Function |
| CH 1 | CH 1 | Pan |
| CH 2 | Pan fine |
| CH 2 | CH 3 | Tilt |
| CH 4 | Tilt fine |
| CH 3 | CH 5 | Pan/filt speed |
| CH 4 | CH 6 | Marco function |
| CH 5 | CH 7 | Red 1 |
| CH 8 | Red 1 fine |
| CH6 | CH 9 | Green 1 |
| CH 10 | Green 1 fine |
| CH7 | CH 11 | Blue 1 |
| CH 12 | Blue 1 fine |
| CH8 | CH 13 | White 1 |
| CH 14 | White 1 fine |
| CH9 | CH 15 | Red 2 |
| CH 16 | Red 2 fine |
| CH10 | CH 17 | Green 2 |
| CH 18 | Green 2 fine |
| CH11 | CH 19 | Blue 2 |
| CH 20 | Blue 2 fine |
| CH12 | CH 21 | White 2 |
| CH 22 | White 2 fine |
| CH13 | CH 23 | Red 3 |
| CH 24 | Red 3 fine |
| CH14 | CH 25 | Green 3 |
| CH 26 | Green 3 fine |
| CH15 | CH 27 | Blue 3 |
| CH 28 | Blue 3 fine |
| CH16 | CH 29 | White 3 |
| CH 30 | White 3 fine |
| CH 31 | Color temperature 3200~10000k |
| CH17 | CH 32 | Color free integration |
| CH18 | CH 33 | Zoom |
| CH 34 | Zoom fine |
| CH19 | CH 35 | Strobe |
| CH20 | CH 36 | RGBW Dimming |
